ROBOT-20 transport system
20 metric tons

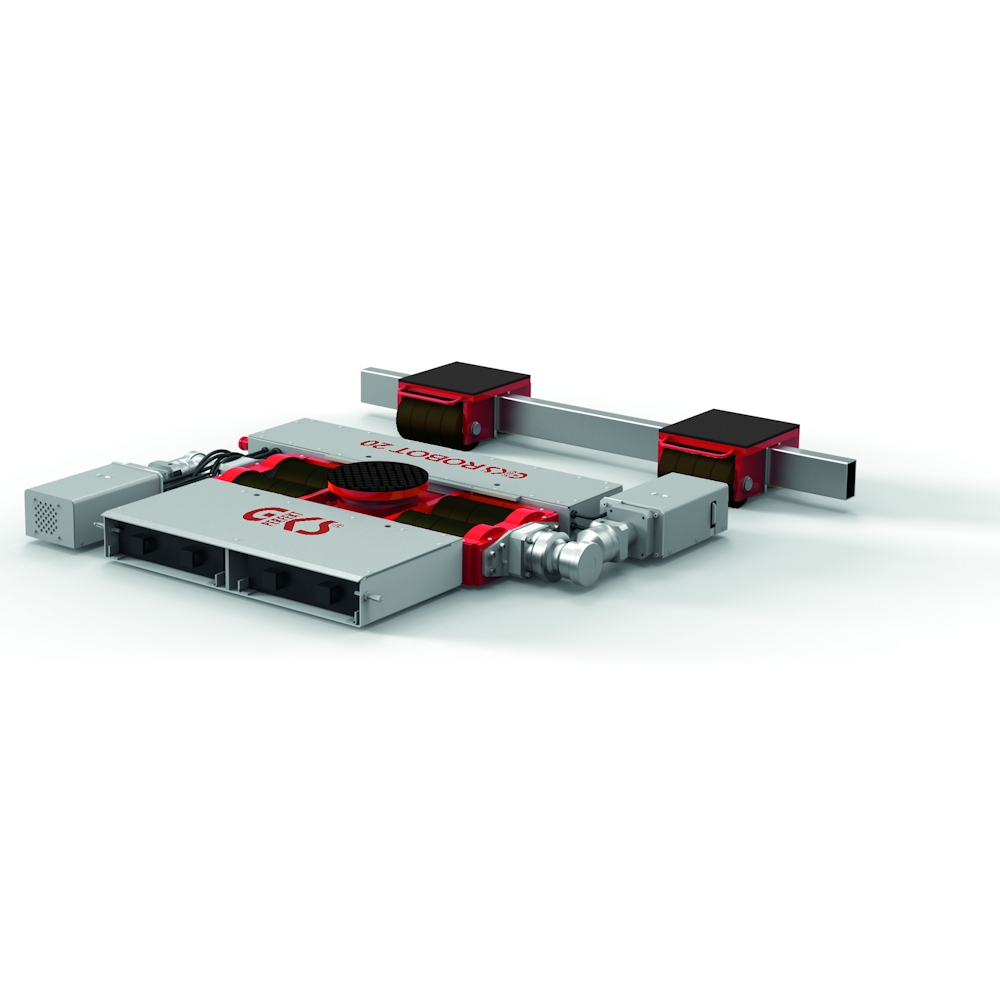

The transport system ROBOT-20

The ROBOT-20 transport system from GKS-PERFEKT is an outstanding battery-powered heavy-duty transport system designed for efficient and precise load transport in industrial environments. With a load capacity of up to 20 metric tons, the ROBOT-20 impresses with its outstanding performance.
Thanks to its remote-controlled operation , it enables easy and safe navigation even in tight workspaces. The ROBOT-10’s compact design makes it extremely maneuverable and versatile.
Thanks to its powerful battery, the ROBOT-20 is independent of external power sources, offering maximum mobility. The ROBOT-20 from GKS-PERFEKT combines power, precision, and reliability in an innovative transport system that significantly increases the efficiency of your internal transport processes.
Discover a new dimension of load transport with the ROBOT-20!


ROBOT-20 Overview

  • Features
    • The radio remote control transmitter is operated using two toggle switches for forward and reverse movement.

    • The travel speed can be controlled proportionally. The L-ROBOT can rotate in place while carrying a load.

    • Interference from other frequencies is detected, and the control system shuts down.

    • Options: Quick charger (4 hours), wall-mounted charging station, carrying case, set of replacement batteries, toe jack V15 with extended stroke (270 mm)
  • Technical Specifications

  		• L-ROBOT-10F-ROBOT-10
    Item Number1408014081
    DriveDC Motor (24V / 1000W)-
    Battery TypeLithium-ion-
    Reverse Parking Sensoryes-
    Max. incline **±3%
    		-
    Loading height in mm180180
    Number of special load rollers4 + 8 / 105 + 53 mm18 / 85 mm
    External dimensions (L x W x H) in mm1132 x 1312 x 180-
    Contact surface in mmø 250
    		275 x 266
    Adjustable spacer bar in mm-532–1600
    Load capacity in metric tons1010
    Total Load Capacity F + L in metric tons20
    Total weight in kg255,0115,0

    ** On inclines or declines, a suitable anti-rollaway device is required

  • Description
  • The drive power comes from a 24-volt lithium-polymer battery and is transmitted via a programmable motor controller to the two brushless DC motors, each with a maximum output of 1,000 watts.

    The torque is transmitted to the drive rollers via gearboxes and gear stages.

    The radio remote control transmits the operator's signals to the motor controller via a CAN bus, and the transmitter's display shows the current operating status.

    The entire system consists of a powered, steerable L-ROBOT and a non-powered, rigid F-ROBOT. It thus features a proven 3-point support configuration. The system operates at two travel speeds: 11 and 5.5 m/min.
  • Informational Video and More

  • More information: ROBOT-20

    Our ROBOTS in action... click here to watch the video

    ​Real-world application examples... see here

    An exploded view of the transport trolleys... is just a click away
