Hydraulic toe jacks
Load capacity from 5 metric tons to 30 metric tons
GKS-PERFEKT’s hydraulic toe jacks lift machines and heavy loads ranging from 5 to 30 metric tons—without a crane, without modifying the facility, and directly at the installation site. With their forged safety lugs, the toe jack can begin lifting with as little as 15 mm of ground clearance and raise the load in a controlled manner by up to 160 mm: enough to slide in transport trolleys or heavy-duty rollers and move the machine. Since the invention of the patented lug lifter in 1967, we have been manufacturing the original “Made in Germany” product—now available in four series for every application.
Toe jacks with integrated pump
The V-Series with an integrated hand pump operates completely independently: no power unit, no electrical connection, no hoses. Position, pump, lift—ideal for workshops, assembly, and changing work sites.

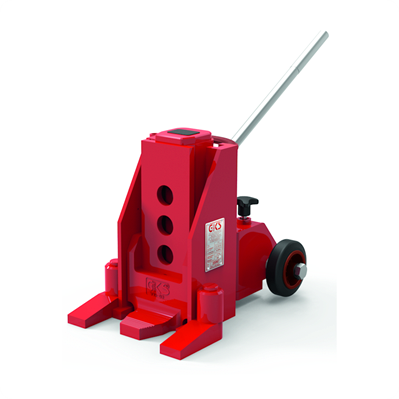

Hydraulic toe jack V10
- 10 metric tons of total load capacity
- 160 mm stroke height

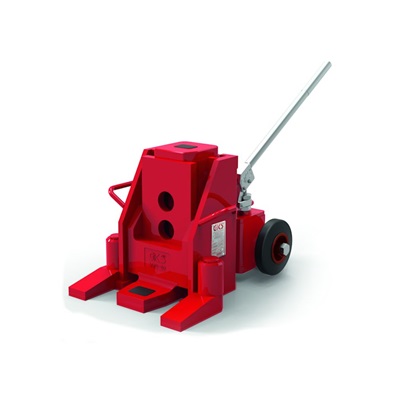

Hydraulic toe jack V20
- 20 metric tons of total load capacity
- 160 mm stroke height

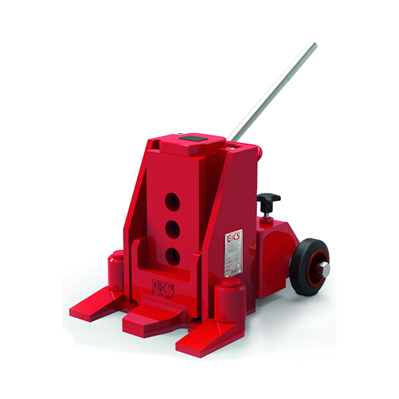

Hydraulic toe jack V15
- 15 metric tons of total load capacity
- 140 mm stroke height
Toe jacks with external pump
The EX models are operated using a PV hand pump or a PE electric pump—the operator works at a distance from the load, even at hard-to-reach lifting points. With a synchronous pressure system, multiple units lift a machine with absolute uniformity.

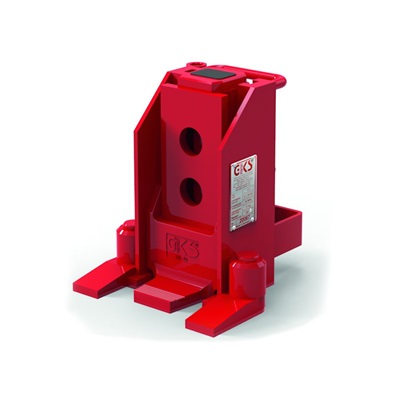

Hydraulic toe jack V5-EX
- 5 metric tons of total load capacity
- 140 mm stroke height

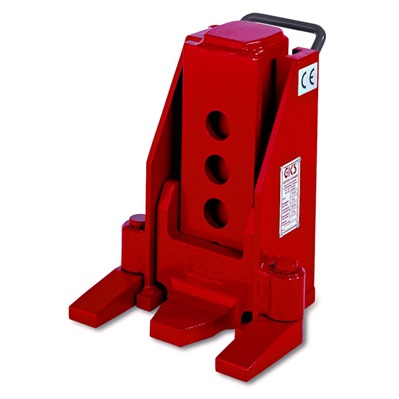

Hydraulic toe jack V10-EX
- 10 metric tons of total load capacity
- 160 mm stroke height

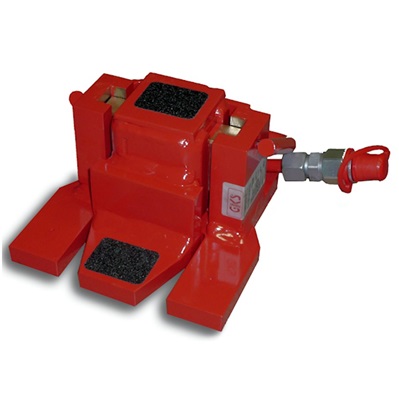

Hydraulic toe jack V5KK-EX
- 5 metric tons of total load capacity
- 30 mm stroke height
Hydraulic toe jack V30-EX
- 30 metric tons of total load capacity
- 156 mm stroke height

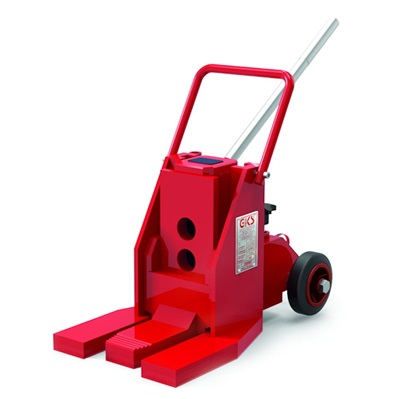

Hydraulic toe jack G5
- 5 metric tons of total load capacity
- 140 mm stroke height

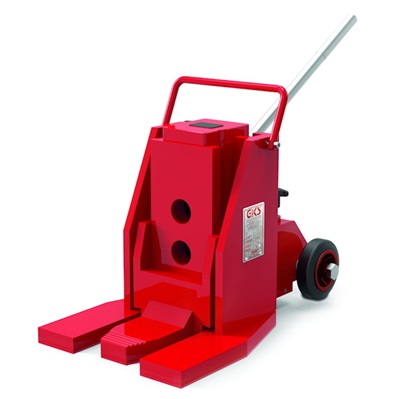

Hydraulic toe jack G10
- 10 metric tons of total load capacity
- 140 mm stroke height

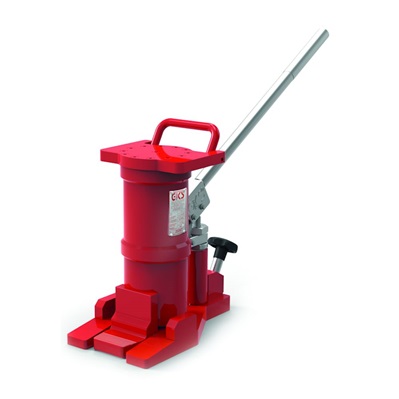

Hydraulic toe jack U6
- 6 metric tons of total load capacity
- 115 mm lift height
Toe jacks by GKS
toe jacks ' hydraulic systems from GKS-PERFEKT are used worldwide—in mechanical engineering, industrial assembly, logistics, and maintenance. Here are six reasons to choose the original:
High Quality: Every toe jack is manufactured in Germany, produced in accordance with ISO 9001, and 100% inspected and tested before shipment. The result: reliable, durable toe jacks that withstand decades of heavy-duty use.

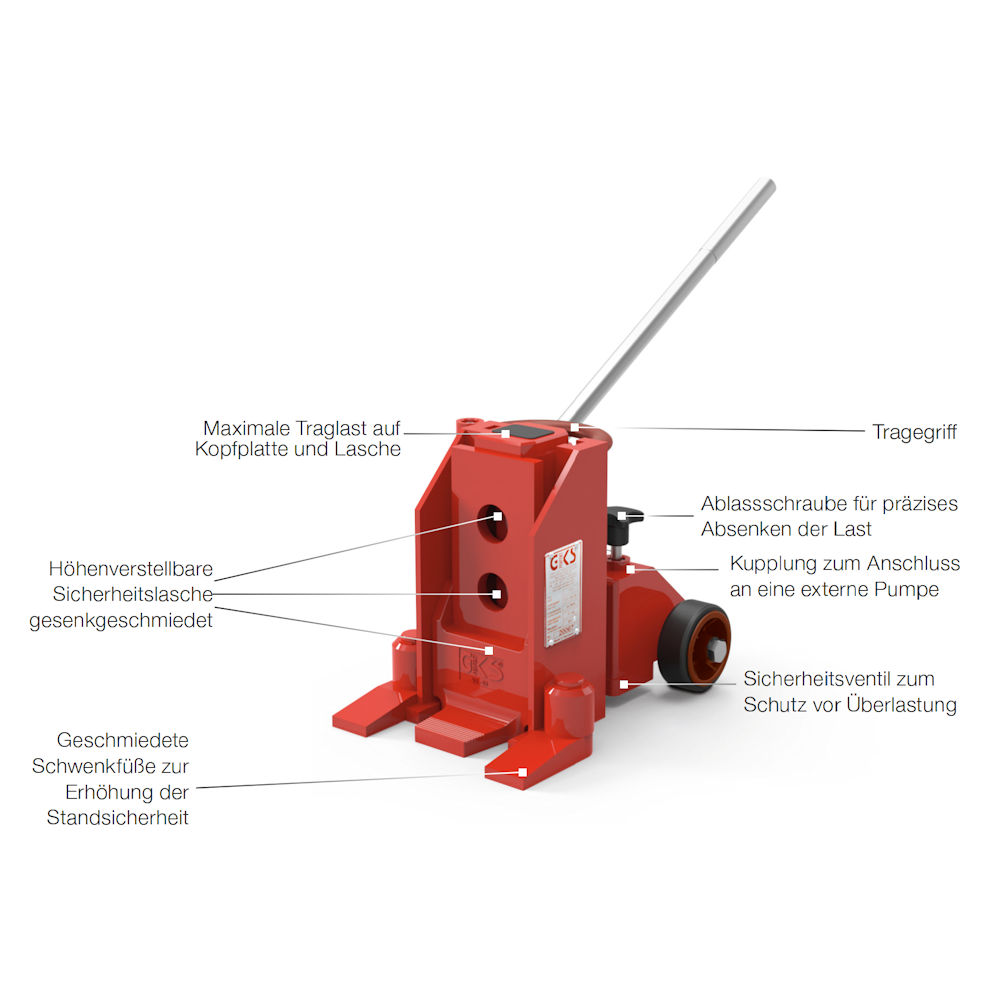

Safety: Several safety features protect both the operator and the load—including the overload safety valve and the forged safety lug, whose safety margin exceeds the requirements of the EU Machinery Directive 2006/42/EC. All units bear the CE mark and comply with DGUV Regulation 54 (Germany) and ANSI/ASME (U.S.).
Versatility: From machine relocation and assembly to maintenance and repair— toe jacks s are used in operations, in workshops, in manufacturing, and in open areas. Nickel-plated cleanroom models meet the requirements of the semiconductor, pharmaceutical, food, and chemical industries.
Easy to use: GKS-toe jack s are designed with the user in mind: position, pump, lift—no special knowledge required. The precisely adjustable release valve lowers loads with pinpoint accuracy and in a controlled manner.
Customer Service: Our team provides advice on selecting equipment, assists with training and maintenance, and supplies genuine replacement parts for all current models. We perform repairs and UVV inspections in-house.
Sustainability: Durable construction, a modular design, and the availability of all replacement parts mean that a GKStoe jack is repaired rather than replaced. Whenever possible, we use environmentally friendly materials and processes.
