transport trolley F30-L30
30 / 60 metric tons

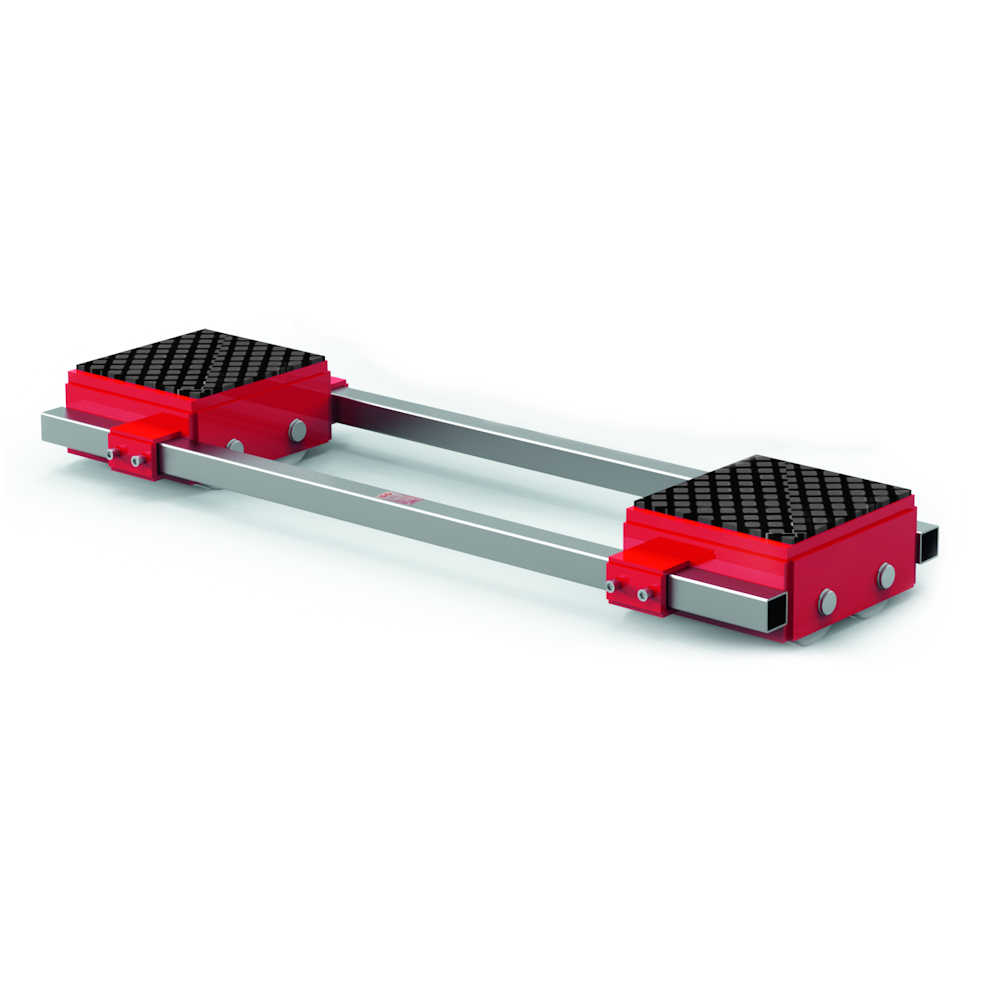

The transport trolley F30-L30
The F30-L30 transport trolley from GKS is a robust and warp-resistant welded construction. The trolley cassettes of this transport trolley guarantee high stability. The wheels score points with their extremely low rolling resistance and low net weight. The contact surfaces of the cassettes are equipped with non-slip waffle rubber.
The transport trolley meets the highest quality standards. The F30 - L30 transport trolleys from GKS-PERFEKT have proven their worth worldwide for decades, are robust, and exceptionally durable. Each transport trolley is 100% inspected and tested prior to delivery. You receive a versatile transport trolley that can be used truly anywhere, whether in the workshop, in the facility, or in production.

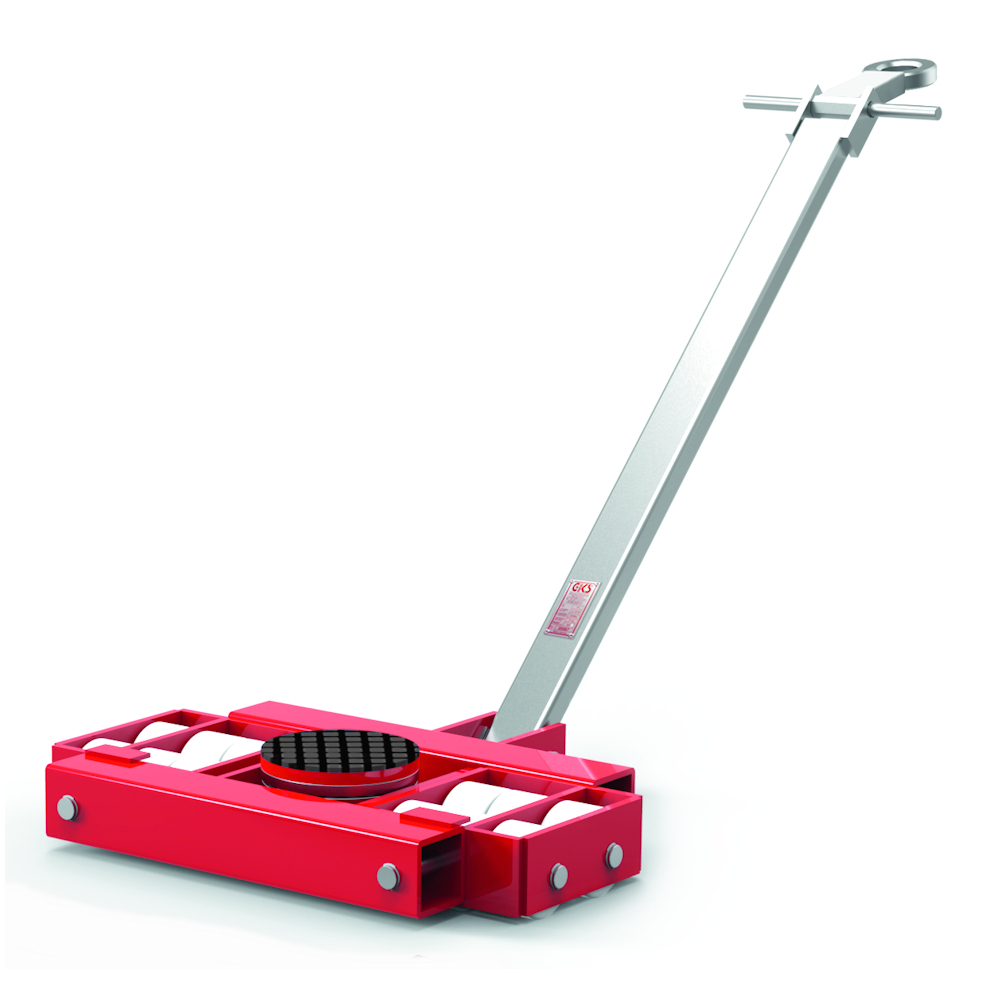

The set, consisting of the steerable transport trolley L30 and the fixed transport trolley F30, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 60 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features of the F30-L30
-
- Sturdy construction
- Installation height: 180 mm
- All transport trolleys models from F/L20 to F/L60 can be combined with one another
- Two connecting rods for greater stability
- Technical Specifications for the F30-L30
-
F30 L30 Item Number 11992 11993 Loading height in mm 180 180 Number of wheels (85 x 85 / 140 x 85) 12 12 Contact surface per cartridge in mm 288 x 300 - Connecting bar in mm - - Swivel plate Ø / steering angle - 250 / ± 90° Steering rod in mm - 1620 Overall dimensions (L x W) in mm - 820 x 952 Net weight in kg 118,4 200,8 Load capacity in metric tons 30 30 Total Load Capacity F30 / L30 60 metric tons - Informational Video and More
-
More information: transport trolleys F30-L30
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Installation height: 180 mm
- All transport trolleys models from F/L20 to F/L60 can be combined with one another
- Two connecting rods for greater stability
| F30 | L30 | |
| Item Number | 11992 | 11993 |
| Loading height in mm | 180 | 180 |
| Number of wheels (85 x 85 / 140 x 85) | 12 | 12 |
| Contact surface per cartridge in mm | 288 x 300 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 250 / ± 90° |
| Steering rod in mm | - | 1620 |
| Overall dimensions (L x W) in mm | - | 820 x 952 |
| Net weight in kg | 118,4 | 200,8 |
| Load capacity in metric tons | 30 | 30 |
| Total Load Capacity F30 / L30 | 60 | metric tons |
