transport trolley TL12
12 metric tons

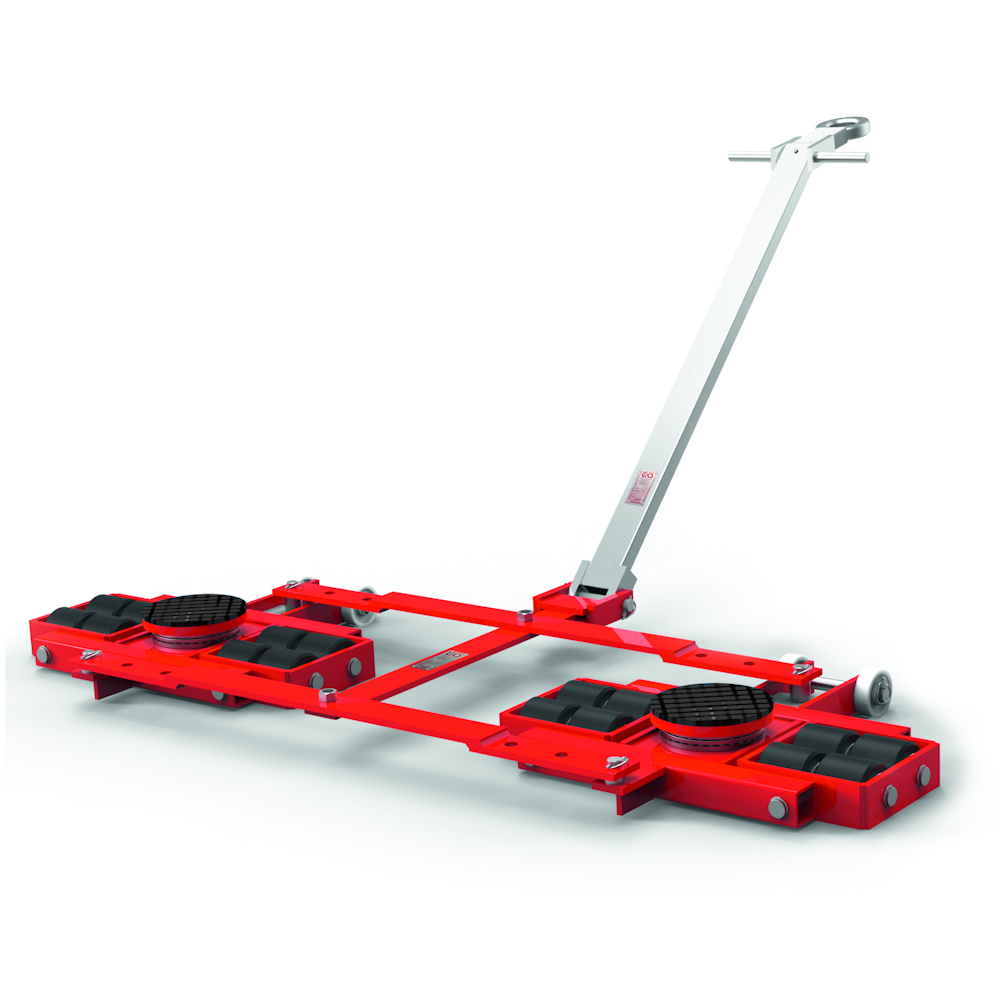

The transport trolley TL12
The GKS TL12 tandemtransport trolley is a sturdy, warp-free welded construction. The wheel assemblies of this chassis guarantee high stability. The wheels stand out for their extremely low rolling resistance and light weight. The contact surfaces of the wheel assemblies are equipped with non-slip waffle-patterned rubber.
transport trolley meets the highest quality standards. GKS-PERFEKT’s transport trolleys have been decades proven worldwide, robust, and exceptionally durable. The transport trolley TL12 is 100% inspected and tested before shipment. You’ll receive a universally applicable heavy-dutytransport trolley rated for 12 metric tons, which can truly be used anywhere—whether in the workshop, on the factory floor, or in production.
- Features of the TL12
-
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
- Technical Specifications for the TL12
-
TL12 Item Number 10230 Loading height in mm 110 Number of wheels (85 x 85) 16 Swivel plate Ø / steering angle 170 / ± 40 Adjustable in mm 660–1,000, 3-fold Handlebar with tow eye in mm 1080 Net weight in kg 99,2 Load capacity in metric tons 12 - Informational Video and More
-
More information: Tandem-transport trolley TL12
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport landing gear... is just a click away
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
| TL12 | |
| Item Number | 10230 |
| Loading height in mm | 110 |
| Number of wheels (85 x 85) | 16 |
| Swivel plate Ø / steering angle | 170 / ± 40 |
| Adjustable in mm | 660–1,000, 3-fold |
| Handlebar with tow eye in mm | 1080 |
| Net weight in kg | 99,2 |
| Load capacity in metric tons | 12 |
