transport trolley F60-L60
60 / 120 metric tons
The transport trolley F60-L60
The F60-L60 transport trolley from GKS is a robust and distortion-free welded construction. The trolley cassettes of this transport trolley guarantee high stability. The wheels score points with extremely low rolling resistance and low dead weight. The contact surfaces of the cassettes are equipped with non-slip waffle rubber.
The transport trolley meets the highest quality standards. GKS-PERFEKT transport trolleys have been proven worldwide for decades, and are robust and particularly durable. The F60 - L60 transport trolley is 100% inspected and tested before delivery. You receive a universally applicable transport trolley that can be used truly anywhere, whether in the workshop, plant, or production.

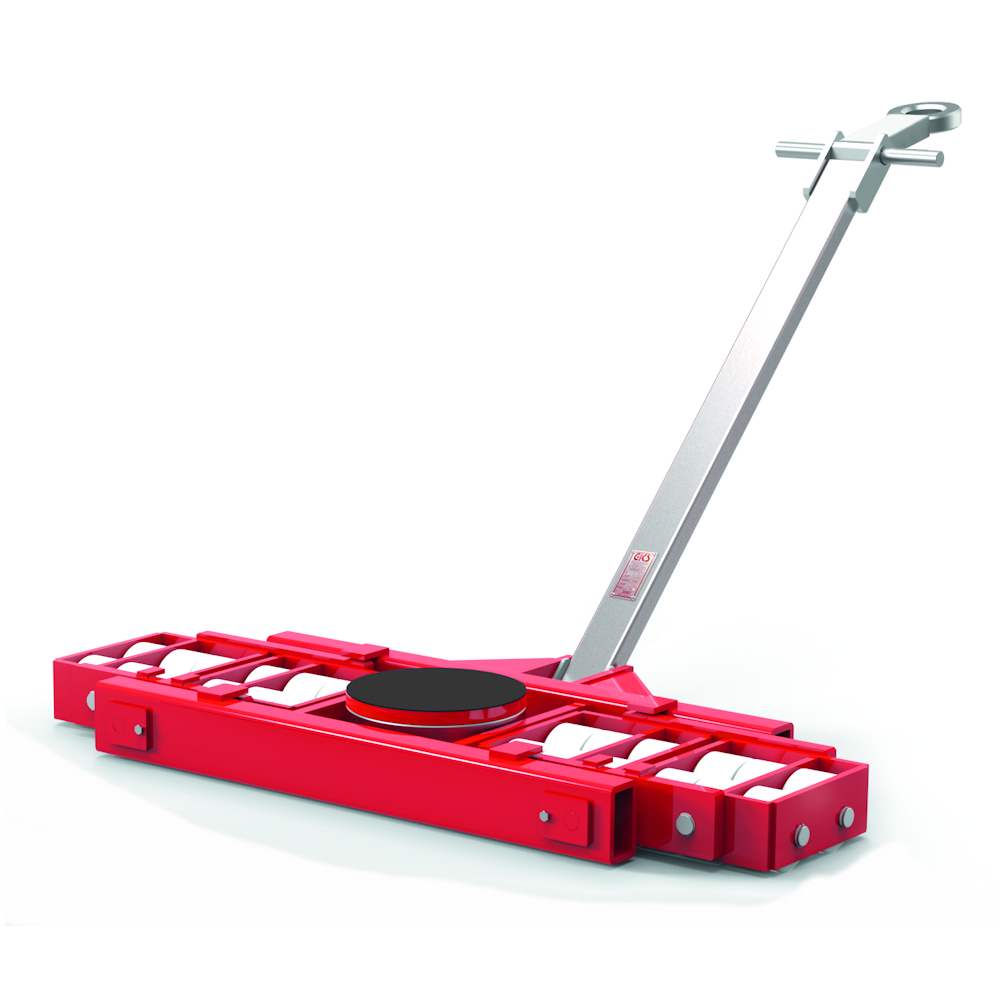

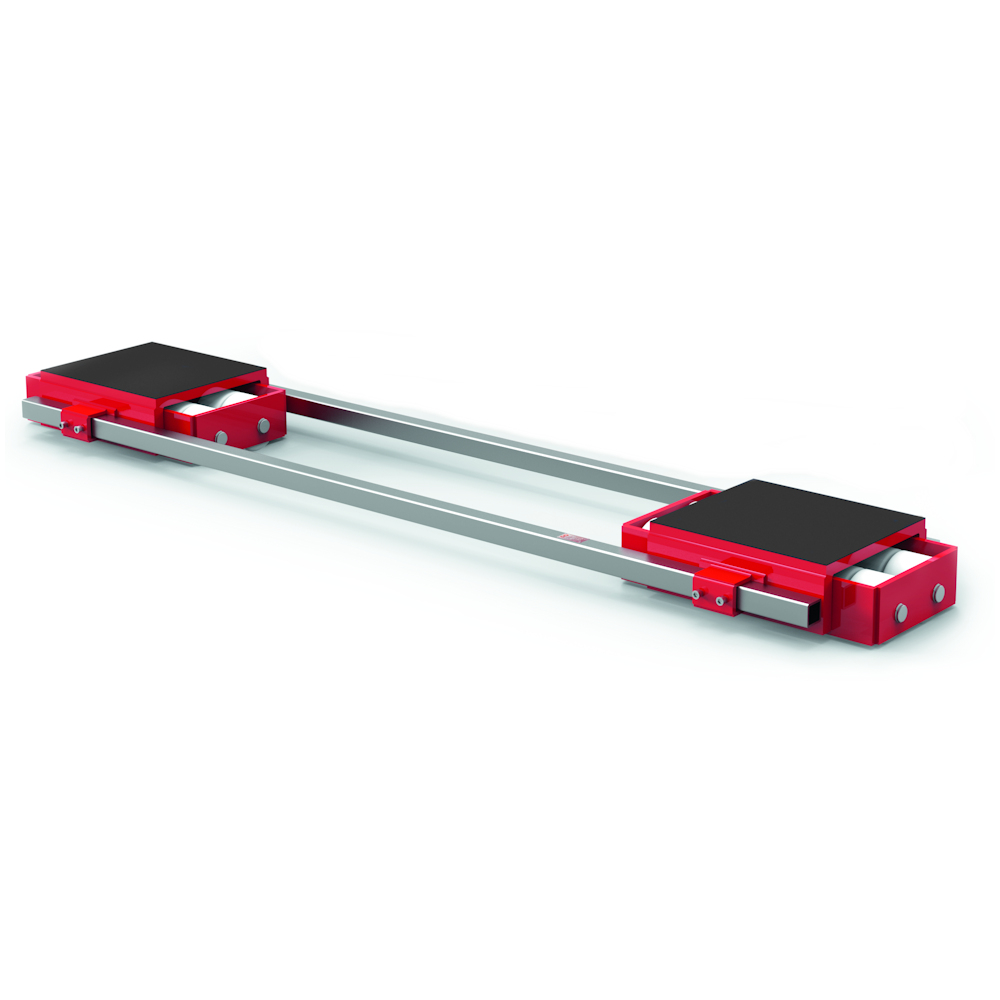

The set, consisting of the steerable transport trolley L60 and the fixed transport trolley F60, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 120 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features of the F60-L60
-
- Sturdy construction
- Installation height: 180 mm
- Can be combined with tandem axles of the same installation height
- Two connecting rods for greater stability
- Technical Specifications for the F60-L60
-
F60 L60 Item Number 10226 10227 Loading height in mm 180 180 Number of wheels (85 x 85 / 140 x 85) 24 24 Contact surface per cartridge in mm 390 x 440 - Connecting bar in mm - - Swivel plate Ø / steering angle - 340/ ± 90° Steering rod in mm - 1620 Overall dimensions (L x W) in mm - 835 x 1690 Net weight in kg 290,8 443,0 Load capacity in metric tons 60 60 Total Load Capacity F60 / L60 120 metric tons - Informational Video and More
-
More information: transport trolleys F60-L60
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Installation height: 180 mm
- Can be combined with tandem axles of the same installation height
- Two connecting rods for greater stability
| F60 | L60 | |
| Item Number | 10226 | 10227 |
| Loading height in mm | 180 | 180 |
| Number of wheels (85 x 85 / 140 x 85) | 24 | 24 |
| Contact surface per cartridge in mm | 390 x 440 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 340/ ± 90° |
| Steering rod in mm | - | 1620 |
| Overall dimensions (L x W) in mm | - | 835 x 1690 |
| Net weight in kg | 290,8 | 443,0 |
| Load capacity in metric tons | 60 | 60 |
| Total Load Capacity F60 / L60 | 120 | metric tons |
