PV Hydraulic Pump, Manual

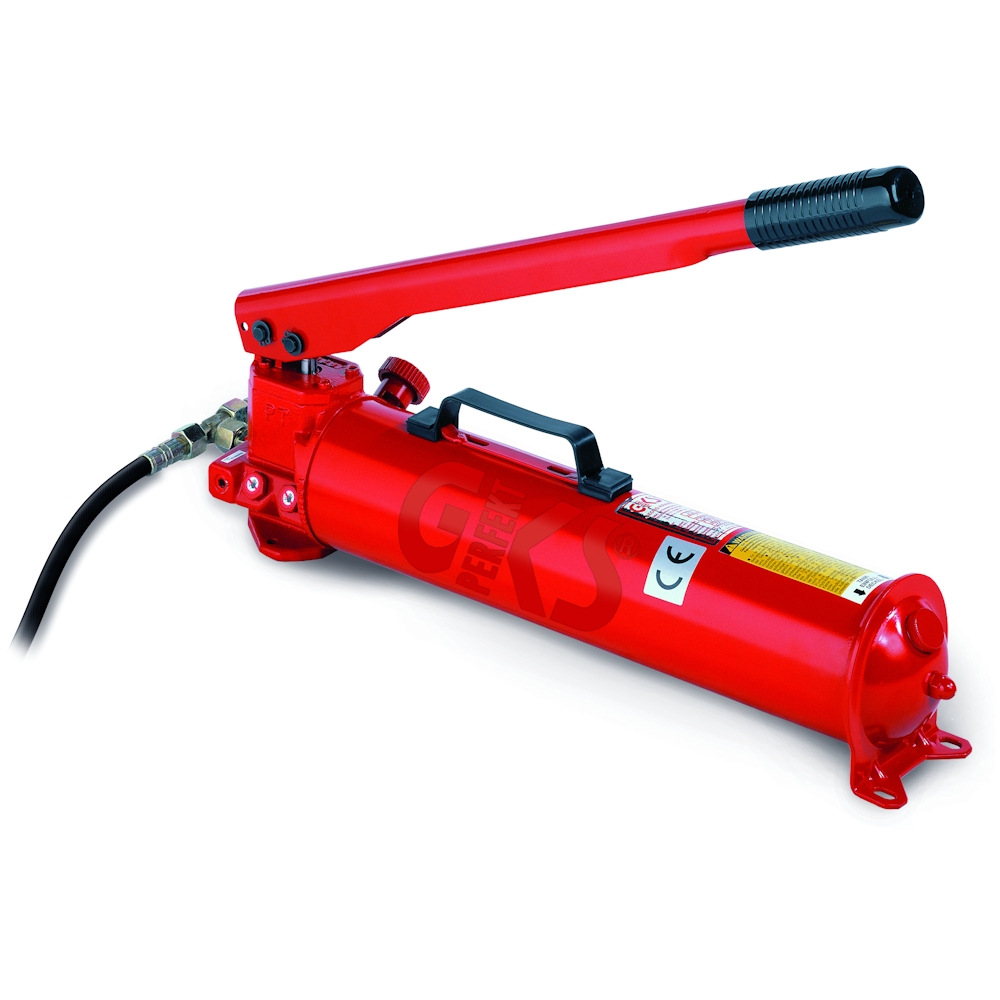

The PV hydraulic pump
The hydraulic pumps from GKS-PERFEKT are the perfect complement to our hydraulic toe jacks! They have proven themselves worldwide for decades, offering robust and particularly long-lasting performance. Every pump undergoes 100% inspection and testing prior to delivery. With the PV hydraulic pump, you receive a manually operated pump that can truly be used anywhere, whether in operation, in the workshop, outdoors, or in production.
- PV Features
-
- Standard model with 2 x 2 m hoses featuring drip-free quick-connect fittings
- Options: Pressure gauge, shut-off valve, and longer hoses
- Standard model with 2 x 2 m hoses featuring drip-free quick-connect fittings
- PV Technical Specifications
-
Item Number 10198 Working pressure (default) in bar 520 First-stage flow rates per stroke in cm³/bar 42 / 520 Second-stage flow rates per stroke in cm³/bar 2.6 / 520 Tank capacity in l 2,25 External dimensions (L x W x H) in mm 645 x 143 x 175 Net weight with oil (without hoses) in kg 13,6 Hose (2 m), quick-connect fitting 2 For GKS Lifting Types 2 each of V5, V5-EX, V5K-EX, V10, V10-EX, V15, V20, and 1 V30-EX* * Optional 9.5-liter tank
- Information
-
More information: PV Manual Hydraulic Pump
Real-world application examples... see here
An exploded view of the lifter... is just a click away
- Standard model with 2 x 2 m hoses featuring drip-free quick-connect fittings
- Options: Pressure gauge, shut-off valve, and longer hoses
| Item Number | 10198 |
| Working pressure (default) in bar | 520 |
| First-stage flow rates per stroke in cm³/bar | 42 / 520 |
| Second-stage flow rates per stroke in cm³/bar | 2.6 / 520 |
| Tank capacity in l | 2,25 |
| External dimensions (L x W x H) in mm | 645 x 143 x 175 |
| Net weight with oil (without hoses) in kg | 13,6 |
| Hose (2 m), quick-connect fitting | 2 |
| For GKS Lifting Types | 2 each of V5, V5-EX, V5K-EX, V10, V10-EX, V15, V20, and 1 V30-EX* |
* Optional 9.5-liter tank
More information: PV Manual Hydraulic Pump
Real-world application examples... see here
An exploded view of the lifter... is just a click away
