Hydraulic toe jack
V10 - 10 tons

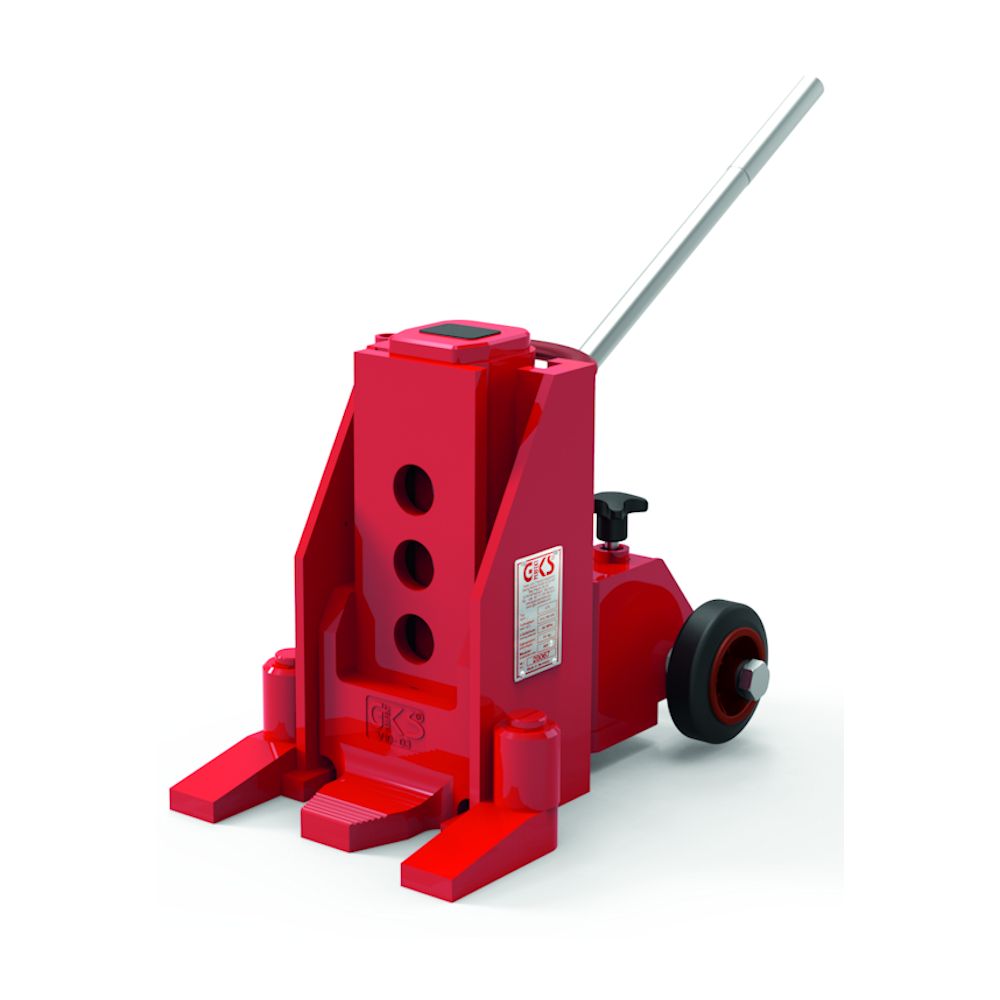

The toe jack V10
When 10 metric tons need to be lifted safely, the hydraulic toe jack V10 is the top choice. The toe jack with an integrated pump operates independently—without an external power unit or electrical connection. The forged safety bracket engages at just 20 mm of ground clearance and lifts the load by up to 160 mm; the 4-way adjustable bracket flexibly adapts to different machine heights. A safety valve protects against overload. The V10 has proven itself worldwide for decades in lifting machine tools, equipment, and control cabinets—in manufacturing, workshops, and open areas. 100% tested before shipment: Quality from GKS-PERFEKT, the original “Made in Germany.”
V10 Features
- Forged safety latch made of high-strength, heat-treated material with a very high safety margin (exceeds EU Directive 2006/42/EC)
- Pins on the back ensure proper attachment
- Double or multiply the load capacity by two or more toe jacks – single-person operation with PV hand pump, PE electric pump, or Quadro synchronous pressure unit
- Equal load capacity on the head plate and tab: 10 metric tons
- Can be upgraded with an optional PV hand pump or PE electric pump
V10 Technical Specifications
| Item Number | 10182 |
| Total load capacity in metric tons | 10 |
| Working pressure in bar | 520 |
| Minimum loading height using safety toe | 20 |
| Lifting height (mm) | 160 |
| Adjustability of the safety toe | 4-way |
| Loading height using top plate in mm | 310 |
| External dimensions (L x W x H) | 357 x 260 x 310 |
| Net weight with oil, in kg | 32,4 |
V10 - The Facts
- Lifting function via a manual pump lever; smooth lowering by opening the drain plug
- 4-position height-adjustable safety lever latch with a high safety margin (forged, heat-treated)
- wheels For easy handling—back-friendly transport by tilting it onto the wheels
- CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), EC Declaration of Conformity included
- Modular design for easy maintenance
- High-quality materials, sturdy and durable
- Cost-effective operation, easy maintenance, precision guides
- Available as a nickel-plated cleanroom device —for chip manufacturing, the food, pharmaceutical, and chemical industries
V10: Informational Video and More
More information: Hydraulic toe jack V10
Our lifters in action... click here to watch the video
Real-world application examples... see here
An exploded view of the toe jack is just a click away
