transport trolley F20-L20
20 / 40 metric tons
The transport trolley F20-L20
The F20-L20 transport trolley from GKS is a robust, distortion-free, welded construction. The trolley cassettes of this transport trolley guarantee high stability. The wheels stand out for their exceptionally low rolling resistance and low dead weight. The contact surfaces of the cassettes are equipped with non-slip waffle rubber.
The transport trolley meets the highest quality standards. The F20 - L20 transport trolleys from GKS-PERFEKT have proven their worth worldwide for decades, and are robust and exceptionally durable. Each transport trolley undergoes 100% inspection and testing prior to delivery. You receive a universally applicable transport trolley that can be used truly anywhere, whether in the workshop, plant, or production facility.

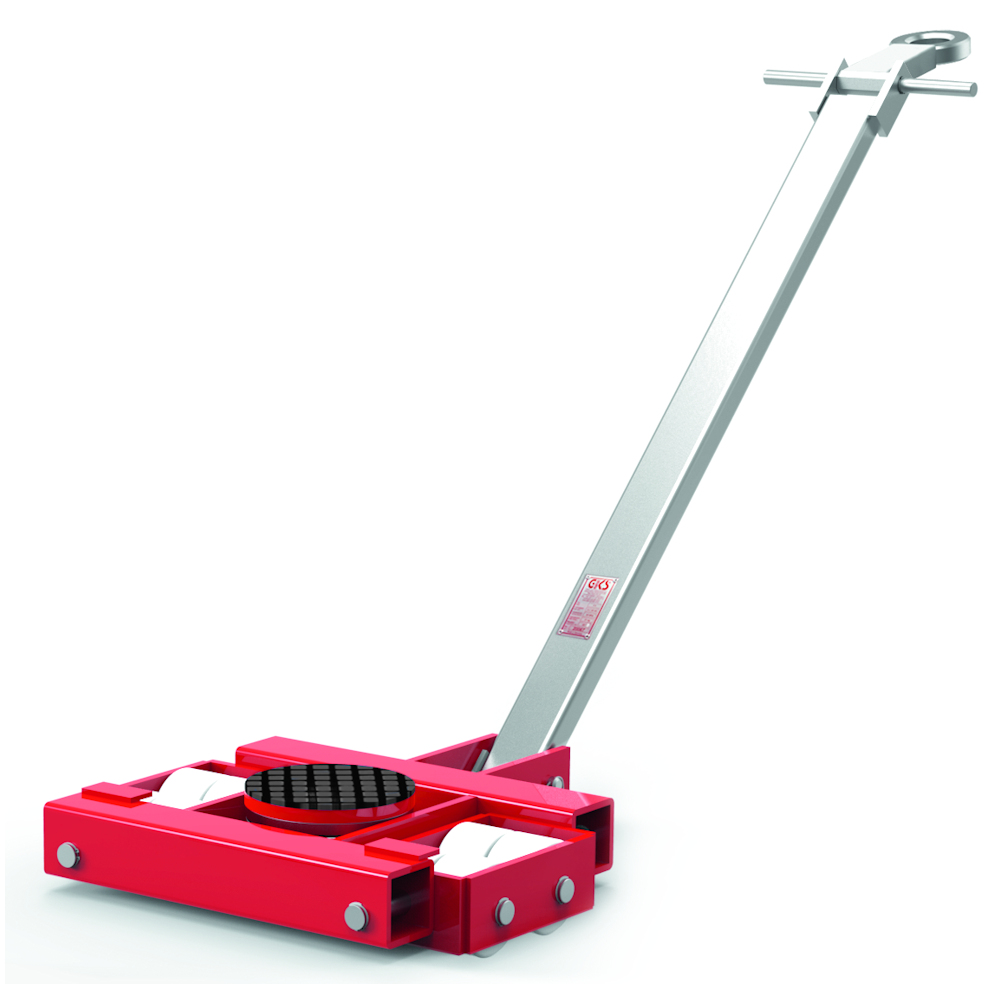

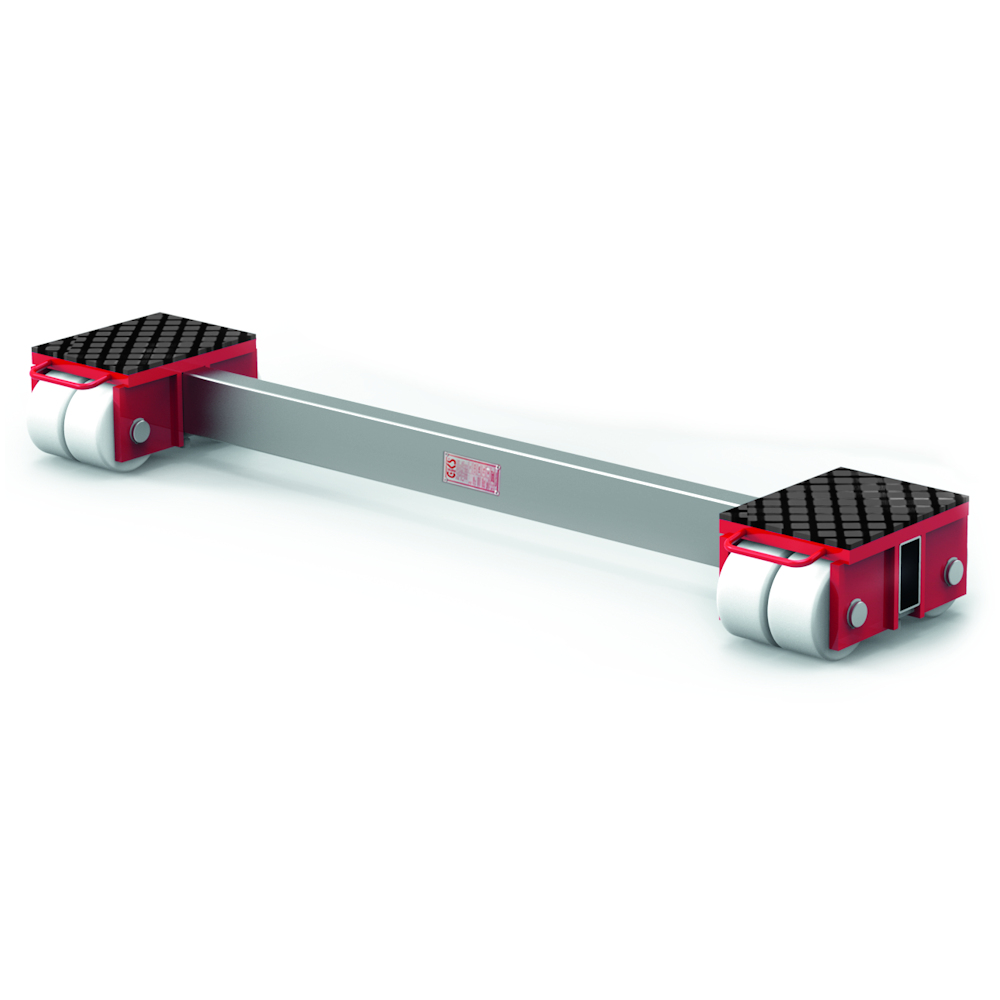

The set, consisting of the steerable transport trolley L20 and the fixed transport trolley F20, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 40 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features of the F20-L20
-
- Sturdy construction
- Installation height: 180 mm
- All transport trolleys models from F/L20 to F/L60 can be combined with one another
- Technical Specifications for the F20-L20
-
F20 L20 Item Number 11060 11061 Loading height in mm 180 180 Number of wheels (85 x 85 / 140 x 85) 8 8 Contact surface per cartridge in mm 280 x 220 - Connecting bar in mm - - Swivel plate Ø / steering angle - 250 / ± 90° Steering rod in mm - 1620 Overall dimensions (L x W) in mm - 747 x 800 Net weight in kg 72,7 161,8 Load capacity in metric tons 20 20 Total Load Capacity F20 / L20 40 metric tons - Informational Video and More
-
More information: transport trolleys F20-L20
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Installation height: 180 mm
- All transport trolleys models from F/L20 to F/L60 can be combined with one another
| F20 | L20 | |
| Item Number | 11060 | 11061 |
| Loading height in mm | 180 | 180 |
| Number of wheels (85 x 85 / 140 x 85) | 8 | 8 |
| Contact surface per cartridge in mm | 280 x 220 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 250 / ± 90° |
| Steering rod in mm | - | 1620 |
| Overall dimensions (L x W) in mm | - | 747 x 800 |
| Net weight in kg | 72,7 | 161,8 |
| Load capacity in metric tons | 20 | 20 |
| Total Load Capacity F20 / L20 | 40 | metric tons |
