PE4 Hydraulic Pump, Electric

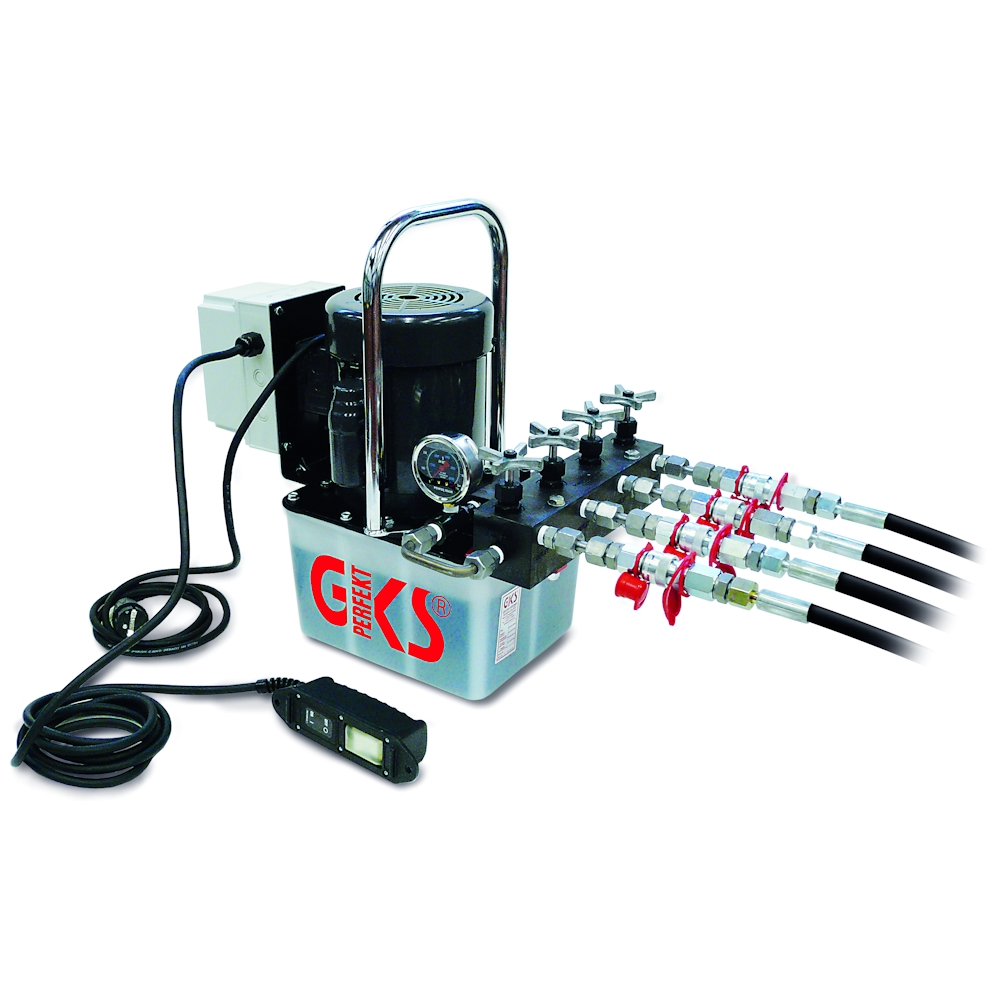

The PE4 hydraulic pump
The hydraulic pumps from GKS-PERFEKT are the perfect complement to our hydraulic toe jacks! They have been proven worldwide for decades robust, and particularly durable. Every pump undergoes 100% inspection and testing prior to delivery. With the PE4, you get an electric hydraulic pump that provides an efficient solution for lifting heavy loads with minimal effort, enabling precise lifting at the push of a button.
- Features of PE4
-
- Same as PE2, but with a 4-way manifold and 4 x 3-meter hoses
- Options: longer hoses, large tank (9.5 L)
- Same as PE2, but with a 4-way manifold and 4 x 3-meter hoses
- PE4 Technical Specifications
-
Item Number 13592 Working pressure (default) in bar 520 First-stage flow rates per stroke in cm³/bar 2.5 / 7 Second-stage flow rates per stroke in cm³/bar 0.3 / 520 Tank capacity* in l 4,7 External dimensions (L x W x H) in mm 434 x 296 x 493 Net weight with oil (without hoses) in kg 45,0 Hose (3 m), quick-connect fitting 4 For GKS Lifting Types 4 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, V30-EX - Information
-
More information: PE4 Electric Hydraulic Pump
Real-world application examples... see here
An exploded view of the lifter... is just a click away
- Same as PE2, but with a 4-way manifold and 4 x 3-meter hoses
- Options: longer hoses, large tank (9.5 L)
| Item Number | 13592 |
| Working pressure (default) in bar | 520 |
| First-stage flow rates per stroke in cm³/bar | 2.5 / 7 |
| Second-stage flow rates per stroke in cm³/bar | 0.3 / 520 |
| Tank capacity* in l | 4,7 |
| External dimensions (L x W x H) in mm | 434 x 296 x 493 |
| Net weight with oil (without hoses) in kg | 45,0 |
| Hose (3 m), quick-connect fitting | 4 |
| For GKS Lifting Types | 4 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, V30-EX |
