Hydraulic toe jack
V15 - 15 metric tons

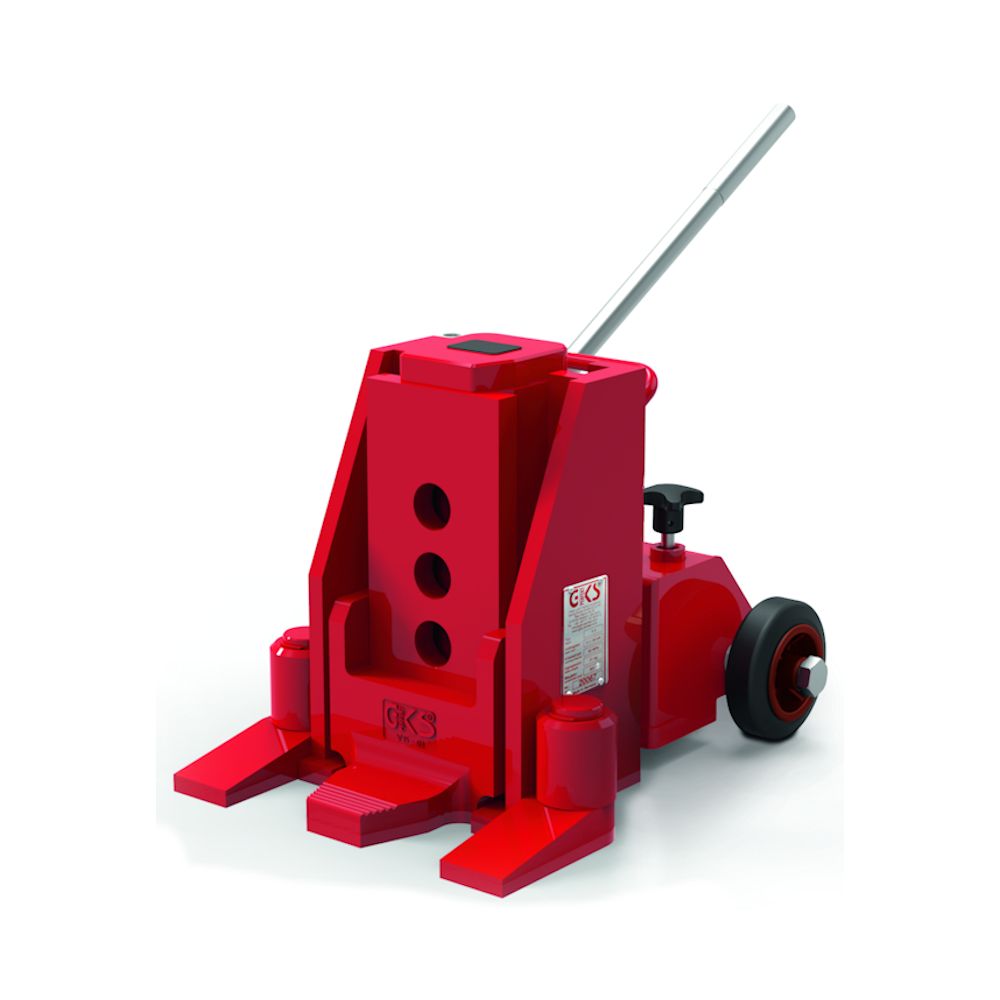

The toe jack V15
The toe jack V15 delivers a 15-metric-ton total load capacity in a compact, hydraulic toe jack with a built-in pump. Heavy machining centers, presses, or system modules are safely lifted from a minimum clearance height of 25 mm and raised by up to 160 mm—ideal for placing transport trolleys or heavy-duty rollers underneath. The 4-way adjustable safety strap makes the V15 flexible for a wide variety of load geometries, while the safety valve prevents any overload. Like all GKStoe jacks , the V15 is fully inspected and tested before delivery. A robust, durable heavy-duty lifter for industry, mechanical engineering, and assembly services—the original made in Germany.
Mekmale V15
- Forged safety latch made of high-strength, heat-treated material—safety margin exceeds EU Directive 2006/42/EC
- Rear pin for proper attachment
- Load capacity can be multiplied by combining multiple toe jacks units—can be operated by a single person using the PV hand pump, PE electric pump, or Quadro synchronous pressure unit
- Equal load capacity on the head plate and tab: 15 metric tons
- Can be optionally upgraded with a PV hand pump or a PE electric pump
Technical Specifications for the V15
| Item Number | 10183 |
| Total load capacity in metric tons | 15 |
| Working pressure in bar | 520 |
| Minimum loading height using safety toe | 25 |
| Lifting height (mm) | 160 |
| Adjustability of the safety toe | 4-way |
| Loading height using top plate in mm | 318 |
| External dimensions (L x W x H) | 403 x 320 x 318 |
| Net weight with oil, in kg | 52,0 |
V15 - The Facts
- Lifting by manually operating the pump lever; precise lowering via the drain screw
- 4-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
- With " wheels " for easy handling—back-friendly transport thanks to the tilting mechanism
- CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
- Modular design for easy maintenance
- High-quality material, sturdy and durable
- Cost-effective operation, easy maintenance, precision guides
- Nickel-plated cleanroom version available—e.g., for the semiconductor, food, pharmaceutical, and chemical industries
V15: Informational Video and More
More information: Hydraulic toe jack V15
Our lifters in action... click here to watch the video
Real-world application examples... see here
An exploded view of the toe jack is just a click away
