Hydraulic toe jack
V5 - 5 metric tons

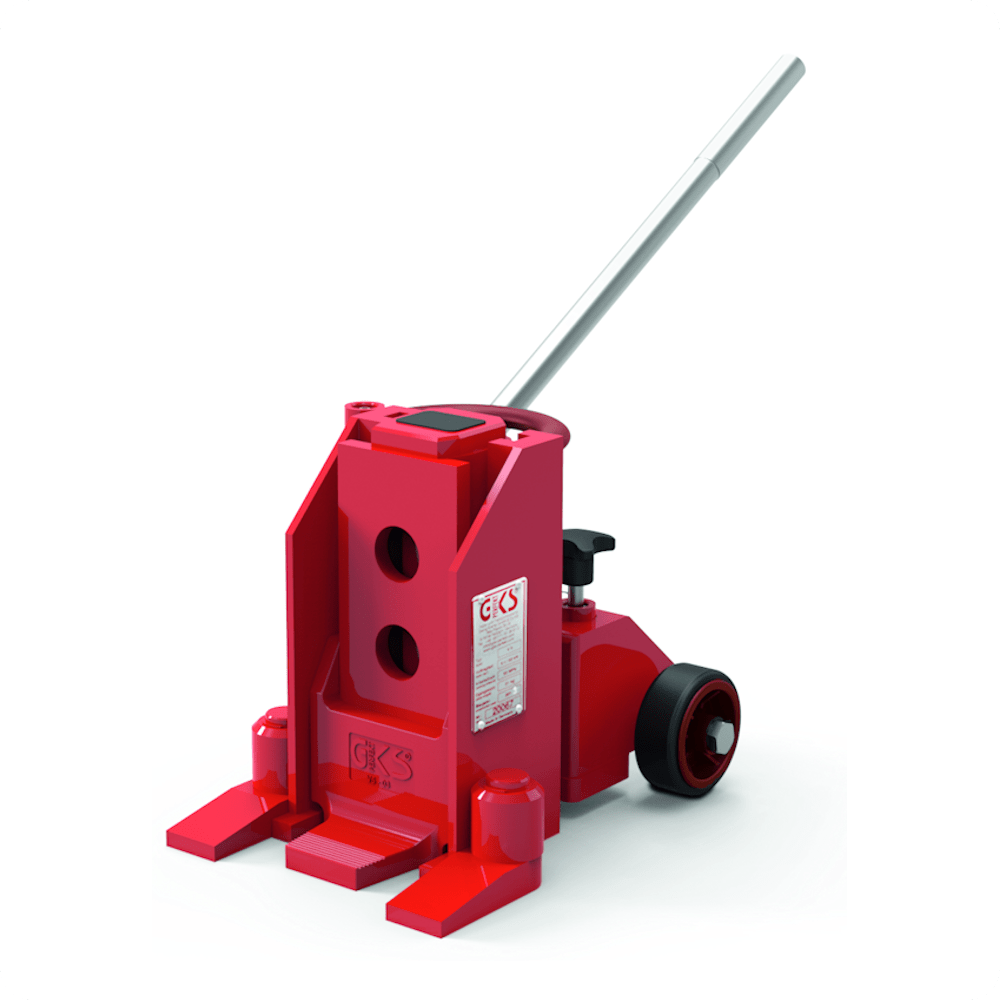

The toe jack V5
The GKS-PERFEKT V5 hydraulic toe jack lifts machines and heavy loads up to 5 metric tons —precisely, safely, and without a crane. Thanks to its built-in hand pump, the “ toe jack ” is ready for immediate use: simply operate the pump lever, lift the load, and you’re done. With a tongue height of just 15 mm, the V5 can even reach under machines resting flat on the ground; the lifting height is 140 mm. An integrated safety valve reliably prevents the device from being overloaded. Whether for moving machinery, assembly, or maintenance—the V5 is the proven all-rounder for workshops, manufacturing, and outdoor use. Every unit is 100% tested before shipment: the original “Made in Germany,” in use worldwide for decades.
Features of the V5
- Forged safety latch made of high-strength, heat-treated material—the high safety margin exceeds the requirements of the EU Machinery Directive 2006/42/EC
- Pins on the back for proper, secure attachment of the strap
- Load capacity can be doubled or multiplied by using multiple toe jacks —operable by a single person using the PV hand pump, PE electric pump, or Quadro synchronous pressure unit
- Identical load capacity on the head plate and the bracket: a full 5 metric tons at both attachment points
- Can be optionally upgraded with a PV hand pump or a PE electric pump
V5 Technical Specifications
| Item Number | 10181 |
| Total load capacity in metric tons | 5 |
| Working pressure in bar | 520 |
| Minimum loading height using safety toe | 15 |
| Lifting height (mm) | 140 |
| Adjustability of the safety toe | 3-way |
| Loading height using top plate in mm | 252 |
| External dimensions (L x W x H) | 285 x 235 x 252 |
| Net weight with oil, in kg | 21,6 |
V5 - The Facts
- Lifting via a manual pump lever; precise lowering via the drain plug
- 3-position height-adjustable safety lever latch, forged from high-strength, heat-treated material
- Integrated " wheels " for easy handling—back-friendly transport by tilting the lifter
- CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
- Modular design for quick and easy service
- Rugged, durable construction with precision guides
- Cost-effective operation, low maintenance
- Also available in a nickel-plated version as a cleanroom device—ideal for semiconductor manufacturing, as well as the food, pharmaceutical, and chemical industries
V5: Informational Video and More
More information: Hydraulic toe jack V5
Our lifters in action... click here to watch the video
Real-world application examples... see here
An exploded view of the lever... is just a click away
