rotating transport trolley RL1
1 metric ton

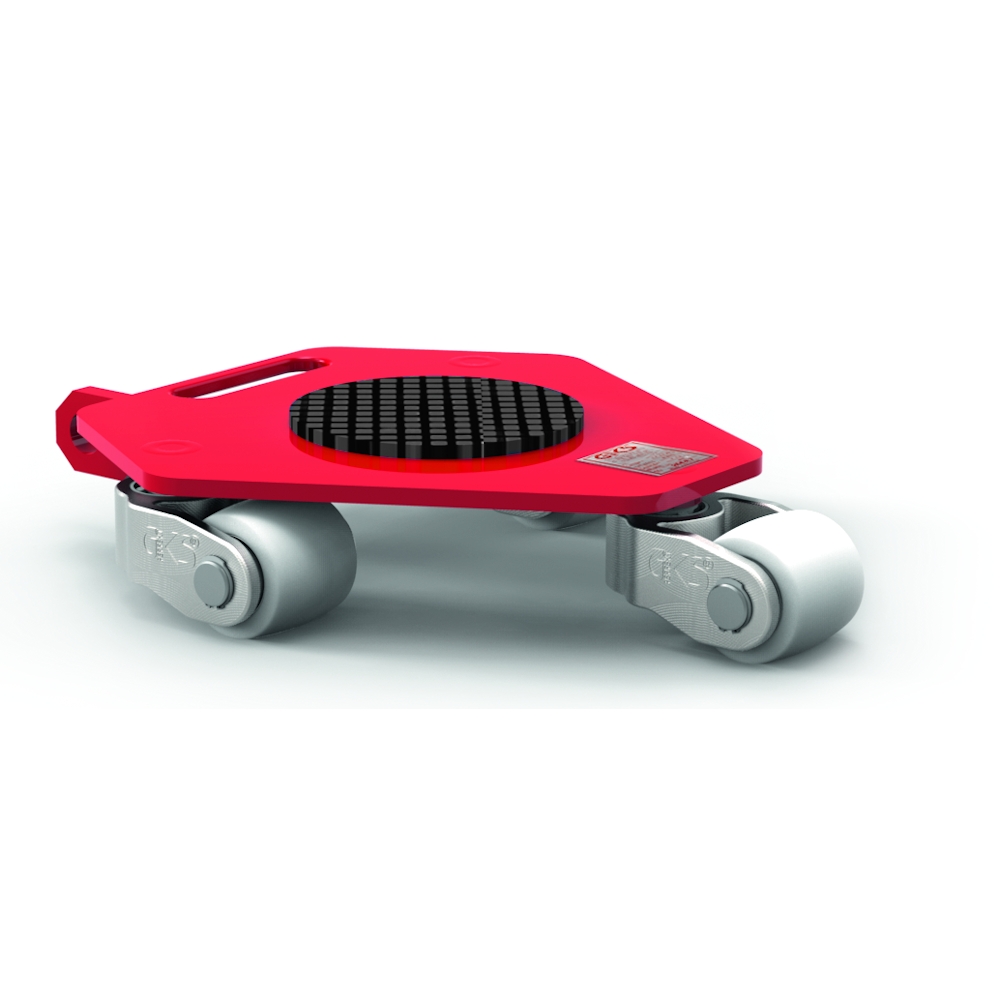

The rotating transport trolley RL1
When machines or other heavy equipment need to be moved,rotating transport trolley is the best choice. It is easy to operate and can handle loads of up to 1 metric ton. For the easy and safe transport of heavy loads within the facility.
The rotating transport trolley stands out for its exceptional stability and premium quality. It can rotate 360° on the spot, making it ideal for moving heavy loads in tight spaces . Thanks to its low-profile design, the rotating transport trolley can be easily positioned under the load. Its ability to rotate makes it easier to secure and align the load. Convenient handles are also attached to the side, which can be used for carrying and moving the cart.
- Features of RL1
-
- The RL-transport trolleys , which have the same overall height, can be combined as a 3-point or 4-point hitch with a connecting rod and a steering rod (optional)
- Very low installation height
The RL1 rotating transport trolley is also available in a nickel-plated version designed for use in cleanrooms. It is ideal for meeting the requirements of cleanrooms, such as those found in chip manufacturing, the food industry, the pharmaceutical industry, and the chemical industry. The technical specifications are the same as those of the standard units.
- The RL-transport trolleys , which have the same overall height, can be combined as a 3-point or 4-point hitch with a connecting rod and a steering rod (optional)
- Technical Specifications for the RL1
-
Item Number 11456 Total load capacity in metric tons 1 Loading height in mm 100 Number of wheels 3 Dimensions of the wheels in mm 57 x 66 Overall dimensions (L x W x H) in mm 426 x 379 x 100 Total weight in kg 16 - Informational Video and More
-
More information: rotating transport trolley RL1
Our " rotating transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the landing gear... is just a click away
- The RL-transport trolleys , which have the same overall height, can be combined as a 3-point or 4-point hitch with a connecting rod and a steering rod (optional)
- Very low installation height
The RL1 rotating transport trolley is also available in a nickel-plated version designed for use in cleanrooms. It is ideal for meeting the requirements of cleanrooms, such as those found in chip manufacturing, the food industry, the pharmaceutical industry, and the chemical industry. The technical specifications are the same as those of the standard units.
| Item Number | 11456 |
| Total load capacity in metric tons | 1 |
| Loading height in mm | 100 |
| Number of wheels | 3 |
| Dimensions of the wheels in mm | 57 x 66 |
| Overall dimensions (L x W x H) in mm | 426 x 379 x 100 |
| Total weight in kg | 16 |
More information: rotating transport trolley RL1
Our " rotating transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the landing gear... is just a click away
