rotating transport trolley RL6
6 metric tons

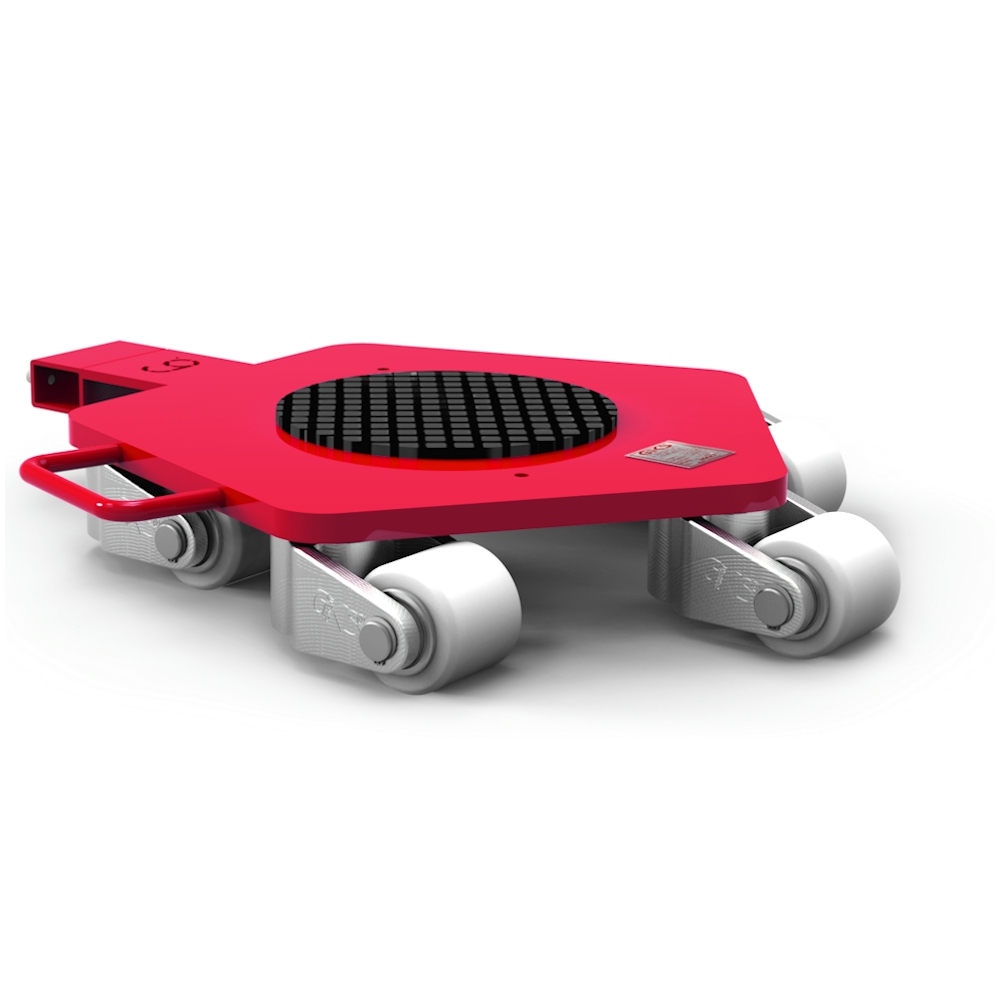

The RL6 rotating transport trolley
When machines or other heavy equipment weighing up to 6 metric tons need to be moved, the rotating transport trolley RL6 is the best choice. It’s easy to operate and can handle loads of up to 6 metric tons. For the easy and safe transport of heavy loads within the facility.
The rotating transport trolley stands out for its exceptional stability and premium quality. It can rotate 360° on the spot, making it ideal for moving heavy loads in very tight spaces . Thanks to its low-profile design, the rotating transport trolley can be easily positioned under the load. Its ability to rotate makes it easier to secure and align the load.
- RL6 Features
-
- rotating transport trolleys can also be combined with F or TL chassis of the same height
The rotating transport trolley RL6 is also available in a nickel-plated version as a cleanroom unit. It is ideal for cleanroom applications, such as in chip manufacturing, the food, pharmaceutical, and chemical industries. Its technical specifications are the same as those of the standard units.
- rotating transport trolleys can also be combined with F or TL chassis of the same height
- Technical Specifications for the RL6
-
Item Number 13439 Total load capacity in metric tons 6 Loading height in mm 118 Number of wheels 5 Dimensions of the wheels in mm 58 x 85 Overall dimensions (L x W x H) in mm 667 x 535 x 118 Total weight in kg 60 - Informational Video and More
-
More information: rotating transport trolley RL6
Our " rotating transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the landing gear... is just a click away
- rotating transport trolleys can also be combined with F or TL chassis of the same height
The rotating transport trolley RL6 is also available in a nickel-plated version as a cleanroom unit. It is ideal for cleanroom applications, such as in chip manufacturing, the food, pharmaceutical, and chemical industries. Its technical specifications are the same as those of the standard units.
| Item Number | 13439 |
| Total load capacity in metric tons | 6 |
| Loading height in mm | 118 |
| Number of wheels | 5 |
| Dimensions of the wheels in mm | 58 x 85 |
| Overall dimensions (L x W x H) in mm | 667 x 535 x 118 |
| Total weight in kg | 60 |
