transport trolley F3-L3
3 / 6 metric tons
The transport trolley F3-L3
The GKS F3-L3 transport trolley is a sturdy, warp-free welded construction. The chassis cassettes of this system guarantee high stability. The wheels stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are equipped with non-slip waffle-patterned rubber.
The transport trolley meets the highest quality standards. GKS-PERFEKT transport trolleys have been proven worldwide for decades, are robust, and have an exceptionally long service life. Every transport trolley is 100% inspected and tested before delivery. You receive a universally applicable transport trolley that can be used truly anywhere, whether in the workshop, industrial plant, or production facility.

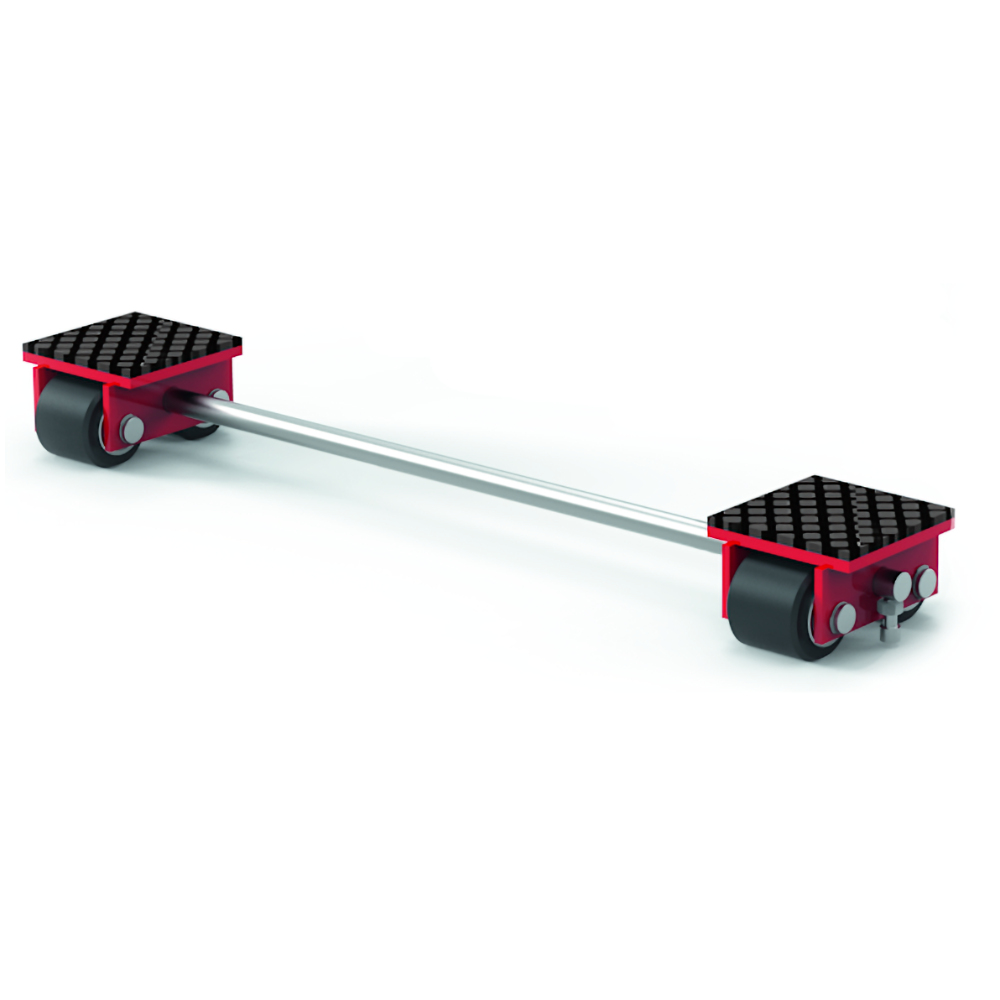

The set, consisting of the steerable transport trolley L3 and the fixed transport trolley F3, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 6 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features F3-L3
-
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
- wheels , tested over many years and with a long shelf life
- Tow bars made of exceptionally durable materials
- Sturdy construction
- Technical Specifications for the F3-L3
-
F3 L3 Item Number 10206 10207 Loading height in mm 110 110 Number of wheels (85 x 85) 4 4 Contact surface per cartridge in mm 150 x 150 - Connecting bar in mm 1000 - Swivel plate Ø / steering angle - 170 / ± 90° Steering rod in mm - 950 Overall dimensions (L x W) in mm - 270 x 230 Net weight in kg 15,6 13,4 Load capacity in metric tons 3 3 Total Load Capacity F3 / L3 6 metric tons - Informational Video and More
-
More information: transport trolleys F3-L3
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
- wheels , tested over many years and with a long shelf life
- Tow bars made of exceptionally durable materials
| F3 | L3 | |
| Item Number | 10206 | 10207 |
| Loading height in mm | 110 | 110 |
| Number of wheels (85 x 85) | 4 | 4 |
| Contact surface per cartridge in mm | 150 x 150 | - |
| Connecting bar in mm | 1000 | - |
| Swivel plate Ø / steering angle | - | 170 / ± 90° |
| Steering rod in mm | - | 950 |
| Overall dimensions (L x W) in mm | - | 270 x 230 |
| Net weight in kg | 15,6 | 13,4 |
| Load capacity in metric tons | 3 | 3 |
| Total Load Capacity F3 / L3 | 6 | metric tons |
