transport trolley F18-L18
18 / 36 metric tons
The transport trolley F18-L18
The F18-L18 transport trolley from GKS is a robust and warp-resistant welded design. The cassette frames of this transport trolley guarantee high stability. The wheels stand out for their extremely low rolling resistance and low dead weight. The contact surfaces of the cassettes are equipped with non-slip waffle rubber.
The transport trolley meets the highest quality standards. GKS-PERFEKT transport trolleys have been proven worldwide for decades, are robust, and have an exceptionally long service life. Every transport trolley is 100% inspected and tested before delivery. You receive a universally applicable transport trolley that can be used truly anywhere, whether in the workshop, industrial plant, or production facility.

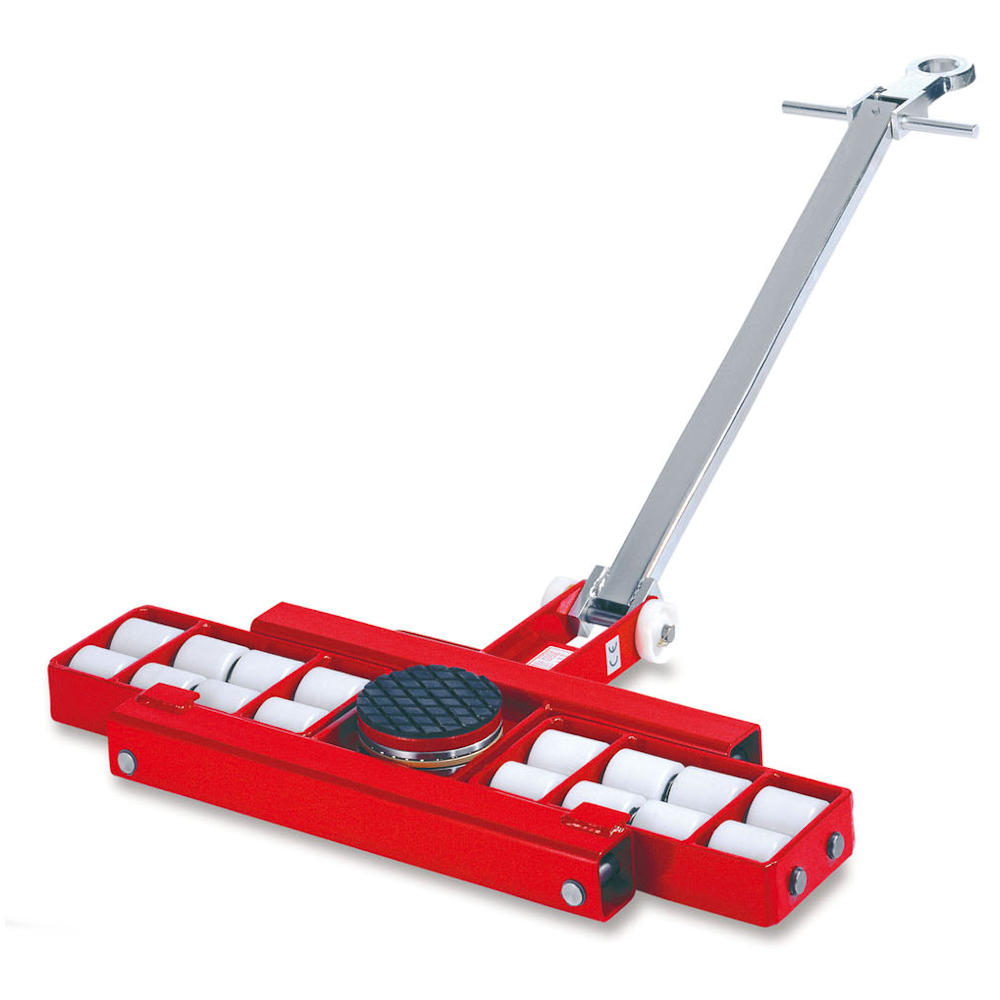

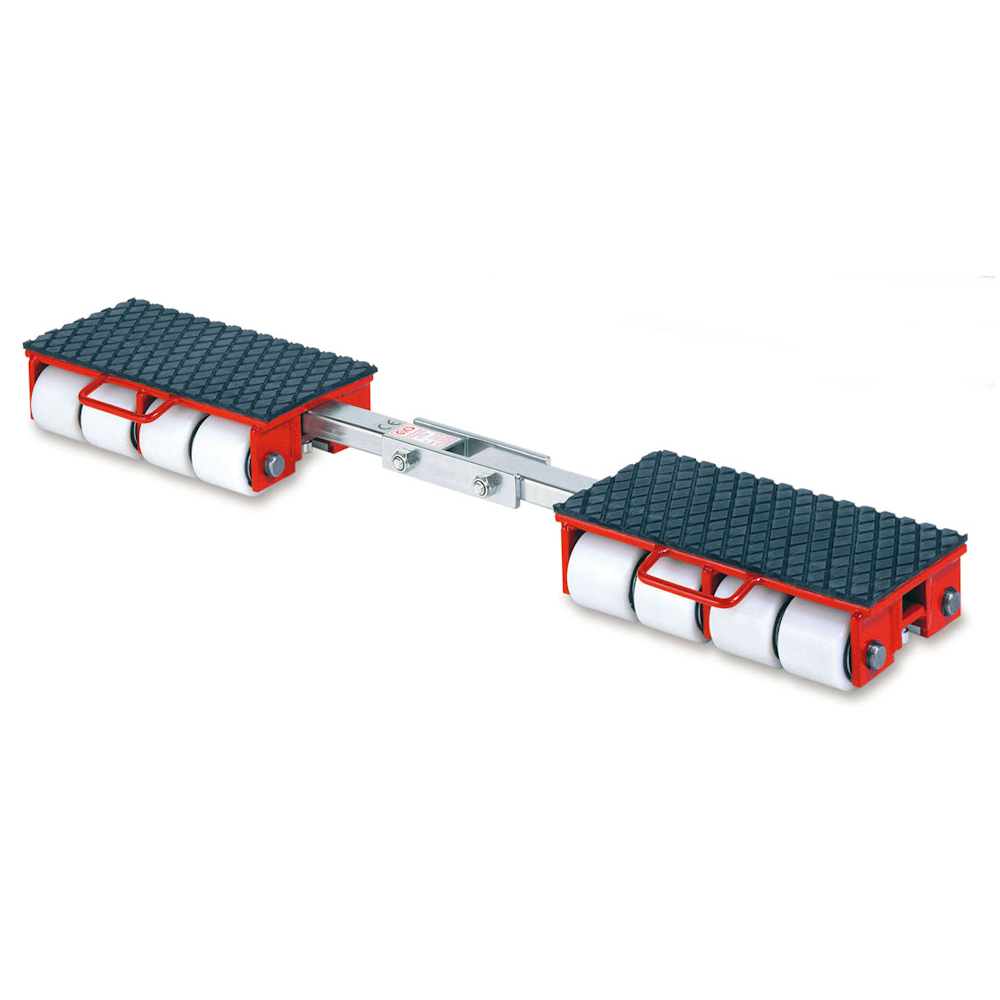

The set, consisting of the steerable transport trolley L18 and the fixed transport trolley F18, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 36 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features of the F18-L18
-
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
Tow bars made of exceptionally durable materials
- Sturdy construction
- Technical Specifications for the F18-L18
-
F18 L18 Item Number 10215 10216 Loading height in mm 110 110 Number of wheels (85 x 85 / 140 x 85) 16 16 Contact surface per cartridge in mm 200 x 407 - Connecting bar in mm - - Swivel plate Ø / steering angle - 170 / ± 90° Steering rod in mm - 1080 Overall dimensions (L x W) in mm - 1030 x 620 Net weight in kg 55,6 88,2 Load capacity in metric tons 18 18 Total Load Capacity F18 / L18 36 metric tons - Informational Video and More
-
More information: transport trolleys F18-L18
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
Tow bars made of exceptionally durable materials
| F18 | L18 | |
| Item Number | 10215 | 10216 |
| Loading height in mm | 110 | 110 |
| Number of wheels (85 x 85 / 140 x 85) | 16 | 16 |
| Contact surface per cartridge in mm | 200 x 407 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 170 / ± 90° |
| Steering rod in mm | - | 1080 |
| Overall dimensions (L x W) in mm | - | 1030 x 620 |
| Net weight in kg | 55,6 | 88,2 |
| Load capacity in metric tons | 18 | 18 |
| Total Load Capacity F18 / L18 | 36 | metric tons |
