transport trolley TL40
40 metric tons
The transport trolley TL60

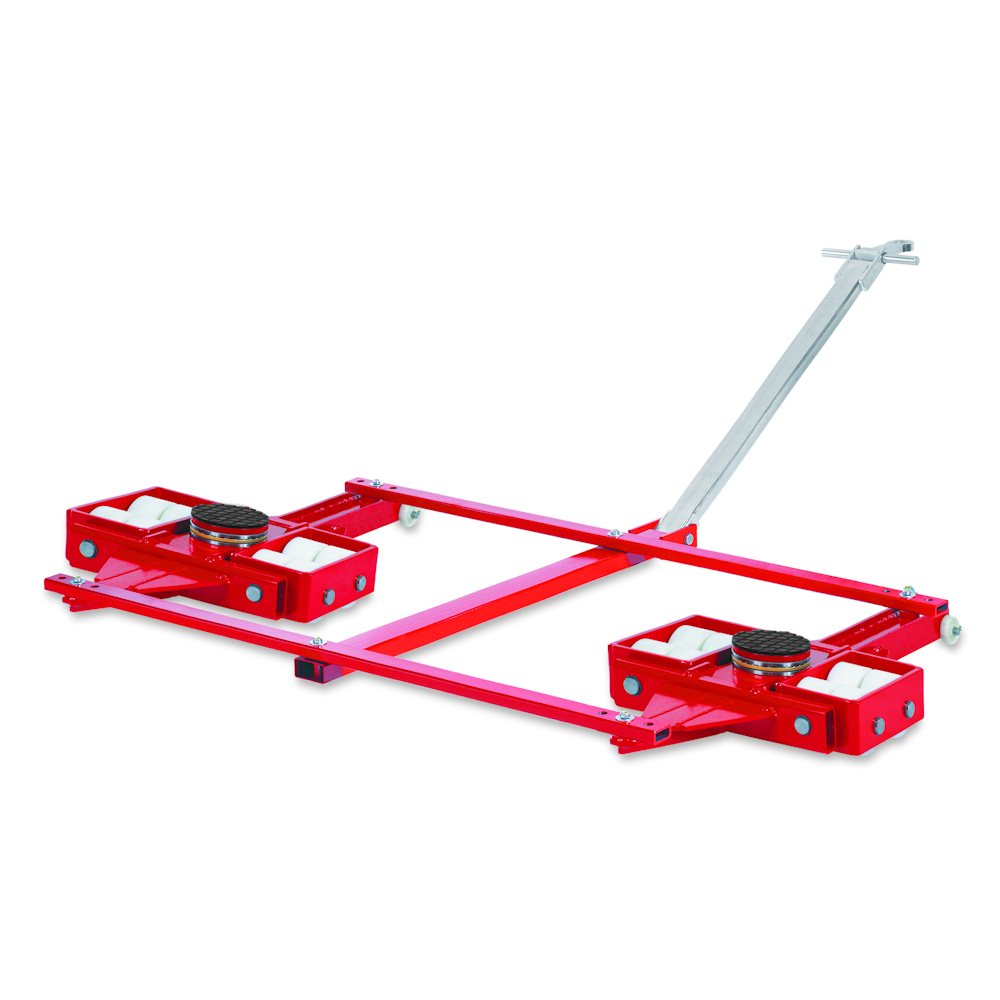

The GKS TL40 tandemtransport trolley is a sturdy, warp-free welded construction. The chassis cassettes of this chassis ensure high stability. wheels s stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are fitted with non-slip waffle-patterned rubber.
transport trolley TL40 meets the highest quality standards. GKS-PERFEKT's transport trolleys have been decades proven worldwide, robust, and exceptionally durable. The transport trolley TL40 is 100% inspected and tested before shipment. You’ll receive a universally applicable heavy-dutytransport trolley rated for 40 metric tons, which can truly be used anywhere—whether in the workshop, on the factory floor, or in manufacturing.
- Features of the TL40
-
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
- Technical Specifications for the TL40
-
TL40 Item Number 11148 Loading height in mm 180 Quantity wheels (140 x 85) 16 Swivel plate Ø / steering angle 250/ ± 45 Adjustable in mm 1260–1600, 3-fold Handlebar with tow eye in mm 1620 Net weight in kg 311,8 Load capacity in metric tons 40 - Informational Video and More
-
More information: Tandem-transport trolley TL40
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport landing gear... is just a click away
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
| TL40 | |
| Item Number | 11148 |
| Loading height in mm | 180 |
| Quantity wheels (140 x 85) | 16 |
| Swivel plate Ø / steering angle | 250/ ± 45 |
| Adjustable in mm | 1260–1600, 3-fold |
| Handlebar with tow eye in mm | 1620 |
| Net weight in kg | 311,8 |
| Load capacity in metric tons | 40 |
