Hydraulic toe jack
V5-EX - 5 metric tons

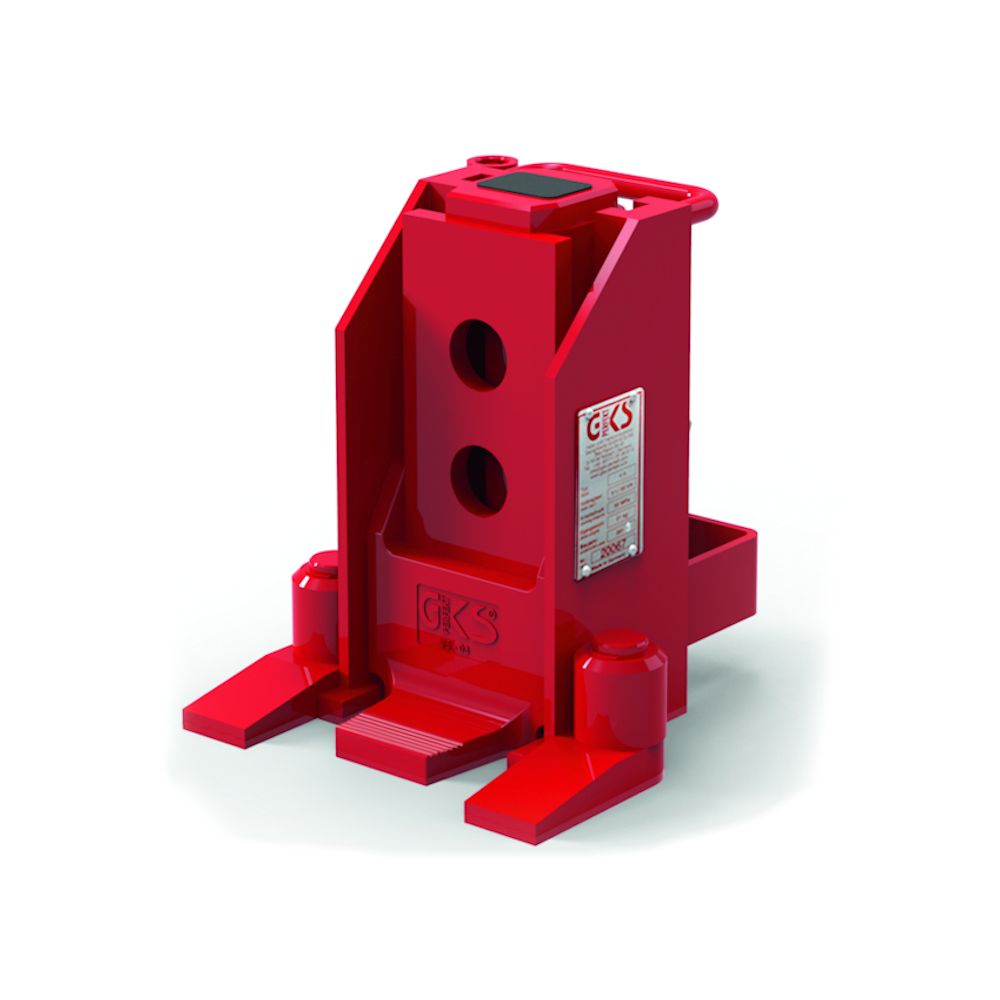

The toe jack V5-EX

The toe jack V5-EX is the compact 5-metric-ton solution for all lifting tasks that require distance from the load. The toe jack has no built-in hydraulics and is operated via an external PV hand pump or PE electric pump—this allows the operator to work from a safe distance and reach even hard-to-access lifting points. Weighing just 16.6 kg and featuring a lifting eye height of 15 mm, the V5-EX can be positioned quickly; it has a stroke of 140 mm. When combined with multiple lifters and a synchronous pressure unit, machines can be lifted smoothly and in a controlled manner. 100% tested before shipment—safety and quality from the original “Made in Germany.”

Features of the V5-EX

  • Ideal for hard-to-reach areas and applications requiring a safe working distance
  • Operated using a PV hand pump (up to two toe jacks) or a PE electric pump (up to four toe jacks)
  • No internal hydraulics—lightweight, compact design
  • Equal load capacity on the head plate and the tab: 5 metric tons
  • Can also be combined with a synchronous actuator for uniform lifting at multiple points

V5-EX Technical Specifications

Item Number 10185
Total load capacity in metric tons 5
Working pressure in bar 520
Minimum loading height using safety toe 15
Lifting height (mm) 140
Adjustability of the safety toe 3-way
Loading height using top plate in mm 252
External dimensions (L x W x H) 227 x 212 x 252
Net weight with oil, in kg 16,6

V5-EX - The Facts

  • Precise lowering by opening the drain plug
  • 3-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
  • CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
  • Modular design for easy maintenance
  • High-quality materials, expertly crafted
  • Sturdy and durable
  • Cost-effective operation and easy maintenance
  • Precision guides for accurate, low-wear reciprocating motion


V5-EX: Informational Video and More

More information: Hydraulic toe jack V5-EX

Our lifters in action... click here to watch the video

Real-world application examples... see here

An exploded view of the toe jack is just a click away
