ROBOT-40 Transport System
40 metric tons

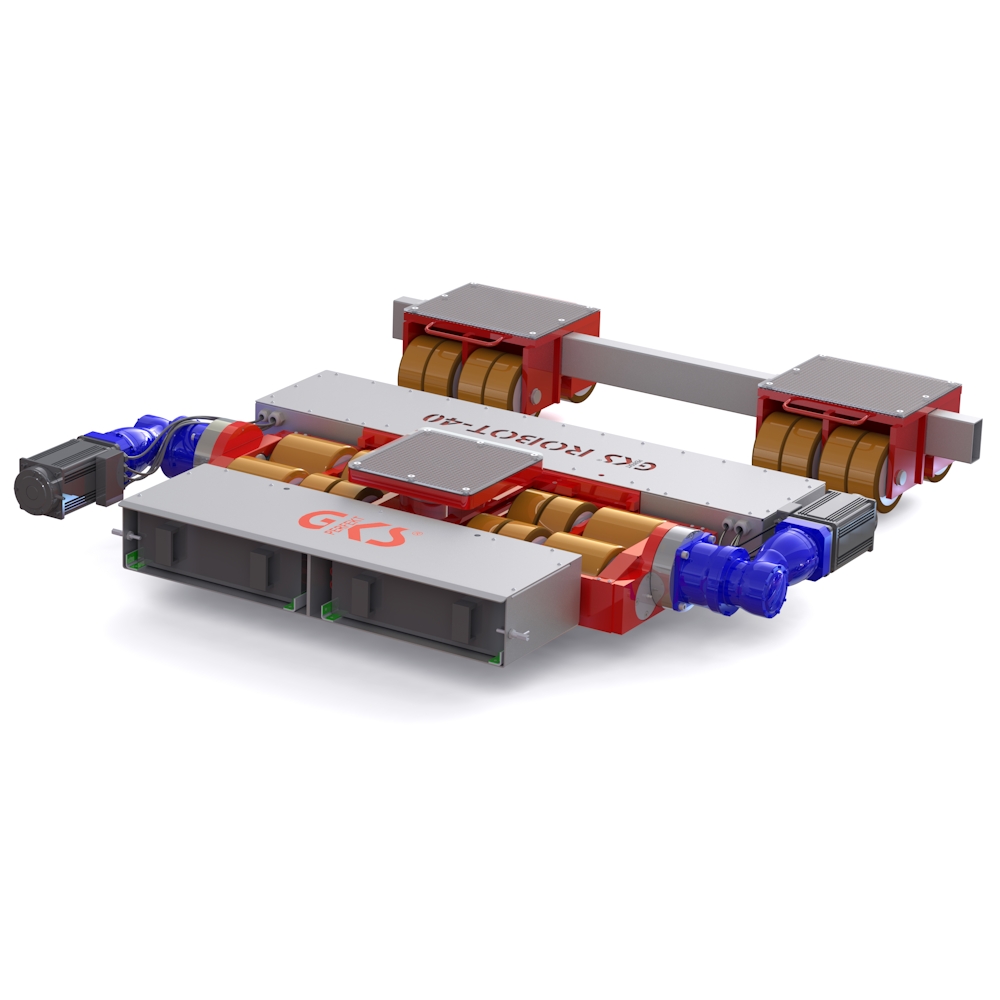

The transport system ROBOT-40
The ROBOT-40 transport system from GKS-PERFEKT is an outstanding battery-powered heavy-duty transport system designed for efficient and precise load transport in industrial environments. With a load capacity of up to 40 metric tons, the ROBOT-40 impresses with its outstanding performance.
Thanks to its remote-controlled operation , it enables easy and safe navigation even in tight workspaces. The ROBOT-10’s compact design makes it extremely maneuverable and versatile.
Thanks to its high-performance battery, the ROBOT-40 is independent of external power sources, offering maximum mobility. The ROBOT-40 from GKS-PERFEKT combines power, precision, and reliability in an innovative transport system that significantly increases the efficiency of your in-plant transport processes.
Discover a new dimension of load transport with the ROBOT-40!
ROBOT-40 Overview
- Features
-
- The radio remote control is operated using two toggle switches for forward and reverse movement.
- The travel speed can be controlled proportionally. The L-ROBOT can rotate in place while under load. Interference from other frequencies is detected, and the control system shuts down.
- Option with lifting turntable (40 mm stroke)
- Selectable synchronous drive function for precise straight-line travel
- Options: Quick charger (4 hours), transport case with ramp, set of replacement batteries, toe jack V15 with extended stroke (270 mm)
- The radio remote control is operated using two toggle switches for forward and reverse movement.
- Technical Specifications
-
L-ROBOT-20 F-ROBOT-20 Item Number 13735 13636 Drive DC Motor (24 V / 1.5 kW) - Battery Type Lithium-ion - Reverse Parking Sensor yes - Max. incline ** ±3% - Loading height in mm 250 250 Number of special load rollers 4 + 8 / 154 + 76 mm 16 / 76 mm External dimensions (L x W x H) in mm 1046 x 1660 x 250 - Contact surface in mm 320 x 320 310 x 379 Adjustable spacer bar in mm - 758–1600 Load capacity in metric tons 20 20 Total Load Capacity F + L in metric tons 40 Total weight in kg 490,0 193,0 ** On inclines or declines, a suitable anti-rollaway device is required
- Description
- The drive power comes from a 24-volt lithium-polymer battery and is transmitted via a programmable motor controller to the two brushless DC motors, each with a maximum output of 1,500 watts.The torque is transmitted to the drive rollers via gearboxes and gear stages.The radio remote control transmits the operator's signals to the motor controller via a CAN bus, and the transmitter's display shows the current operating status.The entire system consists of a powered, steerable L-ROBOT and a non-powered, rigid F-ROBOT. It thus features a proven 3-point support configuration. The system operates at two travel speeds: 11 and 5.5 m/min.
- Informational Video and More
-
More information: ROBOT-40
Our ROBOTS in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- The radio remote control is operated using two toggle switches for forward and reverse movement.
- The travel speed can be controlled proportionally. The L-ROBOT can rotate in place while under load. Interference from other frequencies is detected, and the control system shuts down.
- Option with lifting turntable (40 mm stroke)
- Selectable synchronous drive function for precise straight-line travel
- Options: Quick charger (4 hours), transport case with ramp, set of replacement batteries, toe jack V15 with extended stroke (270 mm)
| L-ROBOT-20 | F-ROBOT-20 | |
| Item Number | 13735 | 13636 |
| Drive | DC Motor (24 V / 1.5 kW) | - |
| Battery Type | Lithium-ion | - |
| Reverse Parking Sensor | yes | - |
| Max. incline ** | ±3% | - |
| Loading height in mm | 250 | 250 |
| Number of special load rollers | 4 + 8 / 154 + 76 mm | 16 / 76 mm |
| External dimensions (L x W x H) in mm | 1046 x 1660 x 250 | - |
| Contact surface in mm | 320 x 320 | 310 x 379 |
| Adjustable spacer bar in mm | - | 758–1600 |
| Load capacity in metric tons | 20 | 20 |
| Total Load Capacity F + L in metric tons | 40 | |
| Total weight in kg | 490,0 | 193,0 |
** On inclines or declines, a suitable anti-rollaway device is required
