transport trolley TL60
60 metric tons

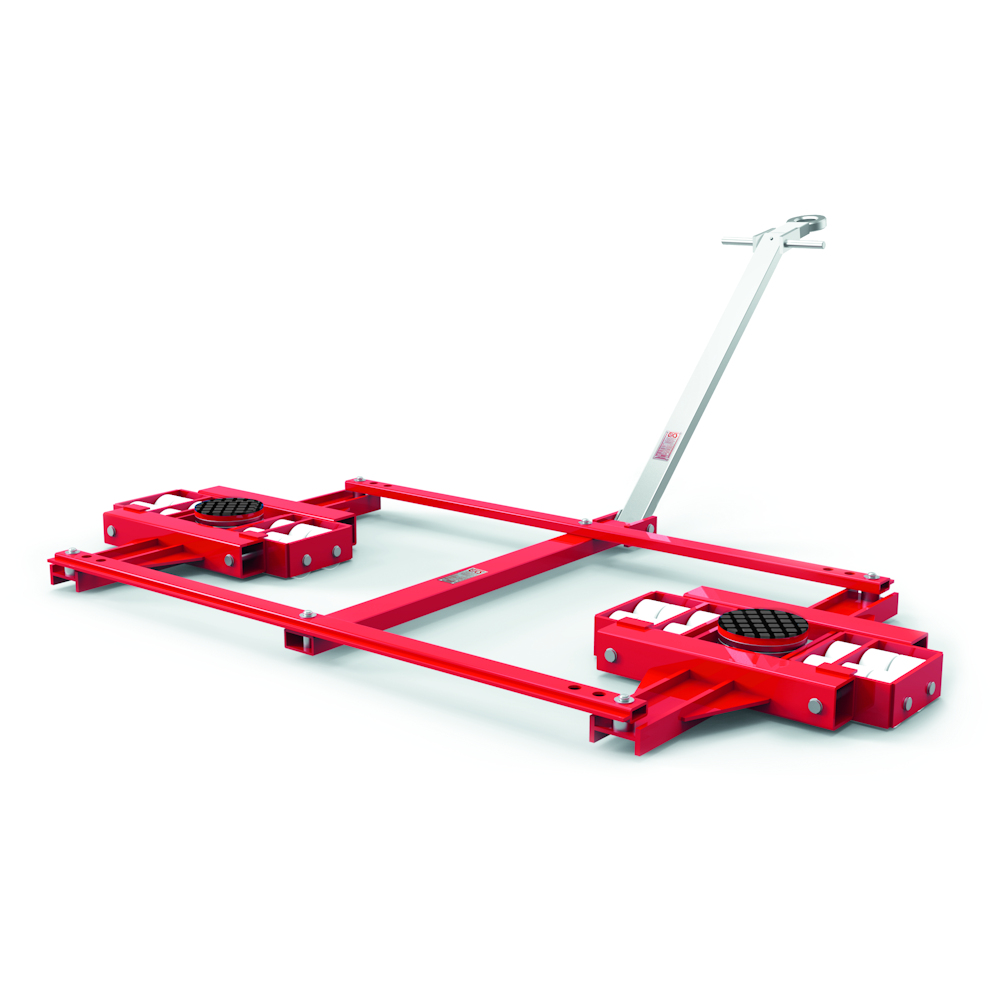

The transport trolley TL60
The GKS TL60 tandemtransport trolley is a sturdy, warp-free welded construction. The chassis cassettes of this chassis guarantee high stability. The wheels s stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are equipped with non-slip waffle-patterned rubber.
transport trolley TL60 meets the highest quality standards. GKS-PERFEKT's transport trolleys have been decades proven worldwide for decades, robust, and exceptionally durable. The transport trolley TL60 is 100% inspected and tested before shipment. You’ll receive a universally applicable heavy-dutytransport trolley designed for a 60-metric-ton load that can truly be used anywhere—whether in the workshop, on the factory floor, or in production.
- Features of the TL60
-
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
- Technical Specifications for the TL60
-
TL60 Item Number 12035 Loading height in mm 180 Quantity wheels (140 x 85) 24 Swivel plate Ø / steering angle 250/ ± 45 Adjustable in mm 1175, 3-way Handlebar with tow eye in mm 1620 Net weight in kg 570,0 Load capacity in metric tons 60 - Informational Video and More
-
More information: Tandem-transport trolley TL60
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport landing gear... is just a click away
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
| TL60 | |
| Item Number | 12035 |
| Loading height in mm | 180 |
| Quantity wheels (140 x 85) | 24 |
| Swivel plate Ø / steering angle | 250/ ± 45 |
| Adjustable in mm | 1175, 3-way |
| Handlebar with tow eye in mm | 1620 |
| Net weight in kg | 570,0 |
| Load capacity in metric tons | 60 |
