rotating transport trolley RL8
8 metric tons

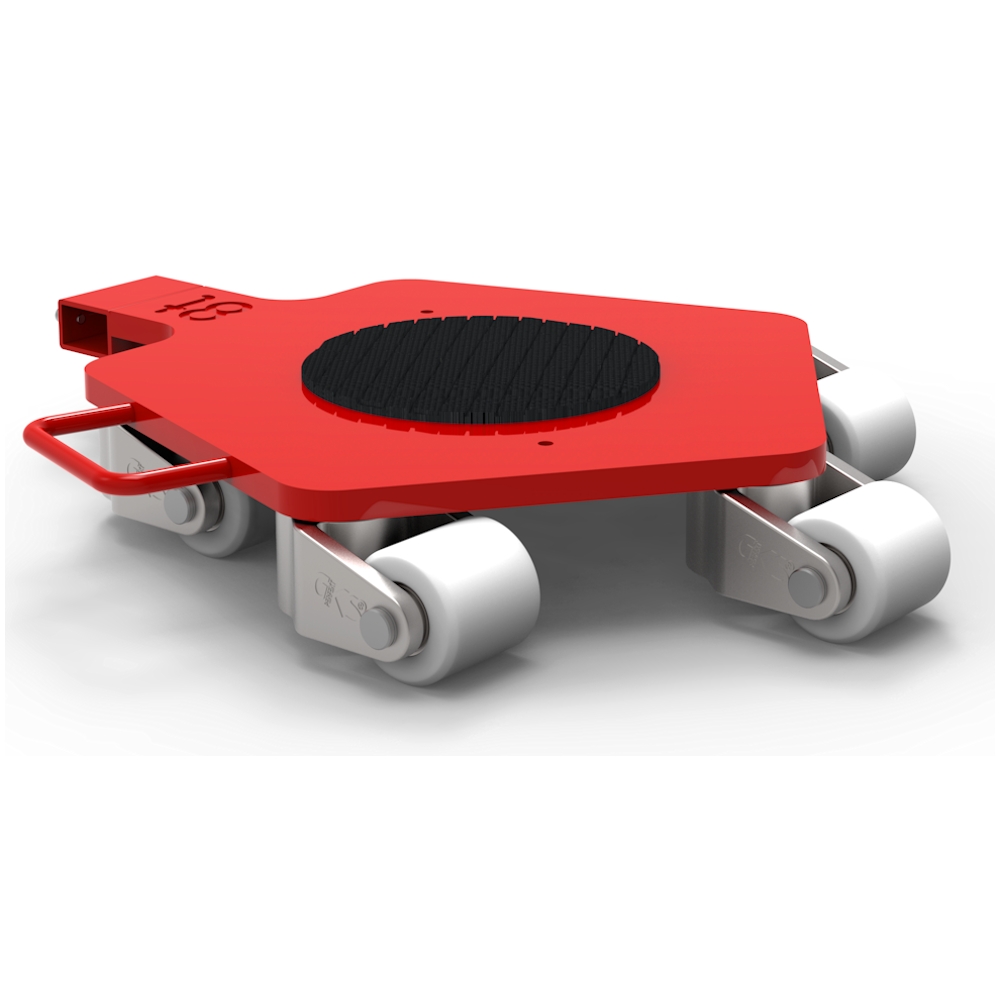

The rotating transport trolley RL8
When machines or other heavy equipment weighing up to 8 metric tons need to be moved, the rotating transport trolley RL8 is the best choice. It’s easy to operate and can handle loads of up to 8 metric tons. For the easy and safe transport of heavy loads within a facility.
The rotating transport trolley stands out thanks to exceptional stability and premium quality. It can rotate 360° on the spot, making it ideal for moving heavy loads in very tight spaces . Thanks to its low-profile design, the rotating transport trolley can be easily maneuvered under the load. Its ability to rotate makes positioning and alignment easier.
- Features of the RL8
-
- rotating transport trolleys can also be combined with F or TL chassis of the same height
The RL8 rotating transport trolley is also available in a nickel-plated version for use in cleanrooms. It is ideal for meeting the requirements of cleanrooms, such as those used in chip manufacturing, the food industry, the pharmaceutical industry, and the chemical industry. Its technical specifications are the same as those of the standard models.
- rotating transport trolleys can also be combined with F or TL chassis of the same height
- Technical Specifications for the RL8
-
Item Number 13817 Total load capacity in metric tons 8 Loading height in mm 118 Number of wheels 5 Dimensions of the wheels in mm 85 x 85 Overall dimensions (L x W x H) in mm 667 x 512 x 118 Total weight in kg 60 - Informational Video and More
-
More information: rotating transport trolley RL8
Our " rotating transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the landing gear... is just a click away
- rotating transport trolleys can also be combined with F or TL chassis of the same height
The RL8 rotating transport trolley is also available in a nickel-plated version for use in cleanrooms. It is ideal for meeting the requirements of cleanrooms, such as those used in chip manufacturing, the food industry, the pharmaceutical industry, and the chemical industry. Its technical specifications are the same as those of the standard models.
| Item Number | 13817 |
| Total load capacity in metric tons | 8 |
| Loading height in mm | 118 |
| Number of wheels | 5 |
| Dimensions of the wheels in mm | 85 x 85 |
| Overall dimensions (L x W x H) in mm | 667 x 512 x 118 |
| Total weight in kg | 60 |
