transport trolley TL20
20 metric tons

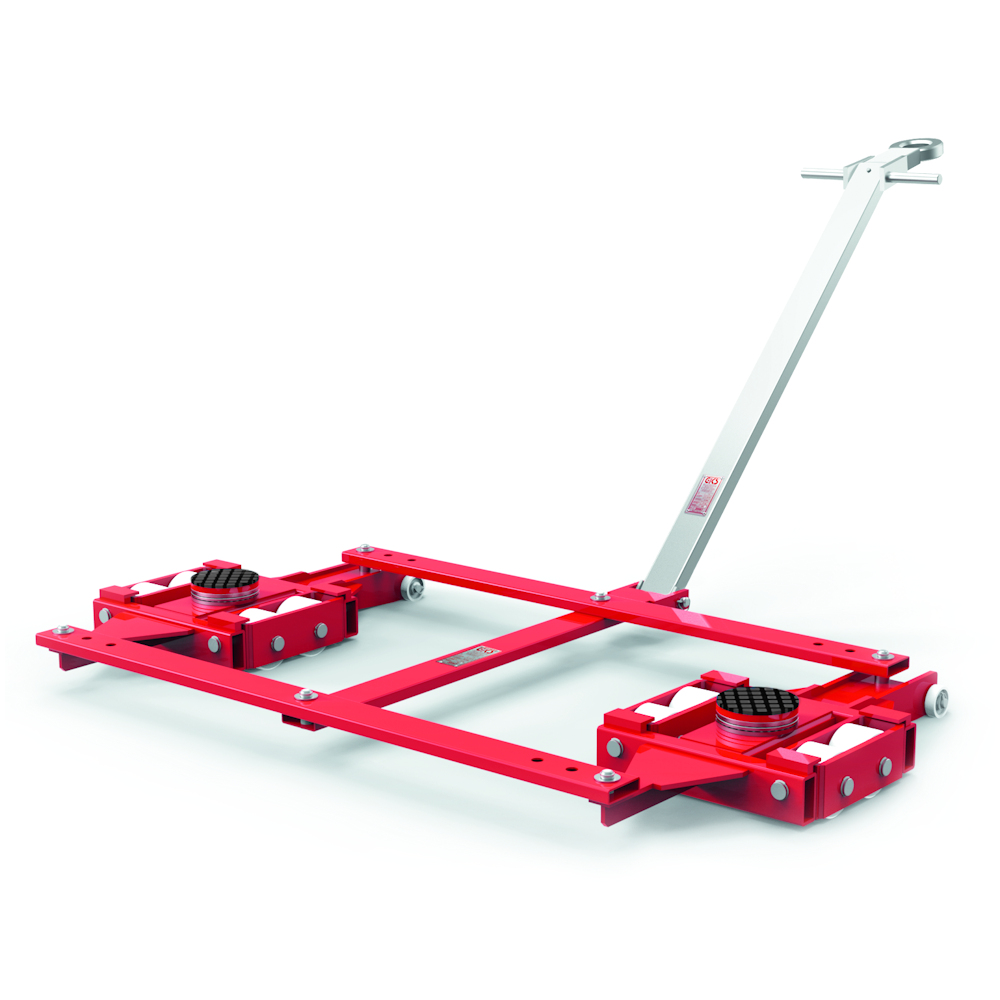

The transport trolley TL20
The GKS TL20 tandem-transport trolley is a sturdy, distortion-free welded construction. The chassis cassettes of this chassis guarantee high stability. wheels s stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are equipped with non-slip waffle-patterned rubber.
The transport trolley TL20 meets the highest quality standards. GKS-PERFEKT's transport trolleys have been decades proven worldwide, robust, and exceptionally durable. The transport trolley TL20 is 100% inspected and tested before shipment. You’ll receive a universally applicable heavy-dutytransport trolley with a 20-metric-ton load capacity that can truly be used anywhere—whether in the workshop, on the factory floor, or in production.
- Features of the TL20
-
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
- Technical Specifications for the TL20
-
TL20 Item Number 11803 Loading height in mm 180 Number of wheels (85 x 85) 8 Swivel plate Ø / steering angle 170 / ± 45 Adjustable in mm 1260–1600, 3-fold Handlebar with tow eye in mm 1620 Net weight in kg 231,4 Load capacity in metric tons 20 - Informational Video and More
-
More information: Tandem-transport trolley TL20
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport landing gear... is just a click away
- Sturdy construction
- Ideal for loads that require a 4-point support
- Can be combined with F-series chassis of the same height
- Using two tandem landing gear sets makes it possible to achieve smaller turning radii
| TL20 | |
| Item Number | 11803 |
| Loading height in mm | 180 |
| Number of wheels (85 x 85) | 8 |
| Swivel plate Ø / steering angle | 170 / ± 45 |
| Adjustable in mm | 1260–1600, 3-fold |
| Handlebar with tow eye in mm | 1620 |
| Net weight in kg | 231,4 |
| Load capacity in metric tons | 20 |
