transport trolley F9-L9
9 / 18 metric tons
The transport trolley F9-L9
The GKS F9-L9 transport trolley is a sturdy, warp-free welded construction. The chassis cassettes of this chassis guarantee high stability. wheels stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are equipped with non-slip waffle-patterned rubber.
The transport trolley meets the highest quality standards. GKS-PERFEKT’s transport trolleys have been decades proven worldwide, robust, and exceptionally durable. The transport trolley F9 - L9 is 100% inspected and tested before shipment. You will receive a universally applicable heavy-duty transport trolley that can truly be used anywhere—whether in the workshop, on the shop floor, or in manufacturing.

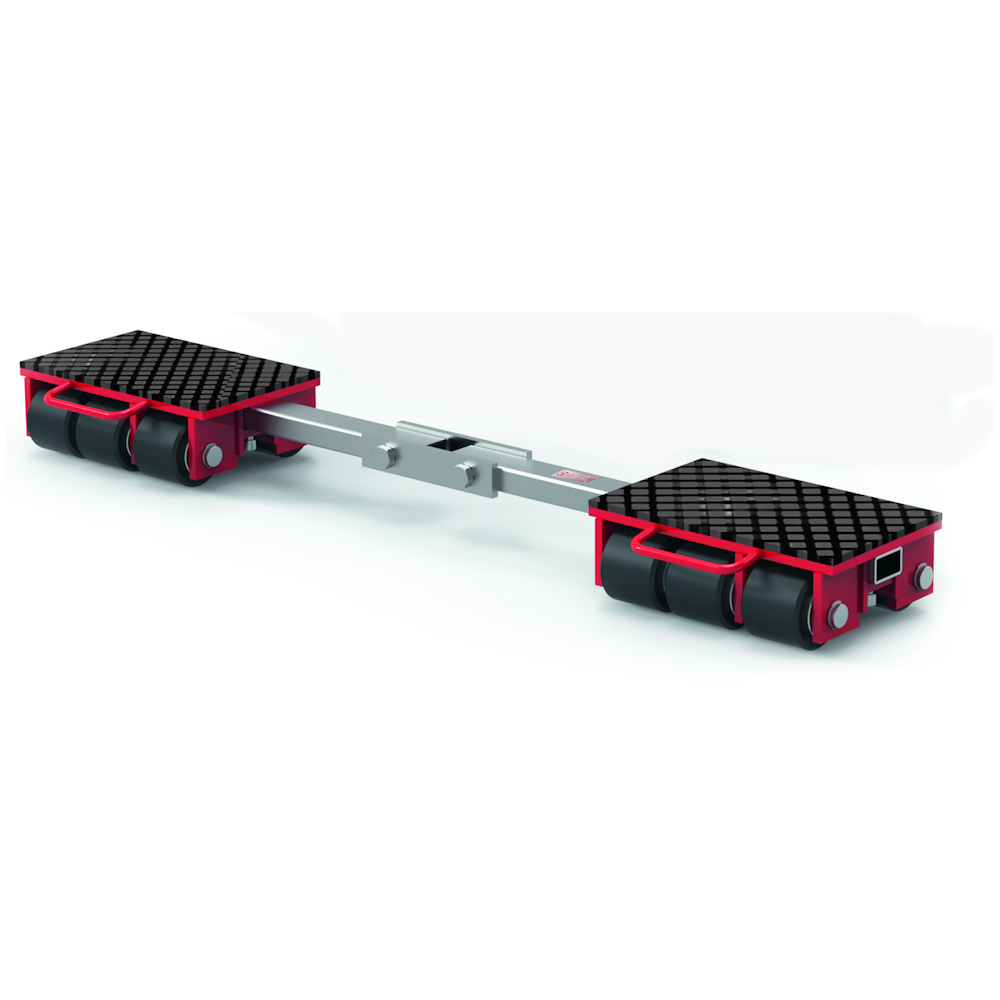

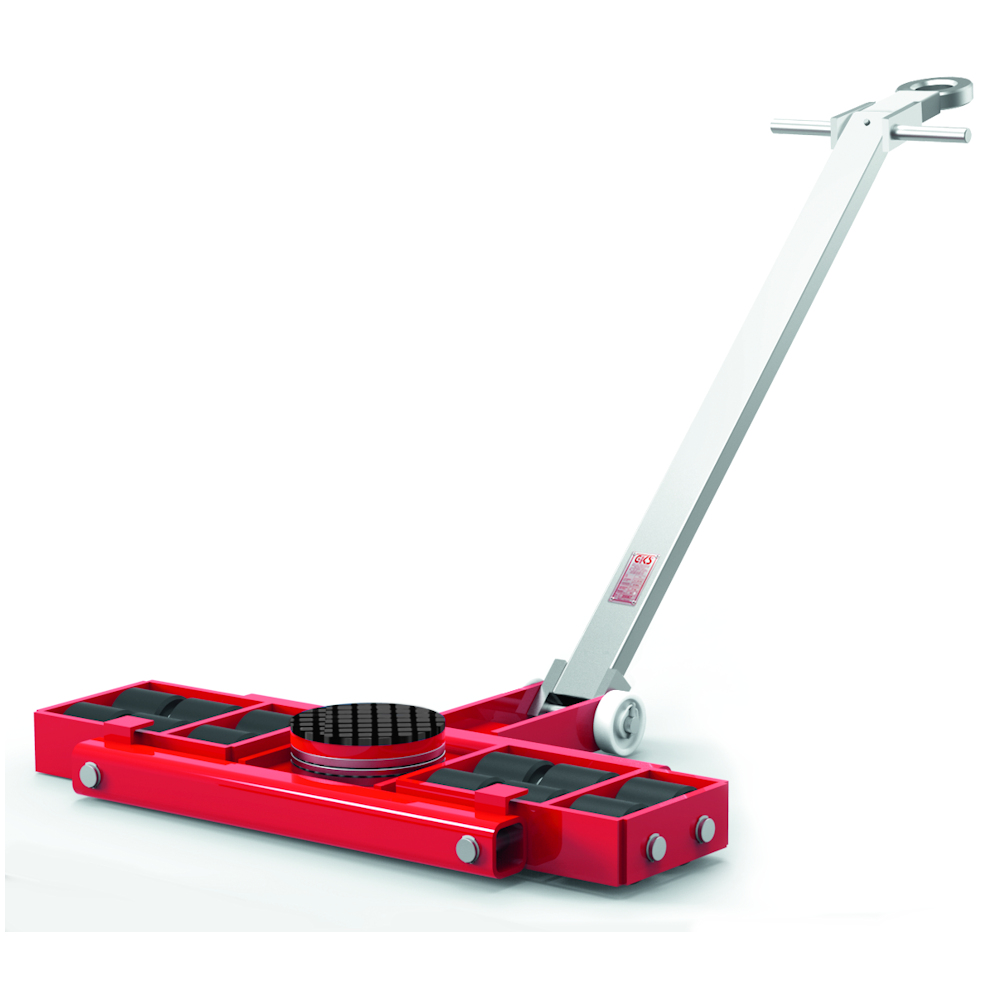

The set, consisting of the steerable transport trolley L9 and the fixed transport trolley F9, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 18 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features F9-L9
-
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
Can be combined with the TL6 / TL12 tandem undercarriages or the RL2 / 4 / 6 rotary undercarriages
Tow bars made of exceptionally durable materials
- Sturdy construction
- Technical Specifications for the F9-L9
-
F9 L9 Item Number 11070 11071 Loading height in mm 110 110 Number of wheels (85 x 85) 12 12 Contact surface per cartridge in mm 320 x 200 - Connecting bar in mm - - Swivel plate Ø / steering angle - 170 / ± 90° Steering rod in mm - 1080 Overall dimensions (L x W) in mm - 840 x 583 Net weight in kg 43,8 65,5 Load capacity in metric tons 9 9 Total Load Capacity F9 / L9 18 metric tons - Informational Video and More
-
More information: transport trolleys F6-L6
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
Can be combined with the TL6 / TL12 tandem undercarriages or the RL2 / 4 / 6 rotary undercarriages
Tow bars made of exceptionally durable materials
| F9 | L9 | |
| Item Number | 11070 | 11071 |
| Loading height in mm | 110 | 110 |
| Number of wheels (85 x 85) | 12 | 12 |
| Contact surface per cartridge in mm | 320 x 200 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 170 / ± 90° |
| Steering rod in mm | - | 1080 |
| Overall dimensions (L x W) in mm | - | 840 x 583 |
| Net weight in kg | 43,8 | 65,5 |
| Load capacity in metric tons | 9 | 9 |
| Total Load Capacity F9 / L9 | 18 | metric tons |
