transport trolley F6-L6
6 / 12 metric tons

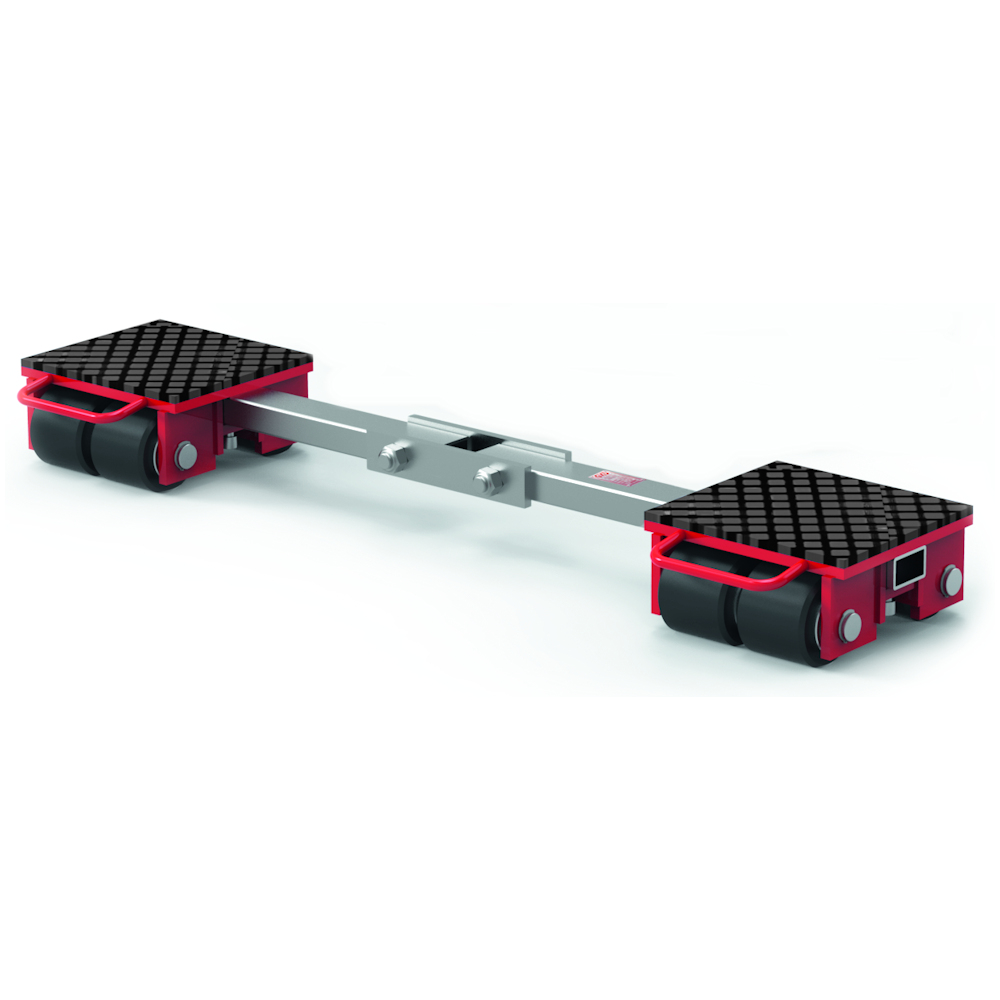

The transport trolley F6-L6
The GKS F6-L6 transport trolley is a sturdy, warp-free welded construction. The chassis cassettes of this system guarantee high stability. wheels stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are equipped with non-slip waffle-patterned rubber.
This transport trolley meets the highest quality standards. GKS-PERFEKT’s transport trolleys have been decades proven worldwide, robust, and exceptionally durable. The transport trolley F6 - L6 is 100% inspected and tested before shipment. You will receive a universally applicable heavy-duty transport trolley that can truly be used anywhere—whether in the workshop, on the job site, or on the production floor.
The set, consisting of the steerable transport trolley L6 and the fixed transport trolley F6, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 12 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features F6-L6
-
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
- wheels , tested over many years and with a long shelf life
- Tow bars made of exceptionally durable materials
- Sturdy construction
- Technical Specifications for the F6-L6
-
F6 L6 Item Number 10208 10209 Loading height in mm 110 110 Number of wheels (85 x 85) 8 8 Contact surface per cartridge in mm 200 x 220 - Connecting bar in mm 1030 - Swivel plate Ø / steering angle - 170 / ± 90° Steering rod in mm - 1080 Overall dimensions (L x W) in mm - 610 x 520 Net weight in kg 31,0 46,4 Load capacity in metric tons 6 6 Total Load Capacity F6 / L6 12 metric tons - Informational Video and More
-
More information: transport trolleys F6-L6
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
- wheels , tested over many years and with a long shelf life
- Tow bars made of exceptionally durable materials
| F6 | L6 | |
| Item Number | 10208 | 10209 |
| Loading height in mm | 110 | 110 |
| Number of wheels (85 x 85) | 8 | 8 |
| Contact surface per cartridge in mm | 200 x 220 | - |
| Connecting bar in mm | 1030 | - |
| Swivel plate Ø / steering angle | - | 170 / ± 90° |
| Steering rod in mm | - | 1080 |
| Overall dimensions (L x W) in mm | - | 610 x 520 |
| Net weight in kg | 31,0 | 46,4 |
| Load capacity in metric tons | 6 | 6 |
| Total Load Capacity F6 / L6 | 12 | metric tons |
