Hydraulic toe jack
V10-EX - 10 metric tons

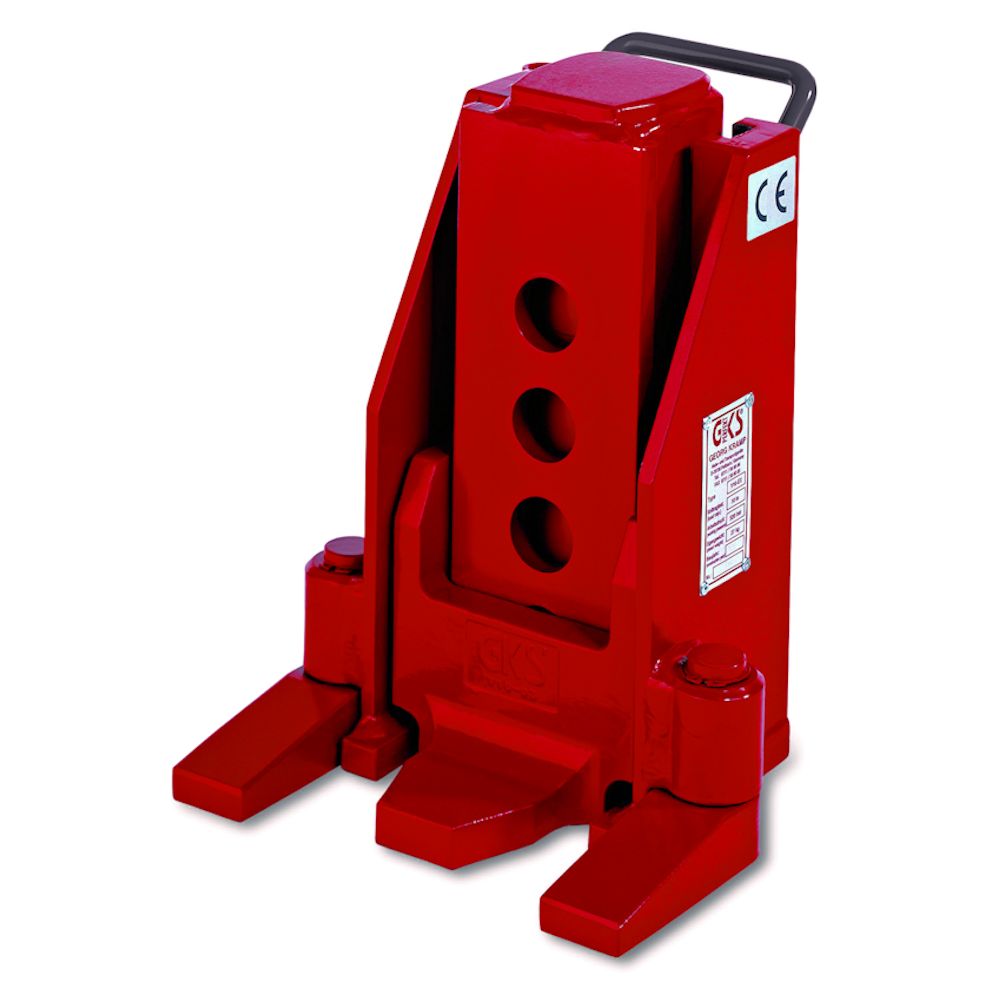

The toe jack V10-EX

With the hydraulic toe jack V10-EX, you can lift loads of up to 10 metric tons in places where conventional lifts cannot reach. The toe jack is operated via an external PV hand pump or PE electric pump—using a hydraulic hose from a safe distance, even at tight or hard-to-reach lifting points. The 4-way adjustable safety strap engages starting at 20 mm and lifts up to 160 mm; the safety valve prevents the lifting of loads that exceed the permissible weight. Weighing only 27 kg, the V10-EX is significantly lighter than comparable jacks with integrated pumps. When used in conjunction with a synchronous pressure unit, multiple V10-EX units lift absolutely uniformly—proven GKS quality, theoriginal “Made in Germany.”

Features of the V10-EX

  • Ideal for hard-to-reach areas and when a safe distance is required
  • Operated using a PV hand pump (up to two toe jacks) or a PE electric pump (up to four toe jacks)
  • No separate hydraulic system—lightweight, compact design
  • Equal load capacity on the head plate and tab: 10 metric tons
  • Can be used with a synchronous printing unit

Technical Specifications for the V10-EX

Item Number 10186
Total load capacity in metric tons 10
Working pressure in bar 520
Minimum loading height using safety toe 20
Lifting height (mm) 160
Adjustability of the safety toe 4-way
Loading height using top plate in mm 310
External dimensions (L x W x H) 280 x 237 x 310
Net weight with oil, in kg 27,0

V10-EX - Facts

  • Precise lowering by opening the drain plug
  • 4-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
  • CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
  • Modular design for easy maintenance
  • High-quality materials, expertly crafted
  • Sturdy and durable
  • Cost-effective operation and easy maintenance
  • Precision Guides

V10-EX: Informational Video and More

More information: Hydraulic toe jack V10-EX

Our lifters in action... click here to watch the video

Real-world application examples... see here

An exploded view of the toe jack is just a click away
