Hydraulic toe jack
V20 - 20 metric tons

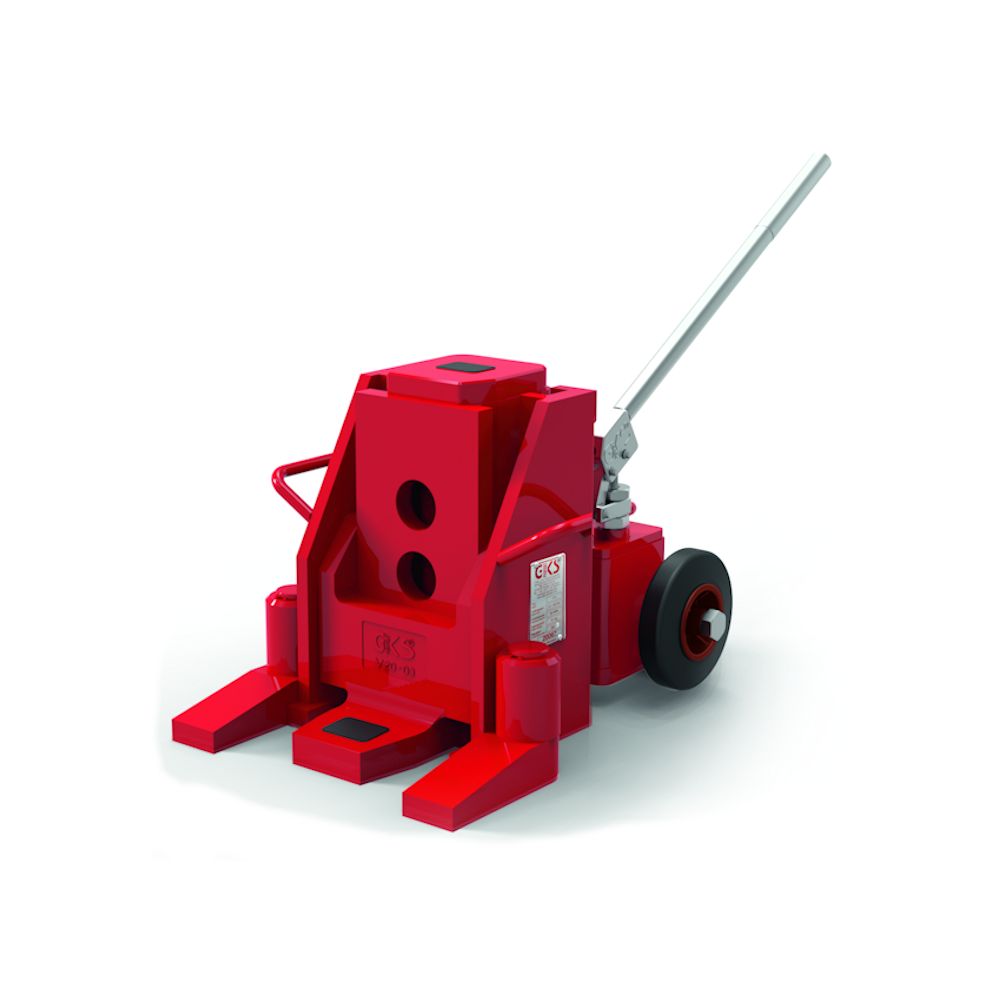

The toe jack V20
The hydraulic toe jack V20 is the most powerful GKS-toe jack s with a built-in pump: 20 metric tons of full-load capacity, 160 mm of lifting height, and a quick-lift feature that provides three times the travel per pump stroke, noticeably speeding up the work. Heavy machinery, transformers, or plant components can be safely lifted from a clearance height of 30 mm—without a crane or electrical connection. A safety valve reliably protects both the unit and the operator from overload. Thanks to the “ wheels ,” the V20 can be moved to the work site with minimal strain on the back, despite its performance class. 100% tested before delivery and proven worldwide for decades: the heavy-dutytoe jack from GKS-PERFEKT, the original “Made in Germany.”
V20 Features
- High-speed stroke with 3 times the travel per stroke – faster lifting of heavy loads
- Back-friendly transport by tilting the load onto the lift's travelwheels
- Equal load capacity on the head plate and tab: a full 20 metric tons
- Can be optionally expanded with a PV hand pump or a PE electric pump
V20 Technical Specifications
| Item Number | 10184 |
| Total load capacity in metric tons | 20 |
| Working pressure in bar | 520 |
| Minimum loading height using safety toe | 30 |
| Lifting height (mm) | 160 |
| Adjustability of the safety toe | 3-way |
| Loading height using top plate in mm | 325 |
| External dimensions (L x W x H) | 425 x 326 x 325 |
| Net weight with oil, in kg | 70,8 |
V20 - The Facts
- Lifting function via a manual pump lever; precise lowering by opening the drain plug
- 3-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
- wheels for easy, convenient handling
- CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
- Modular design for easy maintenance
- High-quality materials crafted to the highest standards—sturdy and durable
- Cost-effective operation, easy maintenance, precision guides
- Also available as a nickel-plated cleanroom device—ideal for chip manufacturing and the food, pharmaceutical, and chemical industries
