Hydraulic toe jack
U6 - 6 tons

toe jack , U6

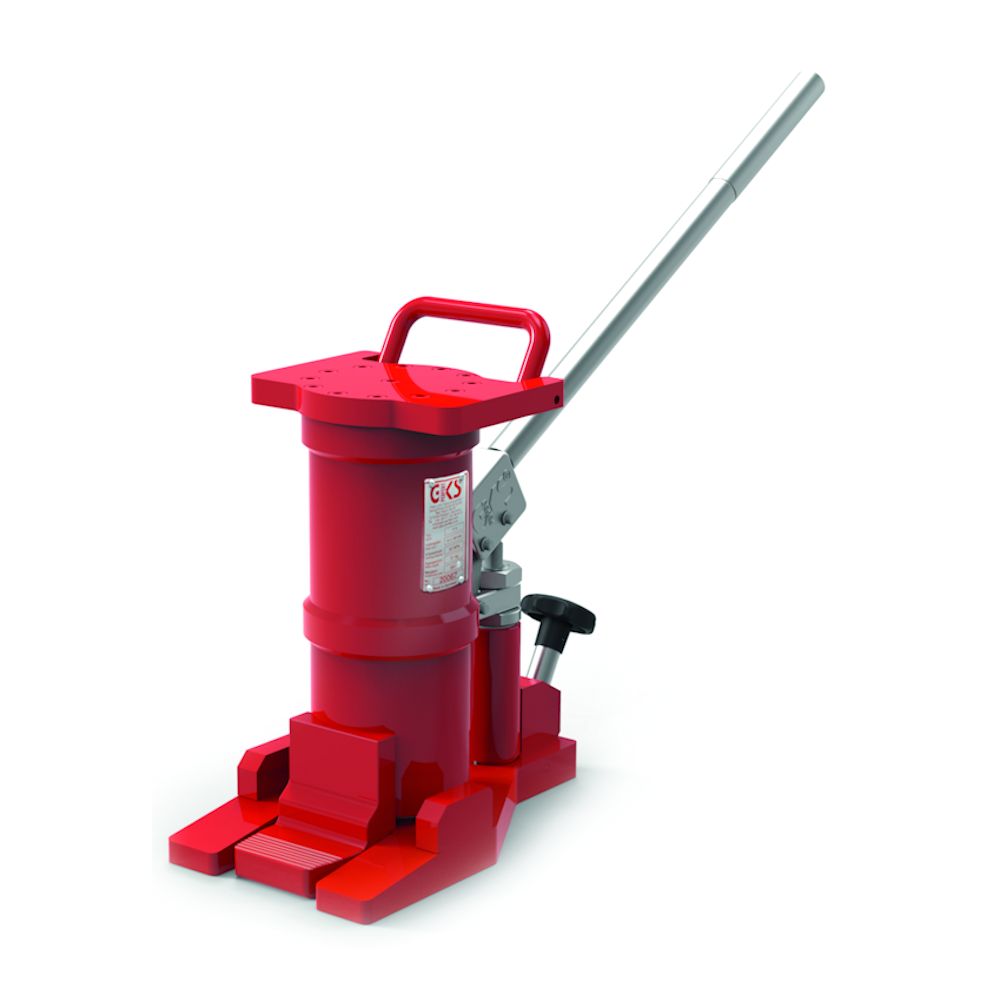

The toe jack U6 is the all-purpose unit in the GKS product line: It is the only lift in the series that operates both vertically and horizontally—for lifting machines as well as for pushing, moving, and aligning loads up to 6 metric tons. With a working pressure of 720 bar, a slim design just 146 mm wide, and a weight of 16.4 kg, the hydraulic toe jack can fit into even the tightest spaces. The clamp engages at 18 mm, and the stroke is 115 mm. A safety valve prevents overloading, and the integrated pump makes the U6 self-sufficient for use anywhere—in assembly, plant construction, and machine alignment. 100% tested: the flexible all-rounder, the original “Made in Germany.”
