Hydraulic toe jack
G10 - 10 tons

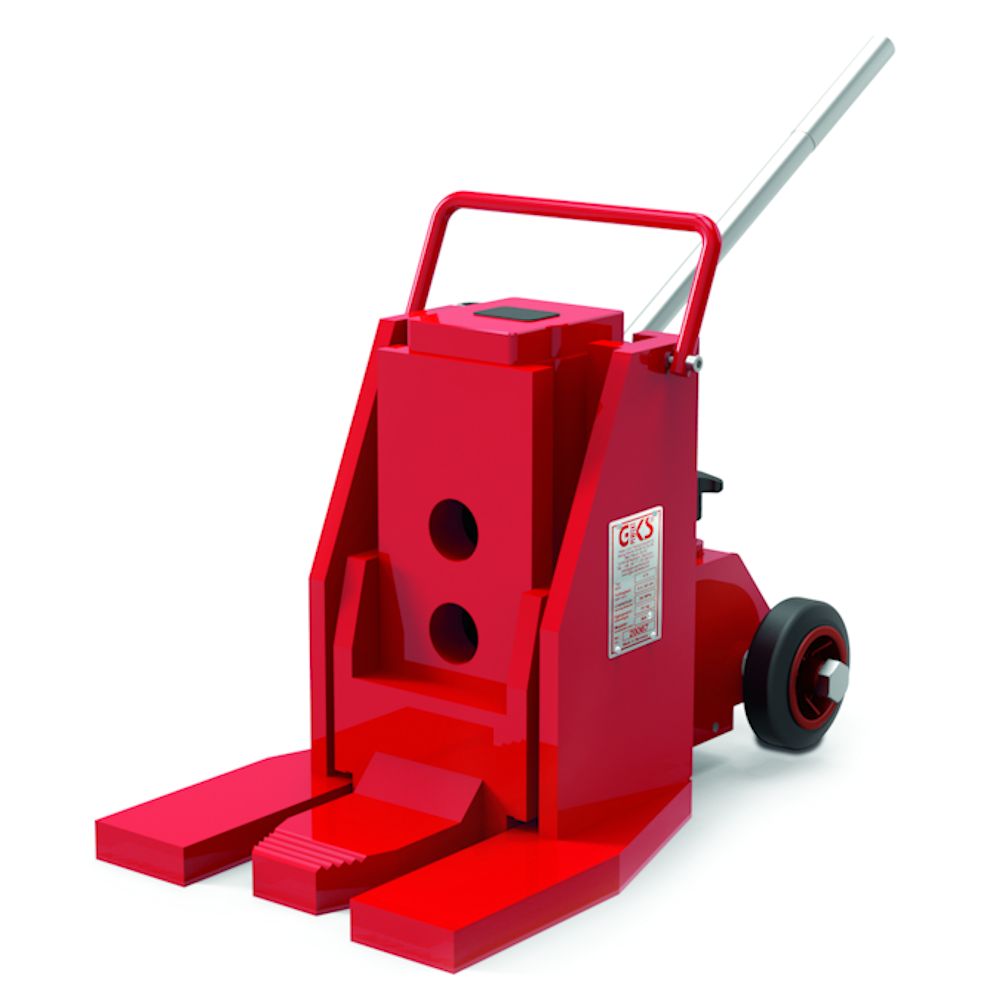

The toe jack G10

For heavy-duty forklifts and industrial vehicles weighing up to 10 metric tons, the toe jack G10 is the safe lifting solution for workshops and service centers. Like its smaller counterpart, the G5, the G10 features sturdy support feet and an extended safety strap with grooves—ensuring the load remains secure and stable, even during maintenance work beneath the raised vehicle. The 3-way adjustable, forged support plate starts at 30 mm, and the 140 mm stroke provides ample clearance for tire, brake, and axle work. With an overload safety valve and an integrated hydraulic pump for self-contained operation, the G10 is 100% inspected and tested before shipment—proven lifting technology, theoriginal “Made in Germany.”

Features of the G10

  • Specifically designed for the maintenance of forklifts and other industrial vehicles
  • Optimal stability thanks to sturdy feet and an extended safety tab with grooves
  • Equal load capacity on the head plate and tab: 10 metric tons

Technical Specifications for G10

Item Number 12378
Total load capacity in metric tons 10
Working pressure in bar 520
Minimum loading height using safety toe 30
Lifting height (mm) 140
Adjustability of the safety toe 3-way
Loading height using top plate in mm 318
External dimensions (L x W x H) 461 x 280 x 318
Net weight with oil, in kg 57,2

G10 - The Facts

  • Precise lowering by opening the drain plug
  • 3-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
  • CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
  • Modular design for easy maintenance
  • High-quality materials, expertly crafted
  • Sturdy and durable
  • Cost-effective operation and easy maintenance
  • Precision Guides
