ROBOT-10 transport system
10 metric tons

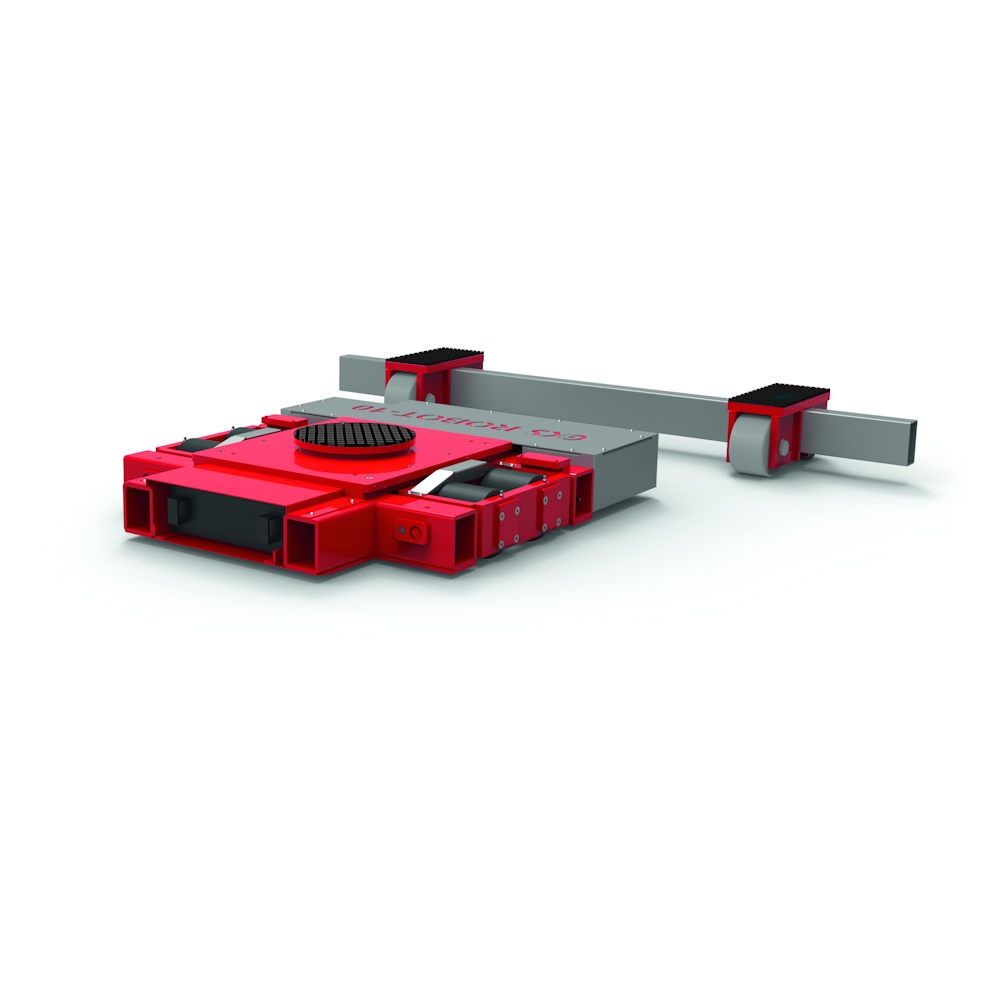

The transport system ROBOT-10
The ROBOT-10 transport system from GKS-PERFEKT is an outstanding battery-powered heavy-duty transport system designed for efficient and precise load transport in industrial environments. With a load capacity of up to 10 metric tons, the ROBOT-10 impresses with its outstanding performance.
Thanks to its remote-controlled operation , it allows for easy and safe navigation even in tight workspaces. The ROBOT-10’s compact design makes it extremely maneuverable and versatile.
Thanks to its high-performance battery, the ROBOT-10 is independent of external power sources, offering maximum mobility. The ROBOT-10 from GKS-PERFEKT combines power, precision, and reliability in an innovative transport system that significantly increases the efficiency of your in-house transport processes.
Discover a new dimension of load transport with the ROBOT-10!
ROBOT-10 Overview
- Features
-
- Depending on the load and the number of starts and stops, different operating times are possible
- For safety reasons, Li-Po cells (recyclable) are used, which pose no risk in the event of a malfunction
- Easy battery replacement thanks to the plug-in system, even under load
- Delivery includes a standard charger (10-hour charging time)
- Depending on the load and the number of starts and stops, different operating times are possible
- Technical Specifications
-
L-ROBOT-5 F-ROBOT-5 Item Number 14242 13806 Drive DC Motor (24V / 930W) - Battery Type Lithium-ion - Reverse Parking Sensor yes - Max. incline ** ±5% - Loading height in mm 180 180 Number of special load rollers 4 / 105 mm 4 / 85 mm External dimensions (L x W x H) in mm 992 x 842 x 180 - Contact surface in mm ø 250 135 x 280 Adjustable spacer bar in mm - 450–1,600 Load capacity in metric tons 5 5 Total Load Capacity F + L in metric tons 10 Total weight in kg 195,0 66,0 ** On inclines or declines, a suitable anti-rollaway device is required
- Description
- The drive power comes from a 24-volt lithium-polymer battery and is transmitted via a programmable motor controller to the two brushless DC motors, each with a maximum power of 930 watts.The torque is transmitted to the drive rollers via gearboxes and gear stages.The radio remote control transmits the operator's signals to the motor controller via a CAN bus, and the transmitter's display shows the current operating status.The entire system consists of a powered, steerable L-ROBOT and a non-powered, rigid F-ROBOT. It thus features a proven 3-point support configuration. The system operates at two travel speeds: 11 and 5.5 m/min.
- Informational Video and More
-
More information: ROBOT-10
Our ROBOTS in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Depending on the load and the number of starts and stops, different operating times are possible
- For safety reasons, Li-Po cells (recyclable) are used, which pose no risk in the event of a malfunction
- Easy battery replacement thanks to the plug-in system, even under load
- Delivery includes a standard charger (10-hour charging time)
| L-ROBOT-5 | F-ROBOT-5 | |
| Item Number | 14242 | 13806 |
| Drive | DC Motor (24V / 930W) | - |
| Battery Type | Lithium-ion | - |
| Reverse Parking Sensor | yes | - |
| Max. incline ** | ±5% | - |
| Loading height in mm | 180 | 180 |
| Number of special load rollers | 4 / 105 mm | 4 / 85 mm |
| External dimensions (L x W x H) in mm | 992 x 842 x 180 | - |
| Contact surface in mm | ø 250 | 135 x 280 |
| Adjustable spacer bar in mm | - | 450–1,600 |
| Load capacity in metric tons | 5 | 5 |
| Total Load Capacity F + L in metric tons | 10 | |
| Total weight in kg | 195,0 | 66,0 |
** On inclines or declines, a suitable anti-rollaway device is required
