PE2 Hydraulic Pump, Electric

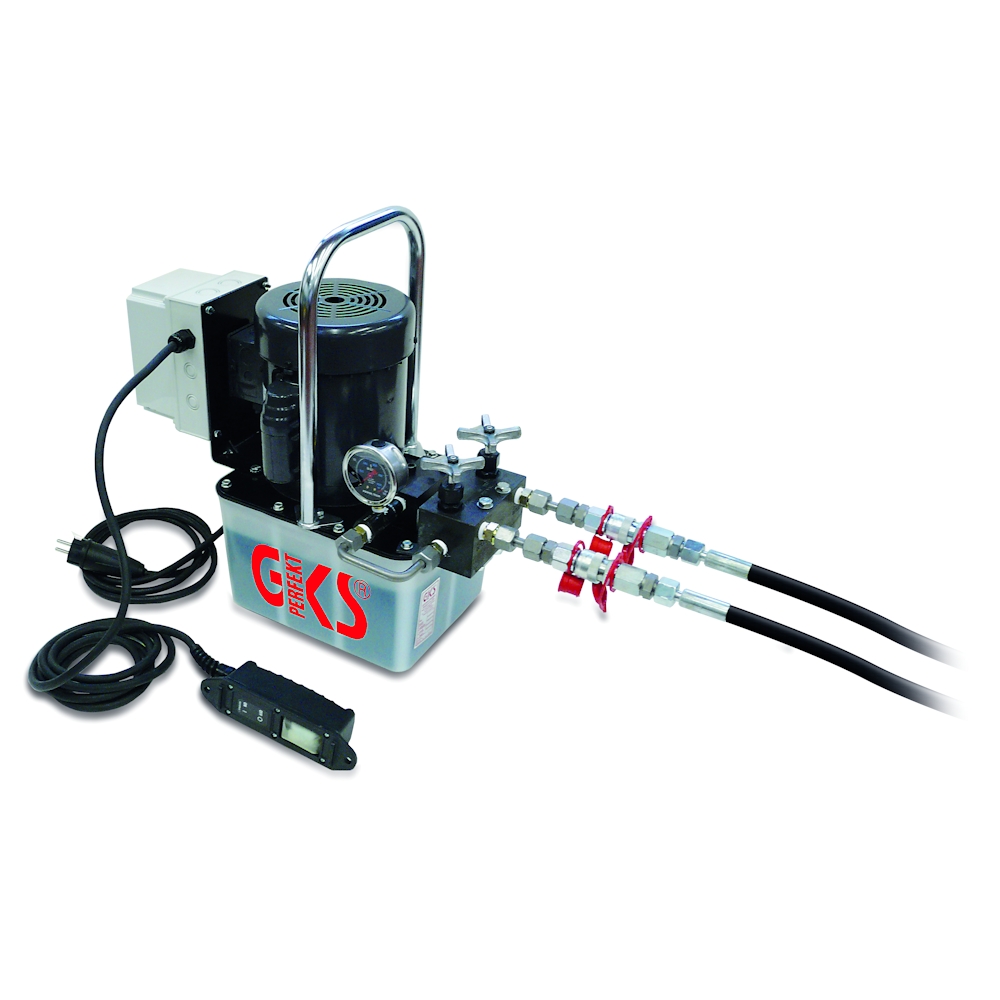

The PE2 hydraulic pump

The hydraulic pumps from GKS-PERFEKT are the perfect complement to our hydraulic toe jacks! They have proven their reliability worldwide for decades, are robust, and exceptionally durable. Every pump undergoes 100% inspection and testing prior to delivery. With the PE2, you receive an electric hydraulic pump that provides an efficient solution for lifting heavy loads with minimal effort, enabling precise lifting at the push of a button.

  • PE2 Features
    • Same as PE, plus a 2-way manifold with 2 couplings and 2 shut-off valves for precise lifting and lowering
  • PE2 Technical Specifications
  • Item Number13591
    Working pressure (default) in bar520
    First-stage flow rates per stroke in cm³/bar2.5 / 7
    Second-stage flow rates per stroke in cm³/bar
    		0.3 / 520
    Tank capacity* in l4,7
    External dimensions (L x W x H) in mm434 x 296 x 493
    Net weight with oil (without hoses) in kg36,0
    Hose (3 m), quick-connect fitting2
    For GKS Lifting Types2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, V30-EX

    * Optional 9.5-liter tank

  • Information

  • More information: PE2 Electric Hydraulic Pump

    Real-world application examples... see here

    An exploded view of the lifter... is just a click away
