Transport trolley F40-L40
40 / 80 metric tons
The transport trolley F40-L40

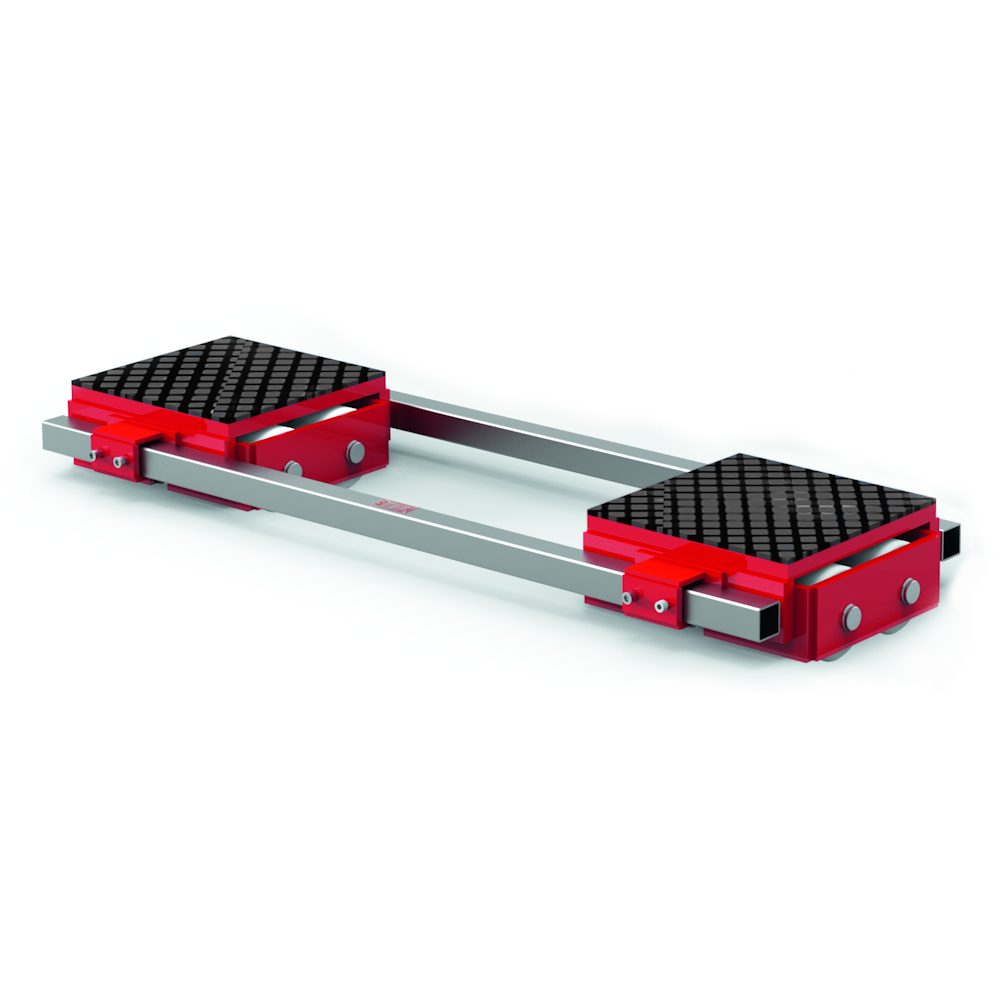

The F40-L40 transport trolley from GKS is a robust and distortion-free welded construction. The trolley cassettes of this transport trolley guarantee high stability. The wheels stand out for their extremely low rolling resistance and low dead weight. The contact surfaces of the cassettes are equipped with non-slip checker rubber.
The transport trolley meets the highest quality standards. GKS-PERFEKT transport trolleys have been proven worldwide for decades, offering robust and exceptional durability. The F40 - L40 transport trolley is 100% inspected and tested before delivery. You receive a universally applicable Transport trolley that can truly be used anywhere, whether in the workshop, plant, or production facility.

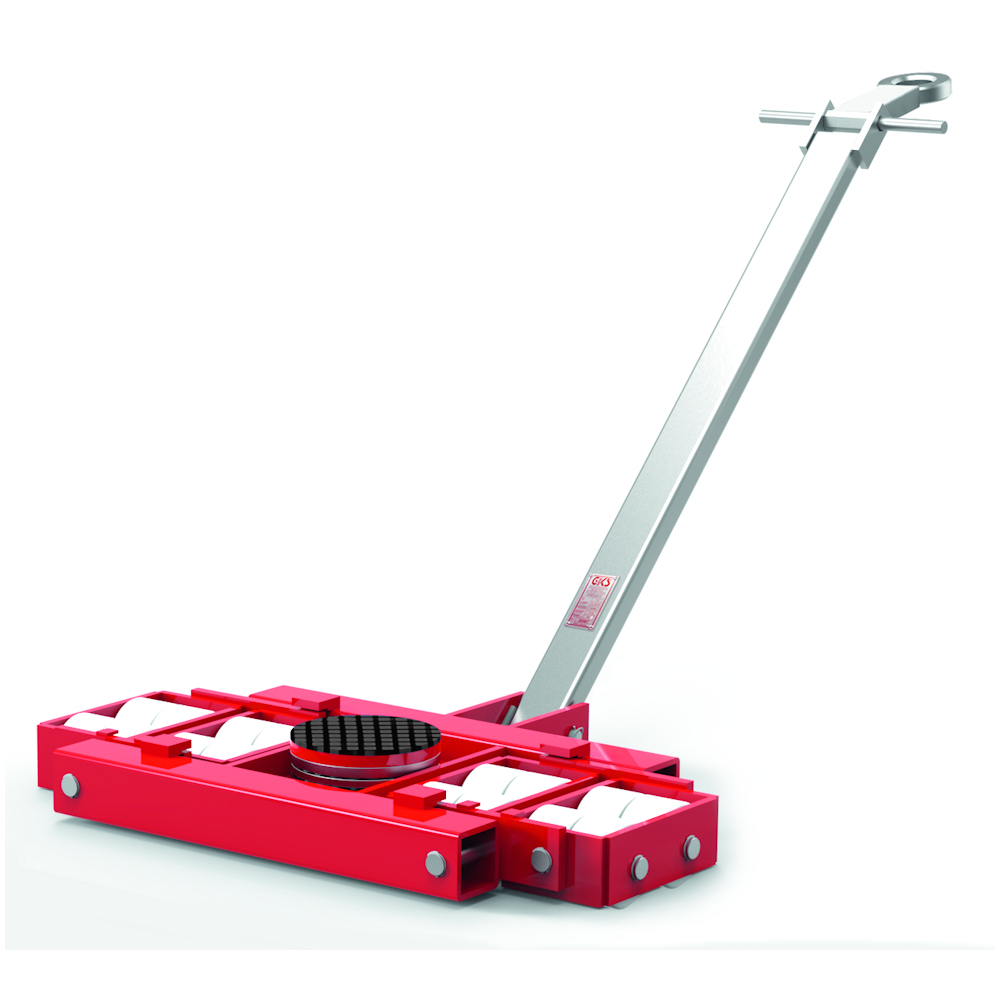

The set, consisting of the steerable transport trolley L40 and the fixed transport trolley F40, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 80 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features of the F40-L40
-
- Sturdy construction
- Installation height: 180 mm
- All transport trolleys models, from F20 / L20 to F60 / L60, can be combined with one another
- Two connecting rods for greater stability
- Technical Specifications for the F40-L40
-
F40 L40 Item Number 11770 11771 Loading height in mm 180 180 Number of wheels (85 x 85 / 140 x 85) 16 16 Contact surface per cartridge in mm 370 x 370 - Connecting bar in mm - - Swivel plate Ø / steering angle - 250 / ± 90° Steering rod in mm - 1620 Overall dimensions (L x W) in mm - 1024 x 855 Net weight in kg 190,4 246,3 Load capacity in metric tons 40 40 Total Load Capacity F40 / L40 80 metric tons - Informational Video and More
-
More information: transport trolleys F40-L40
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Installation height: 180 mm
- All transport trolleys models, from F20 / L20 to F60 / L60, can be combined with one another
- Two connecting rods for greater stability
| F40 | L40 | |
| Item Number | 11770 | 11771 |
| Loading height in mm | 180 | 180 |
| Number of wheels (85 x 85 / 140 x 85) | 16 | 16 |
| Contact surface per cartridge in mm | 370 x 370 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 250 / ± 90° |
| Steering rod in mm | - | 1620 |
| Overall dimensions (L x W) in mm | - | 1024 x 855 |
| Net weight in kg | 190,4 | 246,3 |
| Load capacity in metric tons | 40 | 40 |
| Total Load Capacity F40 / L40 | 80 | metric tons |
