Hydraulic toe jack
G5 - 5 tons

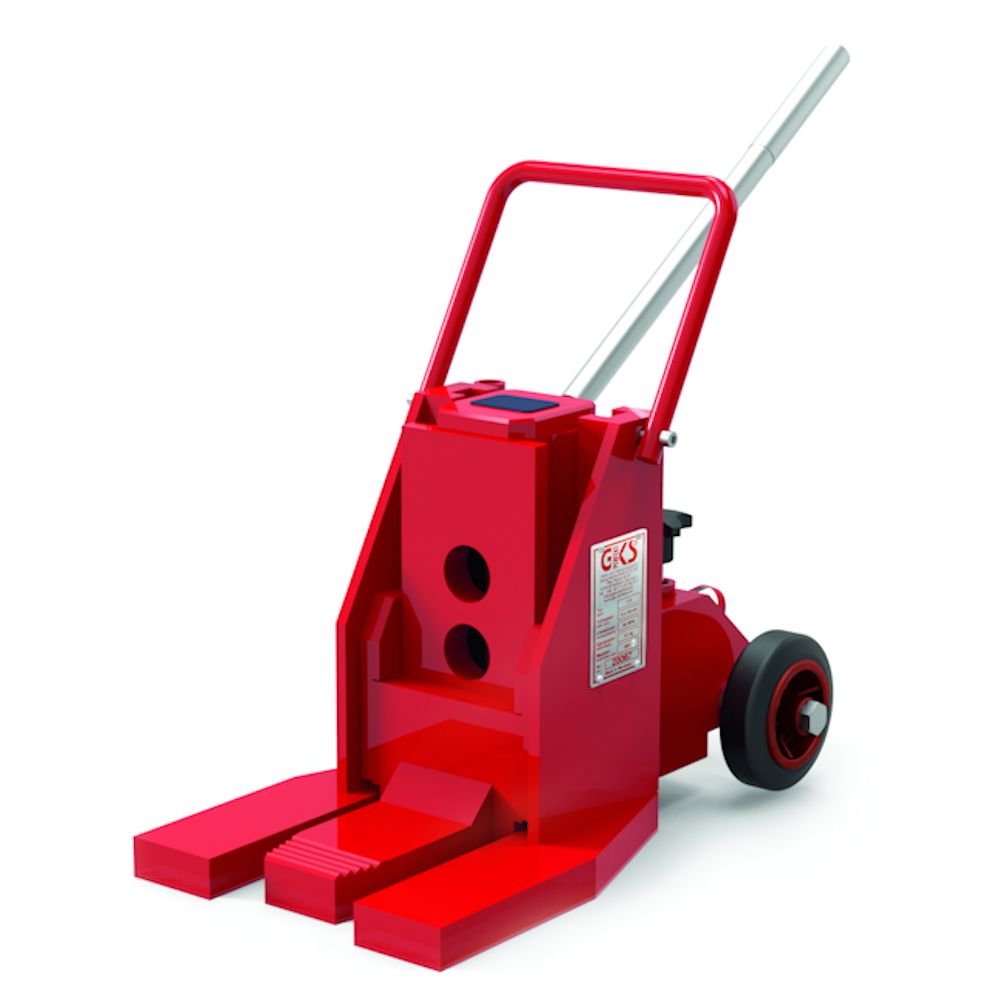

The toe jack G5
The toe jack G5 was specifically designed for the maintenance of forklifts and other industrial vehicles. Sturdy feet and an extended, grooved safety strap give the hydraulic toe jack the stability that is crucial when lifting vehicles weighing 5 metric tons —the grooves prevent the load from slipping. The 3-way adjustable strap starts at 30 mm and lifts the forklift by up to 140 mm, for tasks such as tire changes, axle maintenance, or brake service. A safety valve protects against overload, and the integrated pump allows the G5 to be used independently anywhere. 100% tested before shipment: the workshop professional from GKS-PERFEKT, theoriginal “Made in Germany.”
G5 Features
- Specifically designed for the maintenance of forklifts and other industrial vehicles
- Optimal stability thanks to sturdy feet and an extended safety tab with grooves
- Equal load capacity on the head plate and the tab (5 metric tons).
G5 Technical Specifications
| Item Number | 10189 |
| Total load capacity in metric tons | 5 |
| Working pressure in bar | 520 |
| Minimum loading height using safety toe | 30 |
| Lifting height (mm) | 140 |
| Adjustability of the safety toe | 3-way |
| Loading height using top plate in mm | 265 |
| External dimensions (L x W x H) | 397 x 255 x 265 |
| Net weight with oil, in kg | 33,6 |
G5 - The Facts
- Precise lowering by opening the drain plug
- 3-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
- CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
- Modular design for easy maintenance
- High-quality materials, expertly crafted
- Sturdy and durable
- Cost-effective operation and easy maintenance
- Precision Guides
