rotating transport trolley RL4
4 metric tons

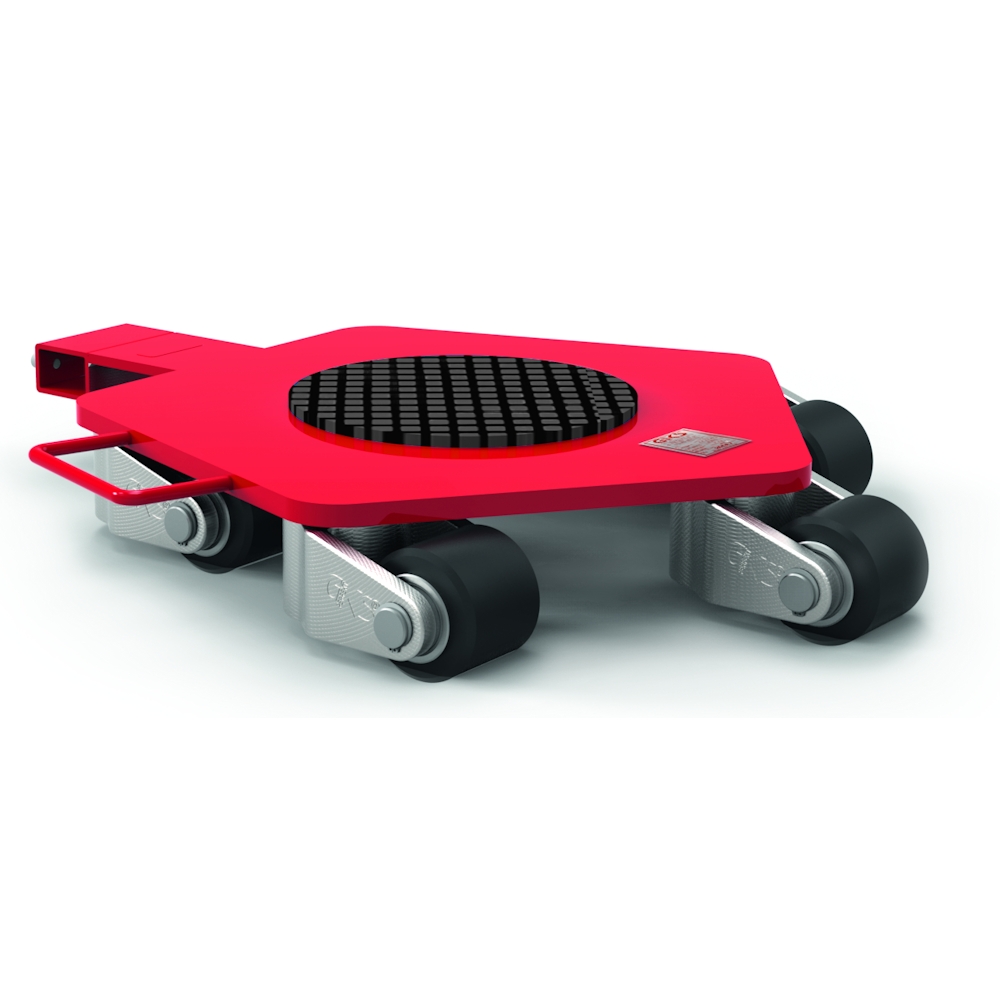

The rotating transport trolley RL4
When machines or other heavy equipment need to be moved, the rotating transport trolley RL4 is the best choice. It’s easy to operate and can handle loads of up to 4 metric tons. For easy and safe in-plant transport of heavy loads.
The rotating transport trolley stands out for its exceptional stability and premium quality. It can rotate 360° on the spot, making it ideal for moving heavy loads in the tightest of spaces . Thanks to its low-profile design, the rotating transport trolley can be easily positioned under the load. Its ability to rotate makes it easier to secure and align the load.
- Features of the RL4
-
- rotating transport trolleys can also be combined with F or TL chassis of the same height
The rotating transport trolley RL4 is also available in a nickel-plated version for use in cleanrooms. It is ideal for meeting the requirements of cleanrooms, such as those in chip manufacturing, the food, pharmaceutical, and chemical industries. The technical specifications are the same as those of the standard models.
- rotating transport trolleys can also be combined with F or TL chassis of the same height
- Technical Specifications for the RL4
-
Item Number 10240 Total load capacity in metric tons 4 Loading height in mm 110 Number of wheels 5 Dimensions of the wheels in mm 85 x 85 Overall dimensions (L x W x H) in mm 667 x 512 x 110 Total weight in kg 50 - Informational Video and More
-
More information: rotating transport trolley RL4
Our " rotating transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the landing gear... is just a click away
- rotating transport trolleys can also be combined with F or TL chassis of the same height
The rotating transport trolley RL4 is also available in a nickel-plated version for use in cleanrooms. It is ideal for meeting the requirements of cleanrooms, such as those in chip manufacturing, the food, pharmaceutical, and chemical industries. The technical specifications are the same as those of the standard models.
| Item Number | 10240 |
| Total load capacity in metric tons | 4 |
| Loading height in mm | 110 |
| Number of wheels | 5 |
| Dimensions of the wheels in mm | 85 x 85 |
| Overall dimensions (L x W x H) in mm | 667 x 512 x 110 |
| Total weight in kg | 50 |
