Container transport trolley F20-c_TL20-c
20 / 40 metric tons

The container transport trolley F20-c_TL20-c

The GKS F20-c_TL20-c container-transport trolley is a robust and warp-free welded construction. The chassis cassettes of this transport trolleys guarantee high stability. The wheels stand out for their extremely low rolling resistance and light weight. The contact surfaces of the cassettes are equipped with non-slip waffle-patterned rubber.

The transport trolley meets the highest quality standards. GKS-PERFEKT transport trolleys have been proven worldwide for decades, are robust, and exceptionally durable. The F20-c / TL20-c transport trolley undergoes 100% inspection and testing prior to delivery. You receive a heavy-duty transport trolley specifically developed for transporting containers with twist-lock mechanisms, which can be deployed virtually anywhere, whether outdoors or in-plant.

​

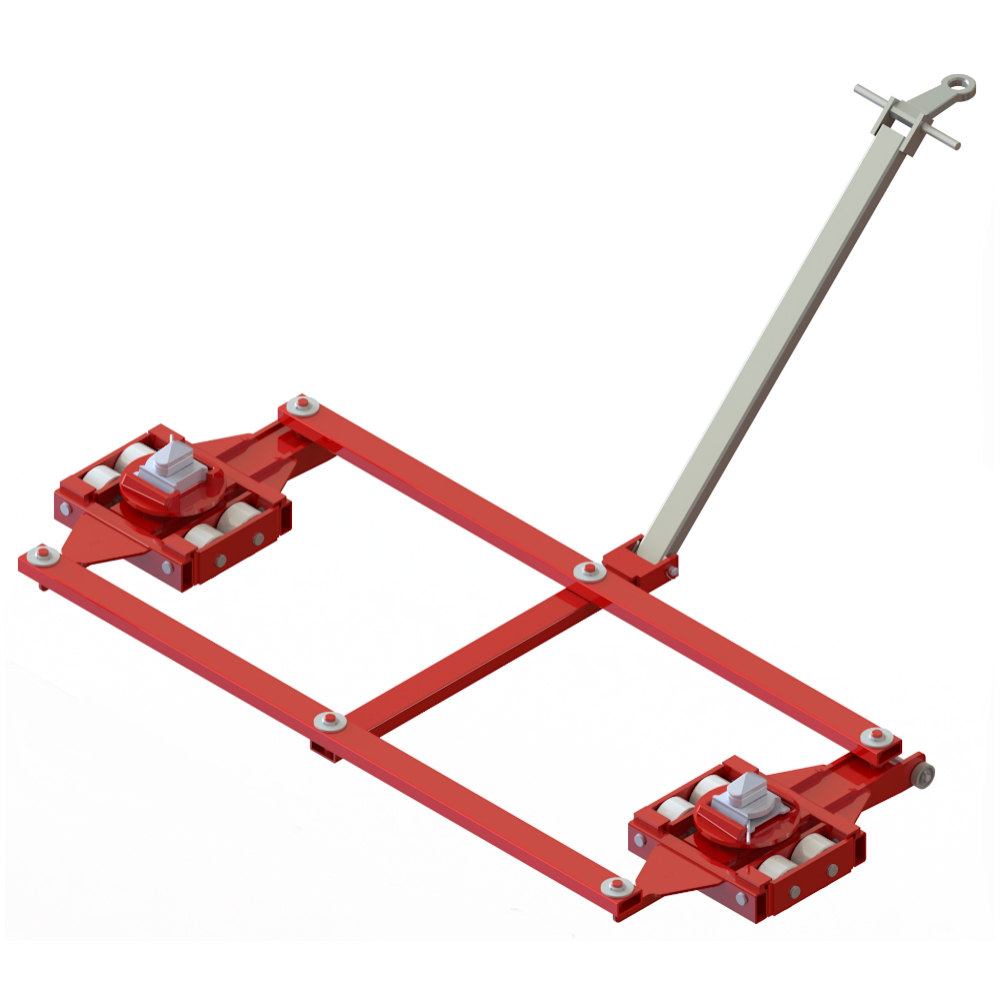

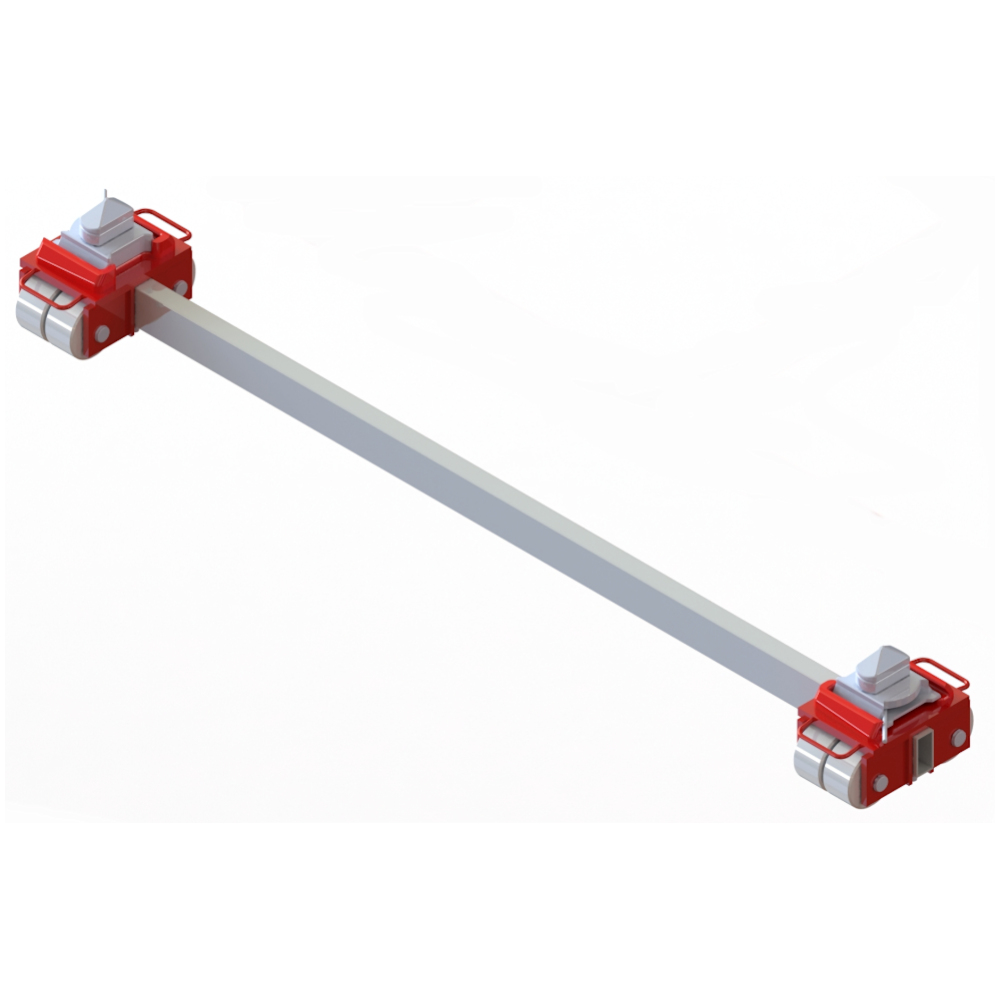

The set, consisting of the steerable transport trolley L20-c and the fixed transport trolley F20-c, offers a perfect solution for safe transport thanks to the 4-point support system.

The total load capacity of the set is 40 metric tons.

  • Tandem-transport trolley Set with 4 contact points for quick and secure connection of trailers and ISO containers with twist-lock mechanism
  • Very low installation height

F20-cTL20-c
Item Number1329313294
Loading height in mm255255
Quantity wheels (140 x 85)88
Track Width / Twist Lock22592259
Net weight in kg140,0345,0
Load capacity in metric tons2020
Total Load Capacity F20-c / TL20-c40metric tons

More information: transport trolleys F20-c / TL20-c

Our " transport trolleys " in action... click here to watch the video

​Real-world application examples... see here

An exploded view of the transport trolleys... is just a click away


Photo of the " wheels," which is equipped with the " transport trolley ."
