Hydraulic toe jack
V5KK-EX - 5 tons

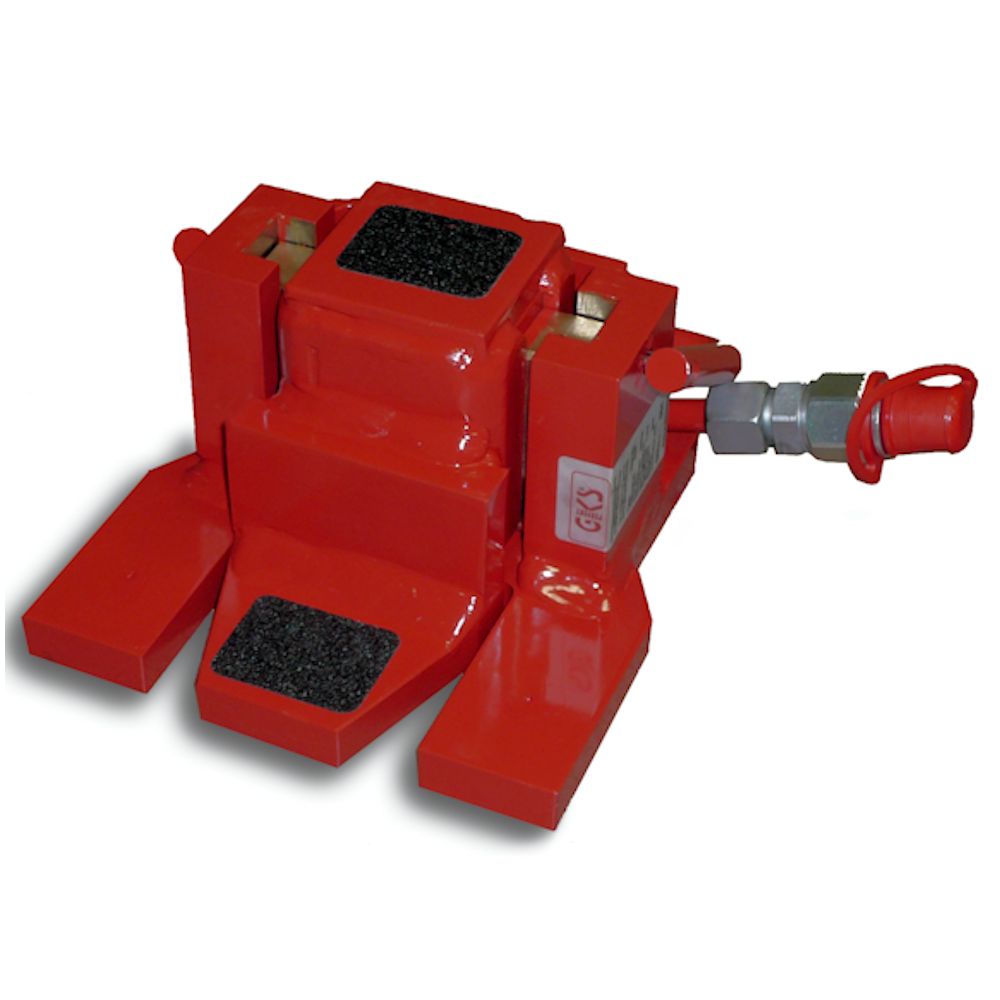

The toe jack V5KK-EX

Only 97 mm high, weighing just 7.4 kg—yet capable of a full load capacity of 5 metric tons (50 kN): The V5KK-EX is the extra-low-profile toe jack for loads with minimal clearance. The V5KK-EX reliably lifts low-profile machines with sheet metal enclosures—where conventional jacks cannot be positioned—starting at a clearance height of just 15 mm. The compact toe jack is operated via a PV-K hand pump with a hydraulic hose and quick-connect coupling—allowing you to work even in hard-to-reach areas while maintaining a safe distance from the load. The bolted slide guide minimizes wear, and components can be easily replaced. The specialist among GKS jacks—theoriginal, made in Germany.

Features of the V5KK-EX

  • Extremely low profile (97 mm) – specially designed for machines with fairings
  • Compact dimensions and low weight with a full load capacity of 50 kN
  • Operated using a PV-K type hand pump (up to two jacks) with a hydraulic hose and quick-connect coupling—lifting in hard-to-reach areas and from a safe distance
  • Screw-type slide guide: low wear, components are easy to replace
  • Without its own hydraulic system
  • Equal load capacity on the head plate and the tab: 5 metric tons

    • Technical Specifications for the V5KK-EX

    Item Number 13701
    Total load capacity in metric tons 5
    Working pressure in bar 520
    Minimum loading height using safety toe 15
    Lifting height (mm) 30
    Max. lifting height
    		45
    Loading height using top plate in mm 97
    External dimensions (L x W x H) 160 x 164 x 97
    Net weight in kg 7,4

    V5KK-EX - The Facts

    • Precise lowering by opening the drain plug
    • Extremely low profile—ideal for machines with fairings and minimal ground clearance
    • The best choice when, for occupational safety reasons, lifting directly from the load is not permitted
    • CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
    • Modular design for easy maintenance
    • High-quality materials, expertly crafted
    • Sturdy and durable
    • Cost-effective operation and easy maintenance, precision guides
