PV-K Hydraulic Pump, Manual

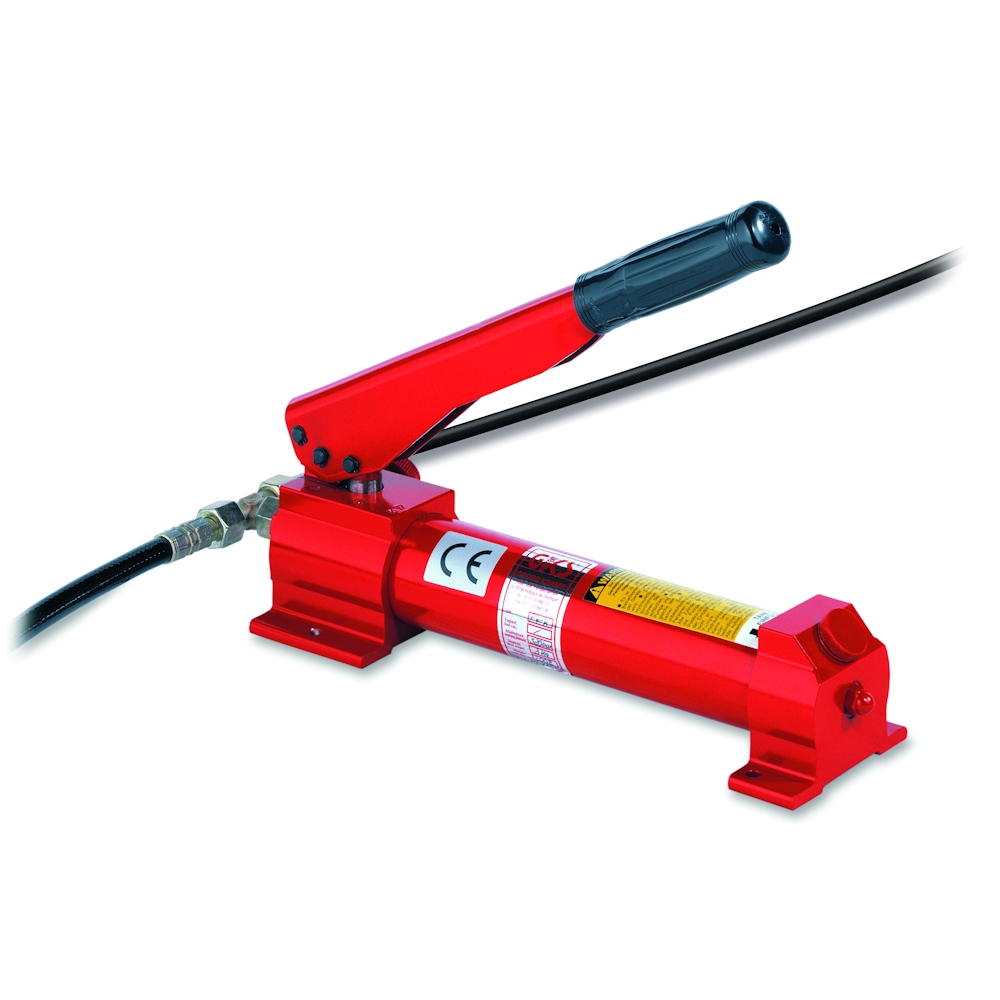

The PV-K hydraulic pump
The hydraulic pumps from GKS-PERFEKT are the perfect complement to our hydraulic toe jacks! They have been proven worldwide for decades, are robust, and exceptionally durable. Every pump undergoes 100% quality control and testing prior to delivery. With the PV-K, you receive a manual hydraulic pump that can truly be used anywhere, whether in operation, in the workshop, outdoors, or in production.
- Features of PV-K
-
- Standard model with 2 x 2 m hoses featuring drip-free quick-connect fittings
- Options: Pressure gauge, shut-off valve, and longer hoses
- Standard model with 2 x 2 m hoses featuring drip-free quick-connect fittings
- Technical Specifications for PV-K
-
Item Number 10197 Working pressure (default) in bar 520 First-stage flow rates per stroke in cm³/bar 5 / 30 Second-stage flow rates per stroke in cm³/bar 1.2 / 30 Tank capacity in l 0,33 External dimensions (L x W x H) in mm 418 x 111 x 123 Net weight with oil (without hoses) in kg 4,5 Hose (2 m), quick-connect fitting 2 For GKS Lifting Types 2 each of V5K-EX, V5KK-EX, V10K-EX, - Information
-
More information: PV Manual Hydraulic Pump
Real-world application examples... see here
An exploded view of the lifter... is just a click away
- Standard model with 2 x 2 m hoses featuring drip-free quick-connect fittings
- Options: Pressure gauge, shut-off valve, and longer hoses
| Item Number | 10197 |
| Working pressure (default) in bar | 520 |
| First-stage flow rates per stroke in cm³/bar | 5 / 30 |
| Second-stage flow rates per stroke in cm³/bar | 1.2 / 30 |
| Tank capacity in l | 0,33 |
| External dimensions (L x W x H) in mm | 418 x 111 x 123 |
| Net weight with oil (without hoses) in kg | 4,5 |
| Hose (2 m), quick-connect fitting | 2 |
| For GKS Lifting Types | 2 each of V5K-EX, V5KK-EX, V10K-EX, |
