Hydraulic toe jack
V30-EX - 30 tons

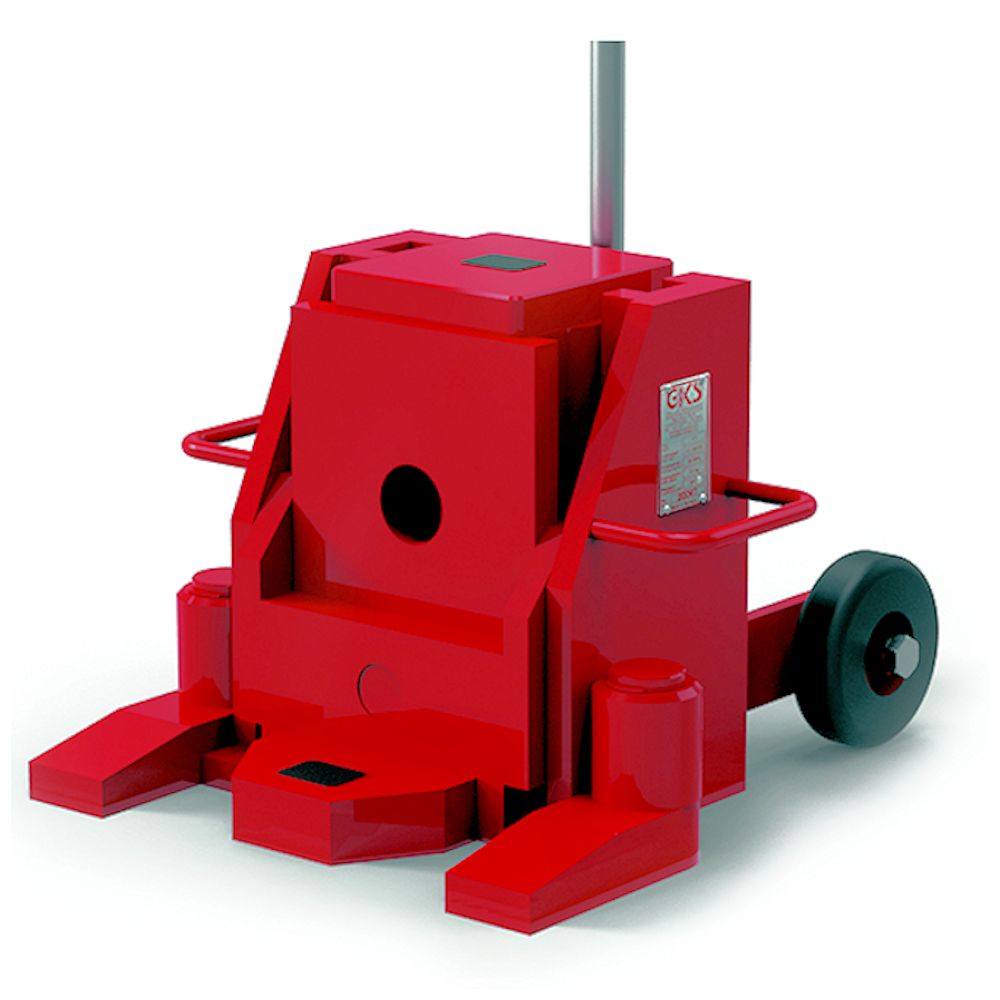

The toe jack V30-EX

The V30-EX is the most powerful toe jack in the GKS product line: 30 metric tons of full-load capacity for lifting the heaviest machines, presses, and equipment. The toe jack is pressurized via an external PV hand pump or PE electric pump—allowing the operator to maintain a safe distance from the load. The 2-way adjustable, forged safety shackle grips the load starting at 40 mm, with a stroke of 156 mm. Despite its performance class, the V30-EX remains mobile thanks to its “ wheels ” and can be positioned in a way that is easy on the back. When used in combination with multiple lifters and a synchronous pressure unit, even large machines can be lifted in a controlled and uniform manner. 100% tested, proven over decades: heavy-duty lifting technology made in Germany.

Features of the V30-EX

  • Ideal for hard-to-reach areas and when a safe distance is required
  • Operated using a PV hand pump (up to two toe jacks) or a PE electric pump (up to four toe jacks)
  • Without its own hydraulic system
  • Equal load capacity on the head plate and tab: 30 metric tons
  • Can be combined with a synchronous lifting mechanism —for synchronous lifting at multiple points

    • Technical Specifications for the V30-EX

    Item Number 11140
    Total load capacity in metric tons 30
    Working pressure in bar 430
    Minimum loading height using safety toe 40
    Lifting height (mm) 156
    Adjustability of the safety toe 2-way
    Loading height using top plate in mm 330
    External dimensions (L x W x H) 454 x 400 x 330
    Net weight with oil, in kg 110,8

    V30-EX - The Facts

    • Precise lowering by opening the drain plug
    • 2-position height-adjustable safety lever hinge with a high safety margin (forged from high-strength, heat-treated material)
    • With " wheels " for easy handling—back-friendly transport by tilting onto the lifter's " wheels "
    • CE mark, DGUV Regulation 54 (Germany), ANSI/ASME (U.S.), with EC Declaration of Conformity
    • Modular design for easy maintenance
    • High-quality materials, expertly crafted
    • Sturdy and durable
    • Cost-effective operation and easy maintenance, precision guides
