PE Hydraulic Pump, Electric

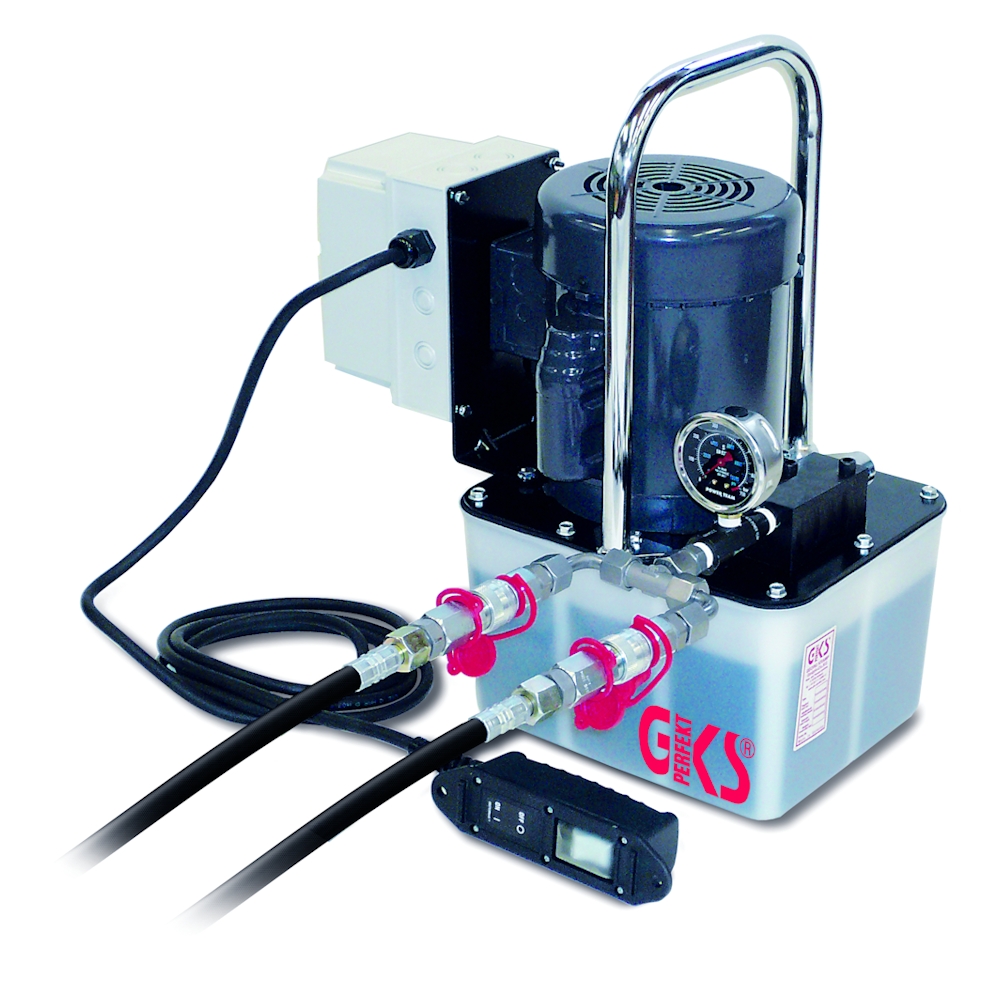

The PE hydraulic pump
GKS-PERFEKT's hydraulic pumps perfectly our hydraulic toe jacks perfectly! They have been decades , robust, and exceptionally durable. The pump is 100% inspected and tested before shipment. With the PE, you get a electric hydraulic pump that offers an efficient solution for lifting heavy loads with minimal effort and enables precise lifting at the push of a button.
- Characteristics of PE
-
- Standard configuration includes a remote control, pressure gauge, 2/2-way valve for single-acting cylinders, and 2x3 m hoses with drip-free quick-connect fittings on both ends
- Standard configuration includes a remote control, pressure gauge, 2/2-way valve for single-acting cylinders, and 2x3 m hoses with drip-free quick-connect fittings on both ends
- PE Technical Specifications
-
Item Number 10199 Working pressure (default) in bar 520 First-stage flow rates per stroke in cm³/bar 2.5 / 7 Second-stage flow rates per stroke in cm³/bar 0.3 / 520 Tank capacity* in l 4,7 External dimensions (L x W x H) in mm 286 x 237 x 493 Net weight with oil (without hoses) in kg 30 Hose (3 m), quick-connect fitting 2 For GKS Lifting Types 2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, V30-EX * Optional 9.5-liter tank
- Information
-
More information: PE Electric Hydraulic Pump
Real-world application examples... see here
An exploded view of the lifter... is just a click away
- Standard configuration includes a remote control, pressure gauge, 2/2-way valve for single-acting cylinders, and 2x3 m hoses with drip-free quick-connect fittings on both ends
| Item Number | 10199 |
| Working pressure (default) in bar | 520 |
| First-stage flow rates per stroke in cm³/bar | 2.5 / 7 |
| Second-stage flow rates per stroke in cm³/bar | 0.3 / 520 |
| Tank capacity* in l | 4,7 |
| External dimensions (L x W x H) in mm | 286 x 237 x 493 |
| Net weight with oil (without hoses) in kg | 30 |
| Hose (3 m), quick-connect fitting | 2 |
| For GKS Lifting Types | 2 x V5, V5-EX, V5K-EX, G5, V10, V10K, V10-EX, V15, V20, V30-EX |
* Optional 9.5-liter tank
More information: PE Electric Hydraulic Pump
Real-world application examples... see here
An exploded view of the lifter... is just a click away
