transport trolley F12-L12
12 / 24 metric tons
The transport trolley F12-L12
The F12-L12 transport trolley from GKS is a robust and warp-resistant welded construction. The trolley cassettes of this transport trolley guarantee high stability. The wheels score points with extremely low rolling resistance and dead weight. The contact surfaces of the cassettes are equipped with non-slip waffle rubber.
The transport trolley meets the highest quality standards. GKS-PERFEKT transport trolleys have been proven worldwide for decades, offering robust and exceptionally long-lasting performance. The F12 - L12 transport trolley is 100% inspected and tested prior to delivery. You receive a versatile transport trolley that can truly be used anywhere, whether in the workshop, plant, or production facility.

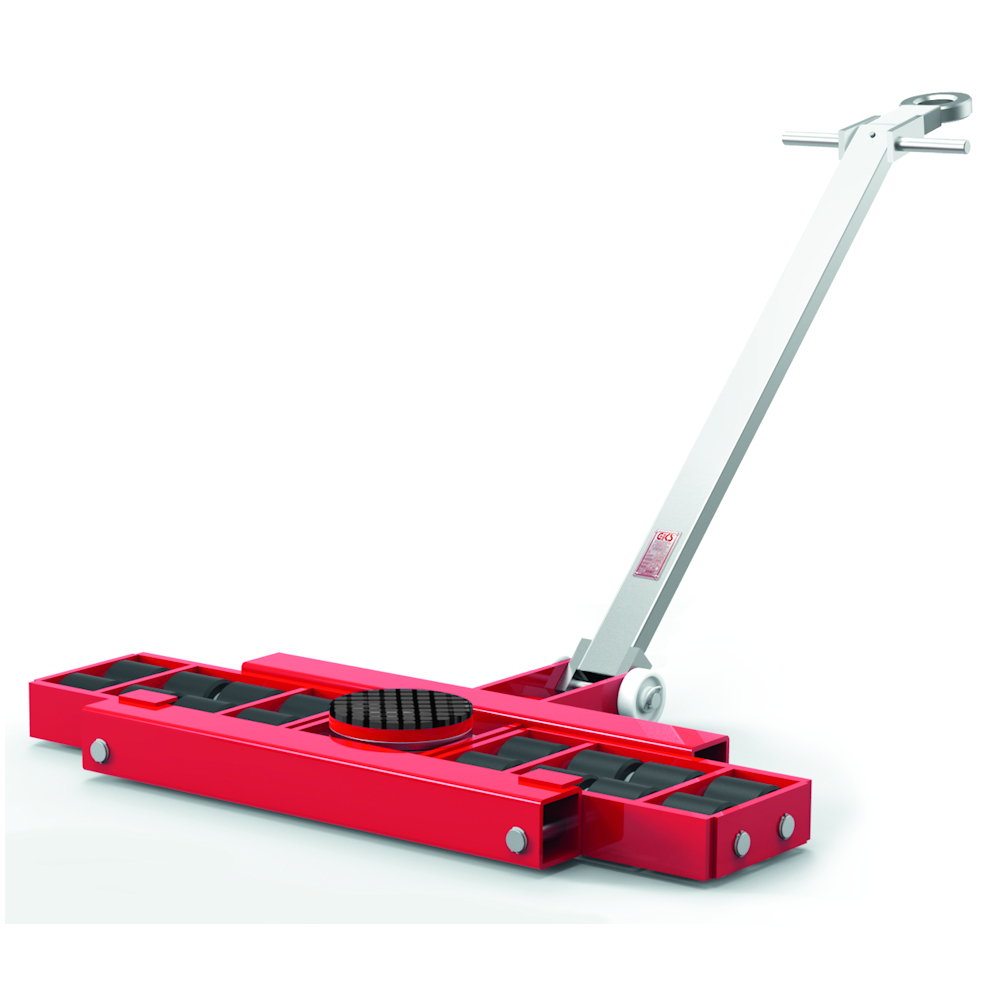

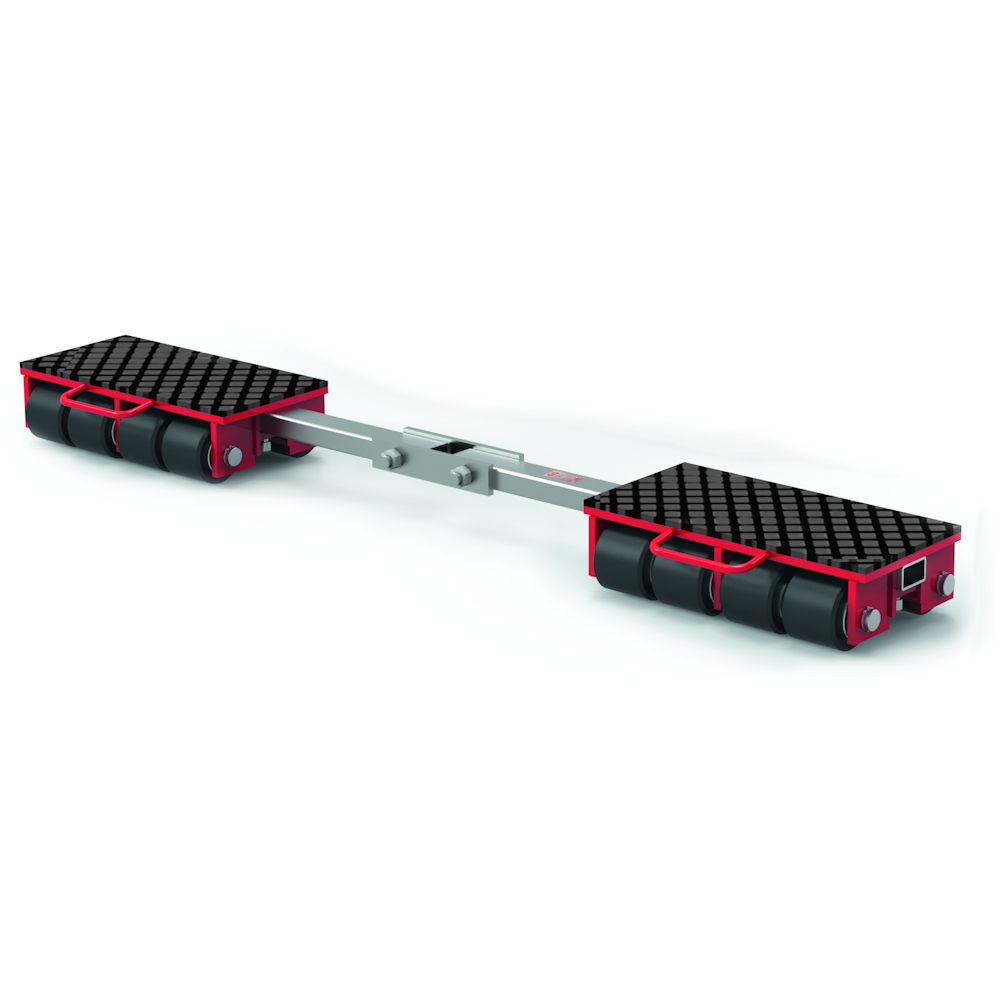

The set, consisting of the steerable transport trolley L12 and the fixed transport trolley F12, offers a perfect solution for safe transport thanks to the 3-point support.
The total load capacity of the set is 24 metric tons.
This set is also available nickel-plated for use in cleanrooms.
- Features of the F12-L12
-
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
Can be combined with the TL6 / TL12 tandem undercarriages or the RL2 / 4 / 6 rotary undercarriages
Tow bars made of exceptionally durable materials
- Sturdy construction
- Technical Specifications for the F12-L12
-
F12 L12 Item Number 10312 10313 Loading height in mm 110 110 Number of wheels (85 x 85) 16 16 Contact surface per cartridge in mm 200 x 407 - Connecting bar in mm - - Swivel plate Ø / steering angle - 170 / ± 90° Steering rod in mm - 1080 Overall dimensions (L x W) in mm - 1030 x 620 Net weight in kg 55,0 88,8 Load capacity in metric tons 12 12 Total Load Capacity F12 / L12 24 metric tons - Informational Video and More
-
More information: transport trolleys F12-L12
Our " transport trolleys " in action... click here to watch the video
Real-world application examples... see here
An exploded view of the transport trolleys... is just a click away
- Sturdy construction
- Very low installation height: 110 mm
- All transport trolleys with the same installation height can be combined with one another
Can be combined with the TL6 / TL12 tandem undercarriages or the RL2 / 4 / 6 rotary undercarriages
Tow bars made of exceptionally durable materials
| F12 | L12 | |
| Item Number | 10312 | 10313 |
| Loading height in mm | 110 | 110 |
| Number of wheels (85 x 85) | 16 | 16 |
| Contact surface per cartridge in mm | 200 x 407 | - |
| Connecting bar in mm | - | - |
| Swivel plate Ø / steering angle | - | 170 / ± 90° |
| Steering rod in mm | - | 1080 |
| Overall dimensions (L x W) in mm | - | 1030 x 620 |
| Net weight in kg | 55,0 | 88,8 |
| Load capacity in metric tons | 12 | 12 |
| Total Load Capacity F12 / L12 | 24 | metric tons |
