Quadro 60 synchronous pumping unit

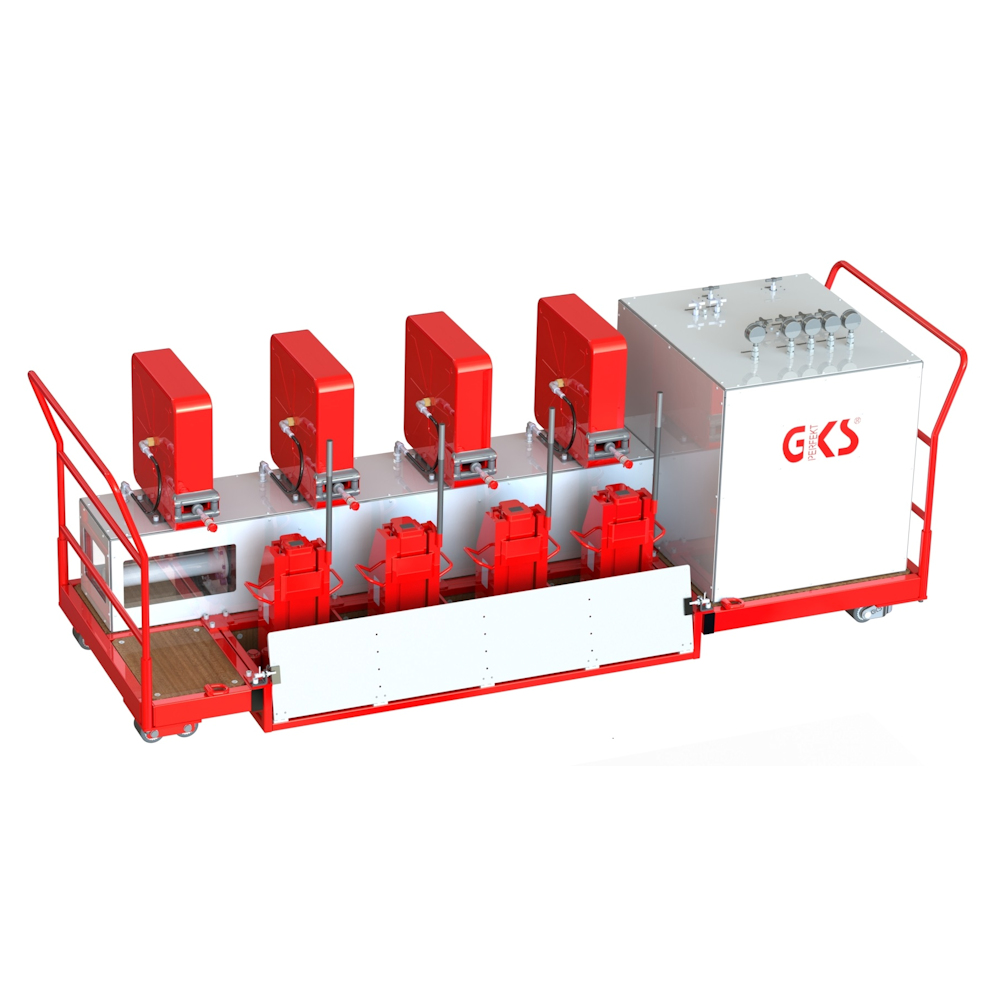

The Quadro 60 synchronous pumping unit

With the synchronous hydraulic power pack, loads can be lifted and lowered synchronously, quickly, and easily, even with uneven load distribution. The Quadro 60 synchronous hydraulic power pack is designed for four standard toe jacks up to max. type V15 / V15EX, resulting in a total lifting capacity of up to 60 tons.


For different approach heights, the toe jacks s can be adjusted individually to the desired position using the control panel and then raised synchronously .


It is operated via an remote-controlled electric pump. The connections to the lifting devices are made via 8-meter hose lines, which are wound onto four hose reels with automatic retraction.

  • Features of the Quadro 60


    • With heavy-duty transport carts

    • Automatic Hose Reels

    • 4 x 8 m hose length

    • Custom lengths are available
  • Quadro 60 Technical Specifications
  • Item Number*13826
    Max. load capacity in metric tons**60
    Working pressure in bar520
    Hydraulic Unit***PE Electric Pump
    Hose Connection****4 x 8 m
    Dimensions (L x W x H) in mm2000 x 800 x 1480
    Compatible with 4 lifting devices eachFor GKS-toe jacks , V5 through V15, and V5-EX through V15-EX
    Total weight in kg*****400


    * toe jacks are not included

    ** Depending on the size of the hoist

    *** Other pump sizes are available

    **** Custom lengths available upon request, depending on the hose connection, coupling, and quick-release fastener

    ***** Depends on accessories / lifting equipment
