transport trolley TL6
6 metric tons

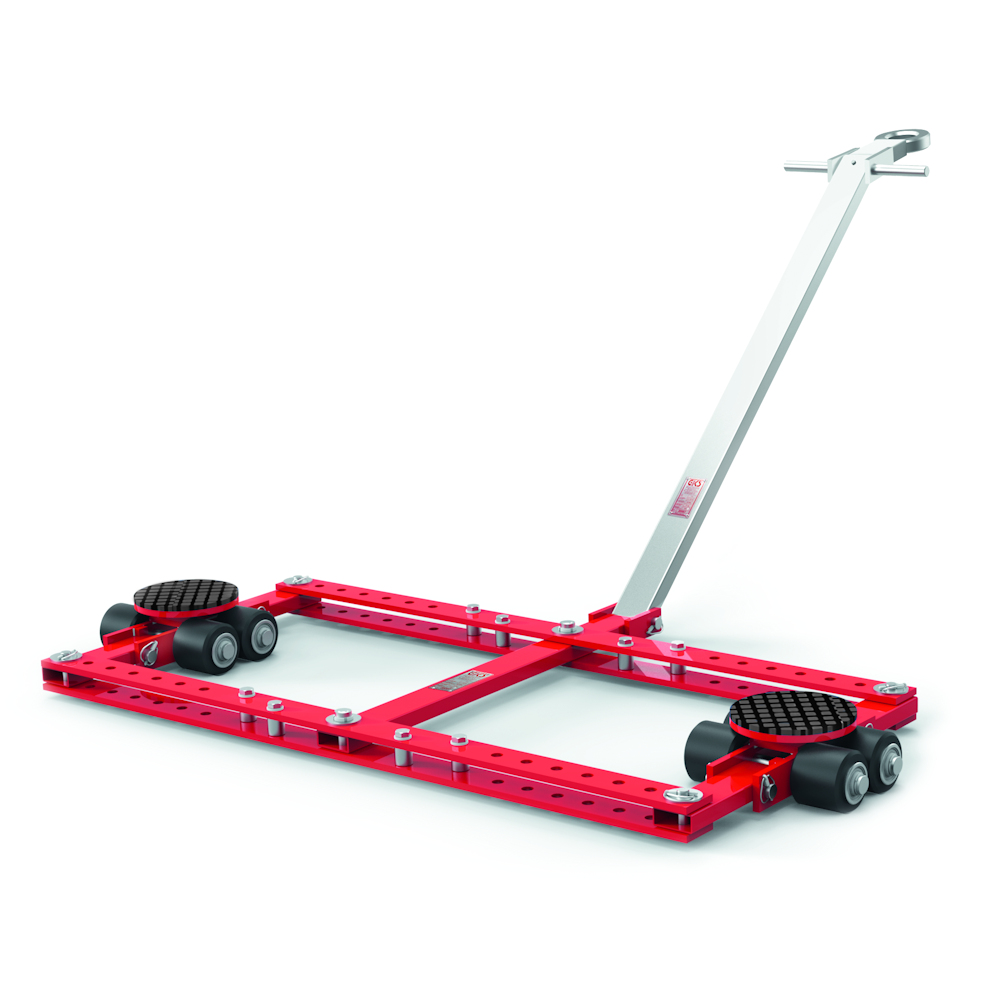

The transport trolley TL6

The GKS TL6 tandemtransport trolley is a sturdy, warp-free welded construction. The wheel assemblies of this chassis guarantee high stability. The wheels stand out for their extremely low rolling resistance and lightweight design. The contact surfaces of the wheel assemblies are equipped with non-slip waffle-pattern rubber.

transport trolley meets the highest quality standards. GKS-PERFEKT’s transport trolleys have been decades proven worldwide, robust, and exceptionally durable. The transport trolley TL6 is 100% inspected and tested before shipment. You’ll receive a universally applicable heavy-dutytransport trolley rated for a 6-metric-ton load that can truly be used anywhere—whether in the workshop, on the factory floor, or in production.

  • Sturdy construction
  • Ideal for loads that require a 4-point support
  • Can be combined with F-series chassis of the same height

TL6
Item Number10229
Loading height in mm110
Number of wheels (85 x 85)8
Swivel plate Ø / steering angle
170 / ± 50
Adjustable in mm550–1150, 7-speed
Handlebar with tow eye in mm960
Net weight in kg57,6
Load capacity in metric tons6

More information: Tandem-transport trolley TL6
